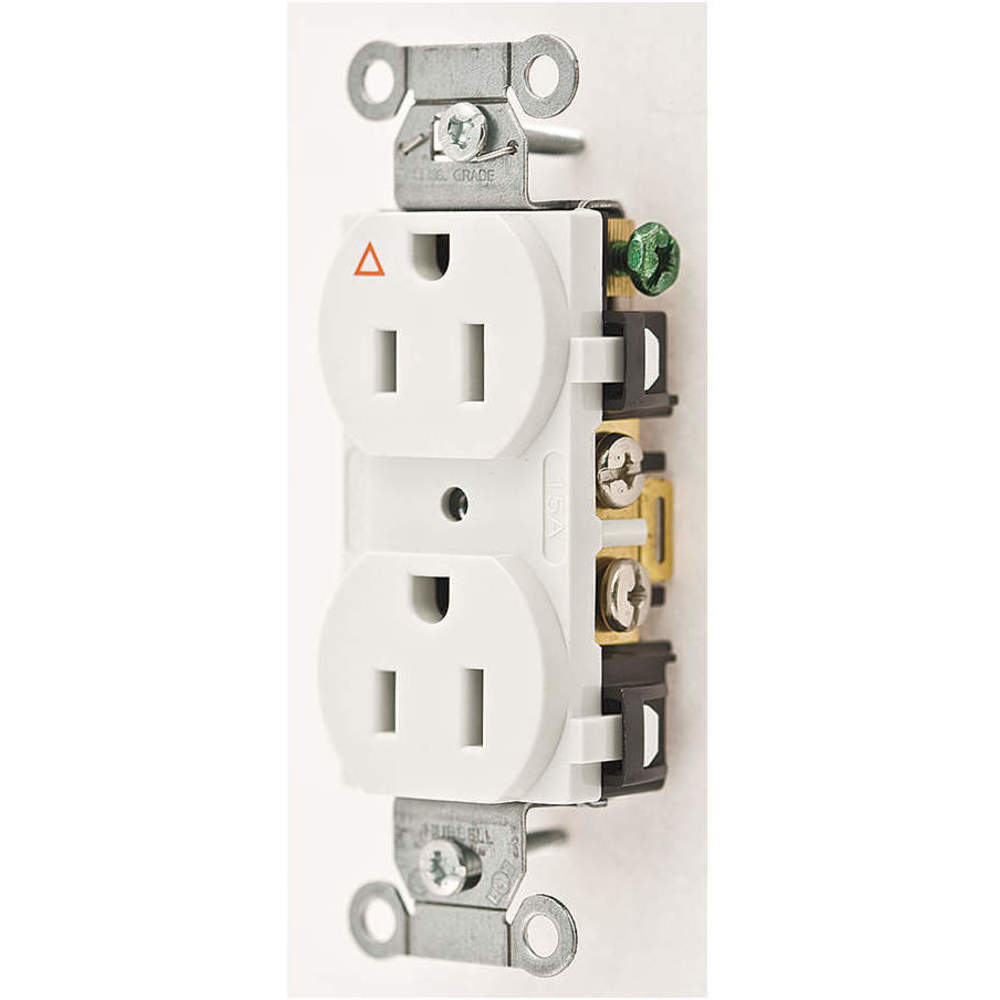

| Item | Receptacle |
| Amps | 15A |
| Application Environment | Commercial Environments |
| Color | White |
| Connectivity | Side Wired Screw Terminals |
| Grade | Commercial |
| Height | 3 7/25" |
| Length | 1 8/25" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Phase | 1 |
| Power Indicator | No |
| Prod. Description | Smooth Face Isolated Ground |
| Surge Protection | No |
| Voltage | 125V |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 0.83" |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Side |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grounding | Isolated Ground |
| Housing Color | White |
| Housing Material | Nylon |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Overall Depth | 3.3" |
| Receptacle Type | Duplex |
| Special Resistance | Corrosion Resistant |
| Standards | CSA CERTIFIED C22.2 NO. 42, FEDERAL SPECIFICATION W-C-596, NEMA WD-6, UL 498 FILE E2186 |
| Voltage Rating | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 3.35 |
| Ship width (cm) | 2.11 |
| HS code | 8536698000 |
| Country of Origin | CN |
