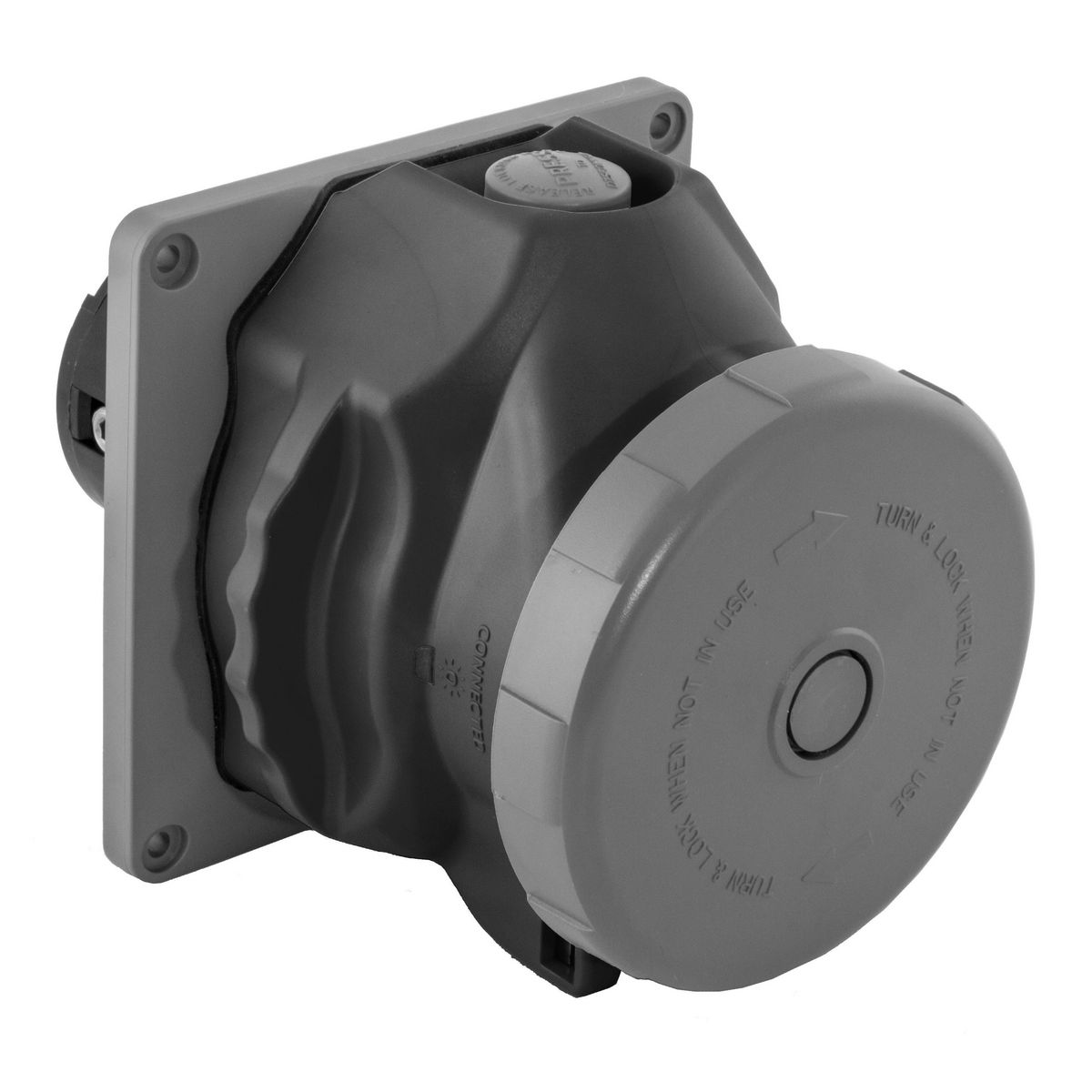

HUBBELL WIRING DEVICE-KELLEMS HBLS4100R5W Pin And Sleeve Receptacle, 100A, 600V AC
Item: CJ3AAM
Model: HBLS4100R5W
21 In Stock
Ships within 2 days via
5.00% off
£5608.02/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Cap Type | Spring Loaded Cap |
|---|---|
| Connection Orientation | Straight |
| Current Rating | 100A |
| Features | Approved As A Disconnecting Means For Motor Circuits And Branch Circuits, Mates With Existing Installed Base Of Iec 60309-2 Pin And Sleeve Devices, Unswitched Ground |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 50 hp |
| Housing Color | Red |
| Housing Material | Composite |
| Ip Rating | IP68, IP69K |
| Market | Commercial, Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 6 AWG |
|---|---|
| Nema Enclosure Rating | NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | Three |
| Power Indicating Light | Yes |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC |
| Wire Connection Type | Screw Terminals |
| standard | CSA CERTIFIED LR280C, FILE E146033, UL IEC 60309-1 IEC 60309-2, UL LISTED |
Product Details
Pin and Sleeve Receptacle
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 2.025000 |
Related Products
| Style | Model | Number Of Poles | Number Of Wires | Phase | Current Rating | Housing Material | Housing Color | Ip Rating | Hp Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL420R12W | 3.0 | 4 | 1 | 20A | Thermoplastic | Orange | IP67 | - | 360.09 | |
| B | HBL420R9W | 3.0 | 4 | 3 | 20A | Thermoplastic | Blue | IP67 | 2 hp | 351.93 | |
| A | HBL430R12W | 3.0 | 4 | 1 | 30/60A | Thermoplastic | Orange | IP67 | - | 466.26 | |
| B | HBL460R9W | 3.0 | 4 | 3 | 60A | Thermoplastic | Blue | IP67 | 7 1/2 hp | 809.40 | |
| C | HBL460R7W | 3.0 | 4 | 3 | 60A | Thermoplastic | Red | IP67 | 10 hp | 779.99 | |
| C | HBL4100R7W | 3.0 | 4 | 3 | 100A | Thermoplastic | Blue | IP67 | 50 hp | 986.20 | |
| B | HBL430R9W | 3.0 | 4 | 3 | 30A | Thermoplastic | Blue | IP67 | 7 1/2 hp | 477.44 |
