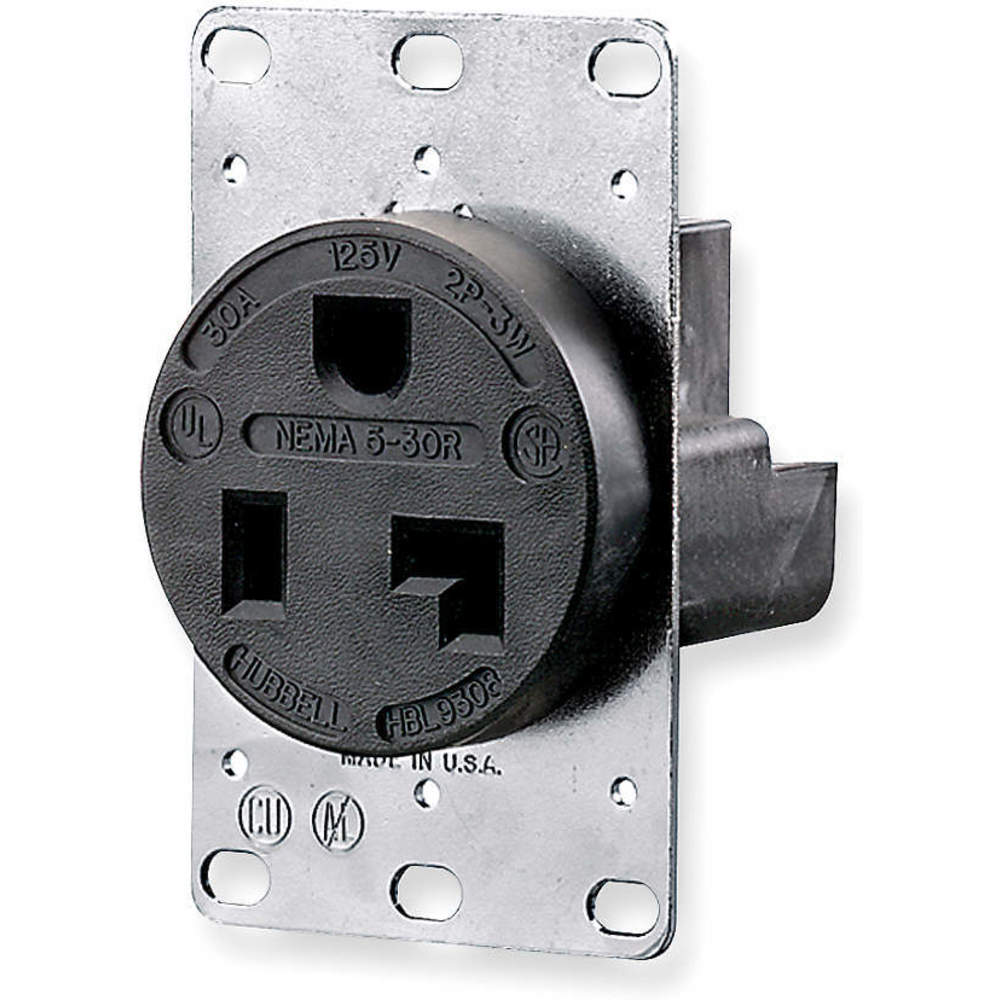

Item | Flush Mount Receptacle |
Amps | 30 |
Application Environment | Industrial Environments |
Color | Black |
Connectivity | Back and Side Wired Screw Terminals |
Current Rating | 30 A |
Diameter B-C-E | Back and Side Wired Screw Terminals |
Dielectric Strength | Withstands 2,000V minimum |
Duty | Heavy |
Grade | Specification |
HP | 2 |
IP Rating | 20 |
Material | Phenolic |
Max. HP | 2 |
Mounting Type | Flush |
NEMA Configuration | 5-30R |
NEMA Rating | 5-30R |
Number of Gangs | 1 |
Number of Poles | 2-Pole |
Number of Wires | 3-Wire |
Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
Outlet Type | Single |
Phase | Single Phase |
Power Indicator | No |
Surge Suppression | No |
Voltage | 125 VAC |
Voltage Rating | 125 V |
Wattage | 3750 W |
Weather Resistant | No |
Width | 2.23" |
Wire Size | #12 AWG to #4 AWG |
Wiring Method | Back and Side |
Ship weight (kg) | 0.18 |
Ship height (cm) | 10.16 |
Ship length (cm) | 6.35 |
Ship width (cm) | 6.35 |
HS code | 8536490080 |
Country of Origin | US |
Product | Model | Max. HP | Amps | Connectivity | NEMA Configuration | NEMA Rating | Number of Poles | Number of Wires | Phase | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
HBL7301A | 7.5 | 60 | Back and Side Wired Screw Terminals | 18-60R | 18-60R 4, 4X, 12 | 4-Pole | 4-Wire | Three Phase | £306.40 | ||
HBL7962 | 3 | 50 | Back and Side Wired | 10-50R | 10-50R | 3-Pole | 3-Wire | Single Phase | £79.48 | ||
HBL9350 | - | 30 | - | 10-30R | - | 3 | 3 | 1 | £56.39 | ||
HBL9430A | 2 | 30 | Back and Side Wired Screw Terminals | 14-30R | 14-30R | 3-Pole | 4-Wire | Single Phase | £184.15 | ||
HBL9450A | 3 | 50 | Back and Side Wired Screw Terminals | 14-50R | 14-50R | 3-Pole | 4-Wire Grounding | Single Phase | £255.62 | ||
HBL9460A | - | 60 | - | 14-60R | - | 3 | 4 | 1 | £294.89 | ||
HBL8430A | 3 | 30 | Back and Side Wired Screw Terminals | 15-30R | 15-30R | 3-Pole | 4-Wire | Three Phase | £197.29 |
