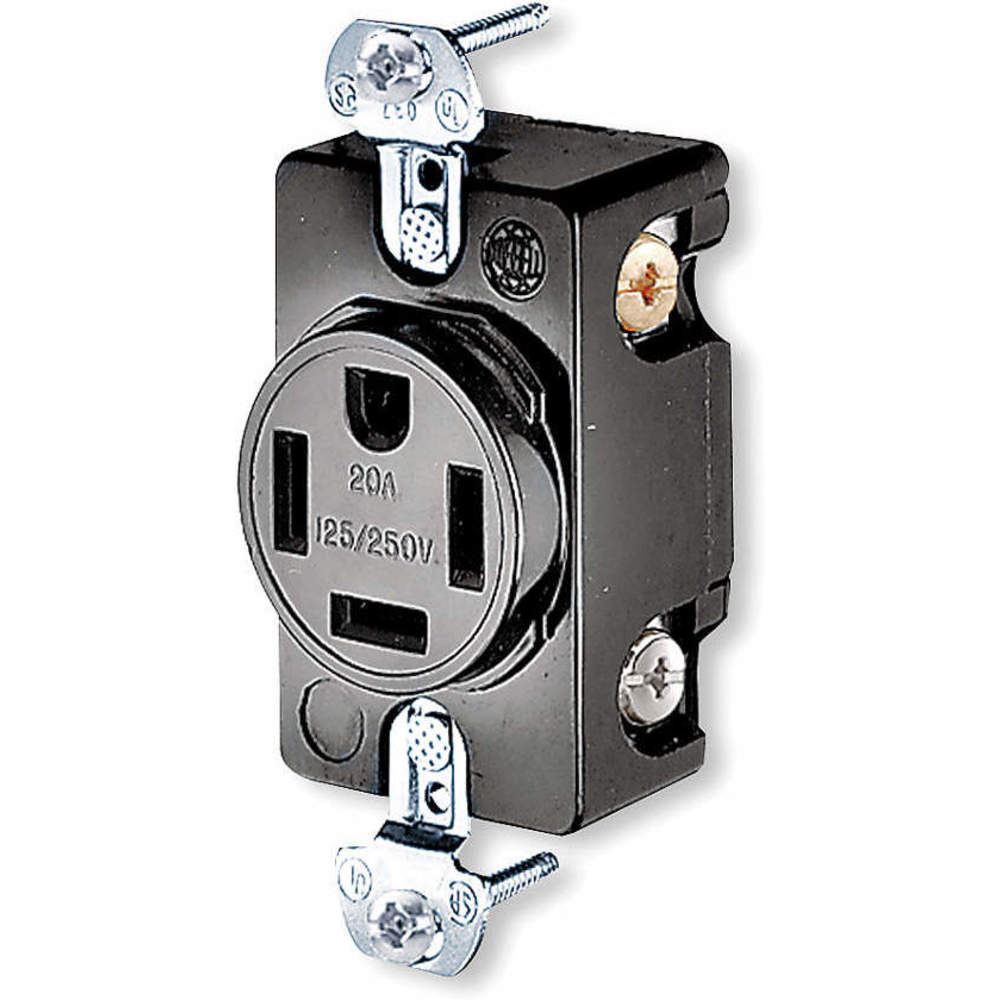

Item | Receptacle |
Amps | 20 |
Application Environment | Industrial Environments |
Color | Black |
Connectivity | Back and Side Wired Screw Terminals |
Current Rating | 20 A |
Diameter B-C-E | Back and Side Wired Screw Terminals |
Dielectric Strength | Withstands 2,000V minimum |
Duty | Heavy |
Grade | Specification |
Height | 1.24" |
HP | 2 L-L (1 L-N) |
IP Rating | 20 |
Length | 2.44" |
Material | Nylon |
Max. HP | 2 |
Mounting Type | Flush |
NEMA Configuration | 14-20R |
NEMA Rating | 14-20R |
Number of Gangs | 1 |
Number of Poles | 3-Pole |
Number of Wires | 4-Wire |
Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
Outlet Type | Single |
Phase | Single Phase |
Power Indicator | No |
Surge Suppression | No |
UPC | 994138078973 |
Voltage | 125/250 VAC |
Voltage Rating | 125/250 V |
Wattage | 5000 W |
Weather Resistant | No |
Width | 1.5" |
Wire Size | #14 AWG to #10 AWG |
Wiring Method | Back and Side |
Ship weight (kg) | 0.07 |
Ship height (cm) | 10.16 |
Ship length (cm) | 4.57 |
Ship width (cm) | 4.06 |
HS code | 8536698000 |
Country of Origin | US |
Product | Model | Item | HP | Amps | Application Environment | Length | Material | Max. HP | NEMA Configuration | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
HBL8300 | Receptacle | 1 | 20 | Heavy Use Industrial/Harsh Environments | 3.28" | Thermoplastic | 1 | 5-20R | £79.80 | ||
HBL5552B | Receptacle | 2 | 20 | Industrial Environments | 3.28" | Thermoplastic | 2 | 2-20R | £48.88 | ||
HBL8210I | Receptacle | 1/2 | 15 | Industrial Environments | 3.28" | Nylon | 0.5 | 5-15R | £57.23 | ||
HBL8210R | Receptacle | 1/2 | 15 | Heavy Use Hospital Grade | 3.28" | Nylon | 0.5 | 5-15R | £56.34 | ||
IG8362GYSA | Receptacle w/Isolated Ground | 1 | 20 | Hospital Grade | - | Composite | - | 5-20R | £233.35 | ||
HBL8420 | Receptacle | 3 | 20 | Industrial Environments | - | Nylon | - | 15-20R | £90.41 | ||
HBL6810 | Receptacle | 1 | 20 | Industrial Environments | 3.28" | Phenolic | 2 | 10-20R | £70.73 |
