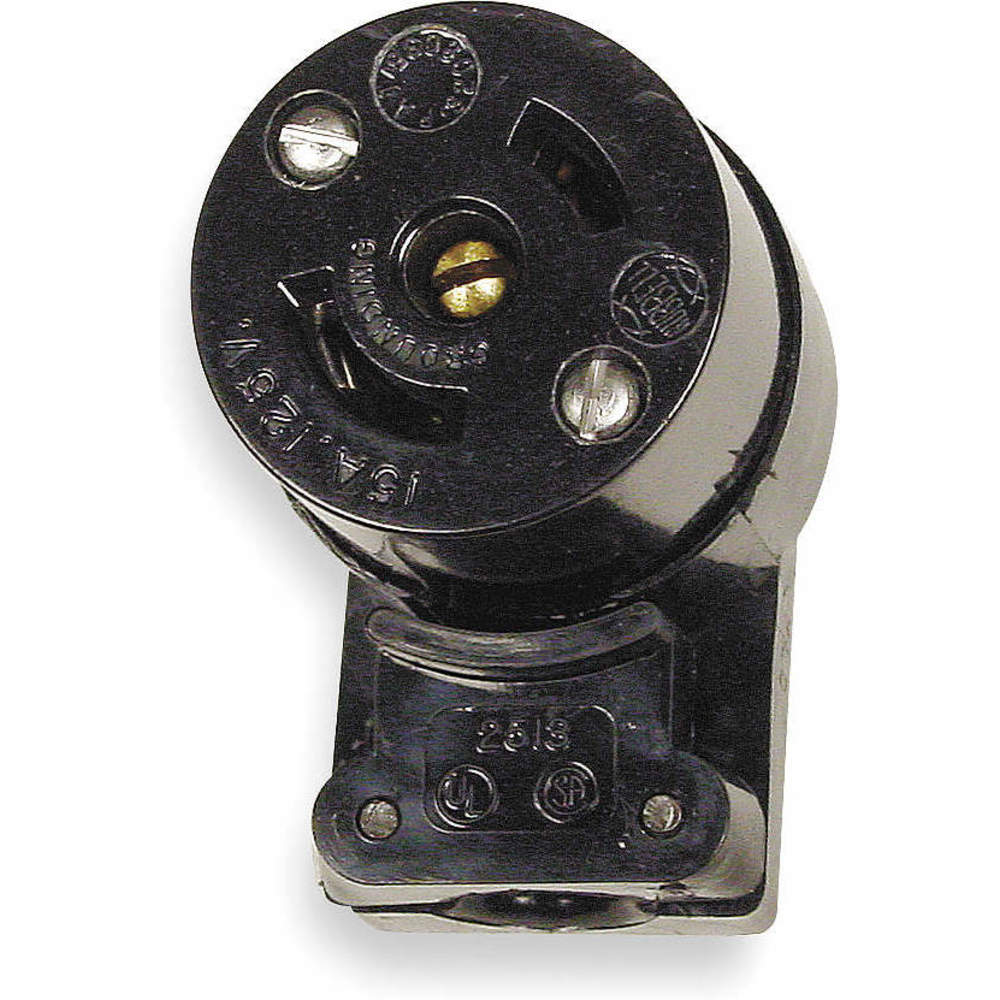

Item | Locking Connector |
Amps | 15 |
Body Material | Nylon |
Cable Range | 0.335-0.421" |
Color | Black |
Conductor Range | #14 AWG to #12 AWG |
Connectivity | Pressure Terminal Screws |
Cord Dia. Range | 0.220"-0.385" |
Cord Size | 0.335" to 0.421" |
Current Rating | 15 A |
Diameter B-C-E | Pressure Terminal Screws |
Diameter D | #14 AWG to #12 AWG |
Dielectric Strength | Withstands 2,000V minimum |
Height | 1.28" |
Insulation | Insulated Body |
Length | 1.69" |
Material | Nylon |
Mounting | Cord Mounted |
NEMA Configuration | ML-2R |
NEMA Rating | ML-2R |
Number of Poles | 2 |
Number of Wires | 3-Wire |
Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
Type | 2 Pole 3 Wire |
Voltage | 125 VAC |
Voltage Rating | 125 V |
Width | 1.17" |
Wire Size | #18 AWG to #14 AWG |
Wire Type | Standard |
Ship weight (kg) | 0.02 |
Ship height (cm) | 3.81 |
Ship length (cm) | 6.35 |
Ship width (cm) | 6.35 |
HS code | 8536698000 |
Country of Origin | US |
