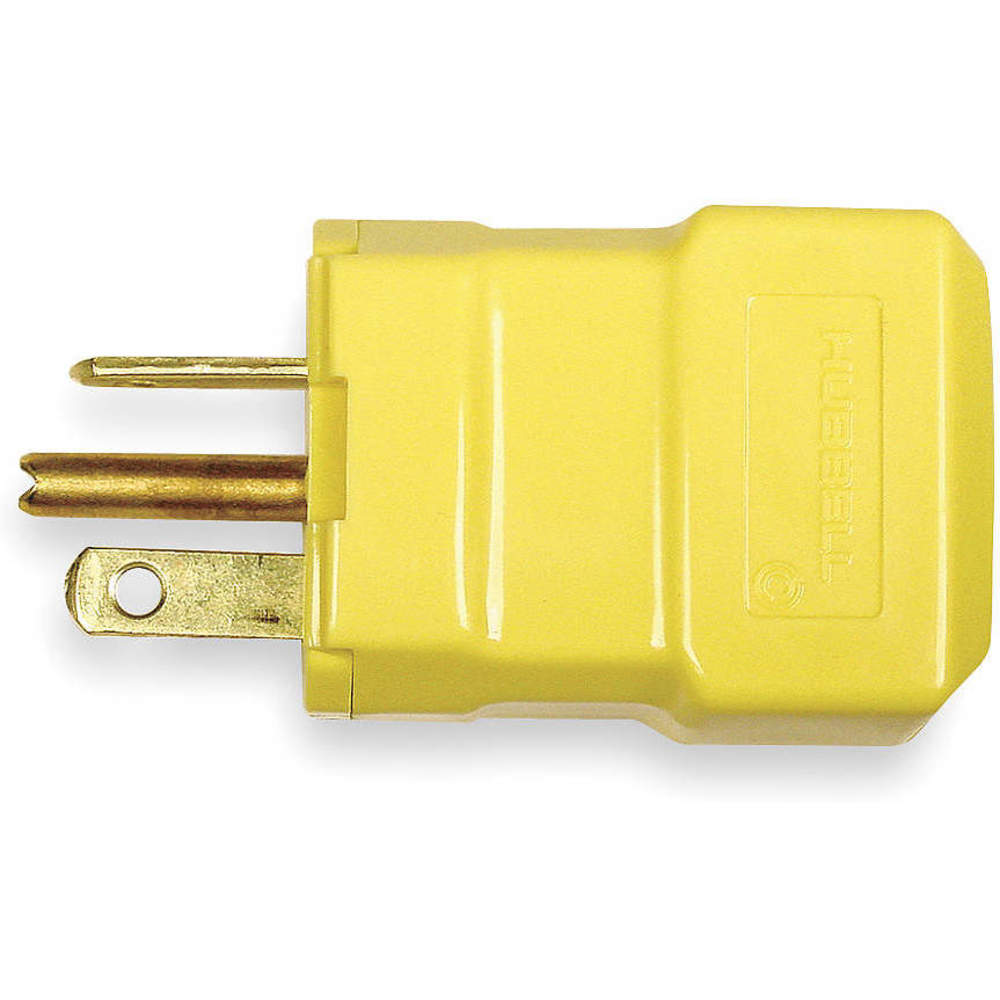

HUBBELL WIRING DEVICE-KELLEMS HBL5364VY Straight Blade Male Plug, 2-P 3-W Grounding, 20A 125V, 5-20P, Yellow
Item: AC8QBV
Model: HBL5364VY
12 In Stock
Ships within 2 days via
Yellow
0.22" to 0.66"
NEMA 5-20P
5.00% off
£45.1/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Plug |
|---|---|
| Amps | 20A |
| Antimicrobial | No |
| Body Length | 1.87" |
| Color | Yellow |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Cord Size | 0.22" to 0.66" |
| Current Rating | 20A |
| Finish | Corrosion Resistant |
| For Maximum Cable Diameter | 0.66" |
| For Minimum Cable Diameter | 0.22" |
| Grounding | Grounded |
| Height | 1.87" |
| Horsepower Rating | 1 hp |
| Housing Color | Yellow |
| Housing Material | Polycarbonate |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Length | 1.87" |
| Material | Polycarbonate |
|---|---|
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Nema Plug Configuration | 5-20P |
| Nema Rating | NEMA 5-20P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Standards | Csa Certified C22.2 No. 42 File 280C, Nema Wd-6, Ul 498 File E1706 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 12 AWG |
| Wiring Style | Hinged |
| Wiring Type | Hinged |
Product Details
- Valise Series, Hospital Grade, Straight,
Shipping Information
| height | 4.75 |
|---|---|
| length | 4.75 |
| width | 3.18 |
| hs code | 8536698000 |
|---|---|
| country of origin | US |
| weight | 0.045000 |
Related Products
| Style | Model | Number Of Poles | Amps | Nema Plug Configuration | Wiring Style | Voltage | Color | Material | Nema Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL5466C | 2 | 20A | 6-20P | Standard | 250V | Black, White | Nylon | NEMA 6-20P | 54.79 | |
| B | HBL5666C | 2 | 15A | 6-15P | Standard | 250V | Black, White | Nylon | NEMA 6-15P | 21.93 | |
| C | HBL5866VY | 2 | 15A | 1-15P | Hinged | 125V | Yellow | Nylon | NEMA 1-15P | 25.67 | |
| D | HBL5364VBK | 2 | 20A | 5-20P | Hinged | - | Black | Polycarbonate | NEMA 5-20P | 34.84 | |
| E | HBL5464VY | 2 | 20A | 6-20P | Hinged | 250V | Yellow | Nylon | NEMA 6-20P | 36.64 | |
| F | HBL56CM66C | 2 | 15A | 6-15P | Standard | 250V | Yellow | Nylon | NEMA 6-15P | 48.34 | |
| G | HBL8364V | 2 | 20A | 5-20P | Hinged | 125V | White | Nylon | NEMA 5-20P | 40.55 |
