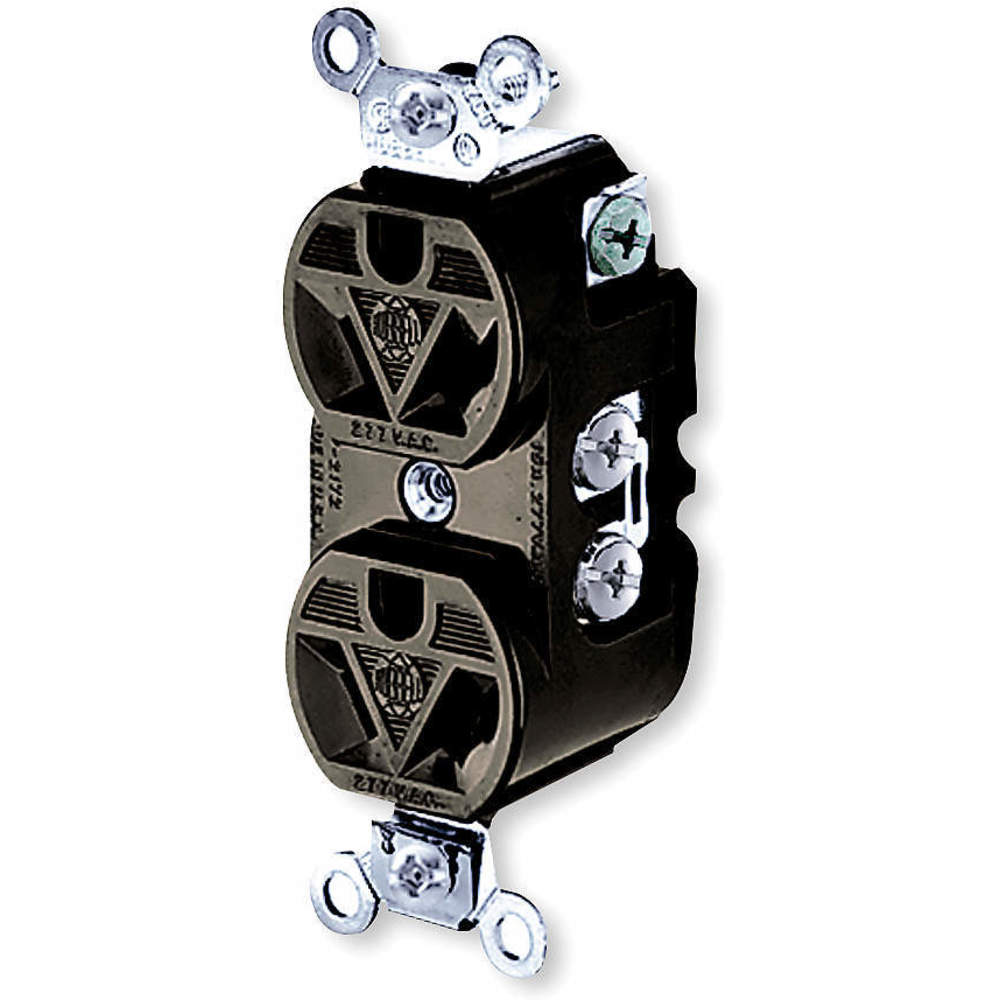

| Item | Receptacle |
| Amps | 15A |
| Application Environment | Industrial Environments |
| Color | Brown, White |
| Duty | Heavy Duty |
| Grade | Grade Industrial |
| Height | 1.19" |
| Length | 3 7/25" |
| Material | Thermoplastic |
| Max. Hp | 2 hp |
| Mounting Type | Flush |
| Nema Rating | NEMA 7-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Phase | 1 |
| Power Indicator | No |
| Surge Protection | No |
| Voltage | 277/120-277V AC |
| Weather Resistant | No |
| Width | 1.33" |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Bronze |
| Cover Type | No Cover |
| Current Rating | 15A |
| Face Plate Height | 2.6" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | Brown |
| Housing Material | Thermoplastic |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Overall Depth | 1.2" |
| Receptacle Type | Duplex |
| Standards | CSA C22.2 NO. 42 FILE 280C, NEMA WD-6, UL 498 FILE E1706 |
| Voltage Rating | 277V AC |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.38 |
| HS code | 8536490080 |
| Country of Origin | US |
