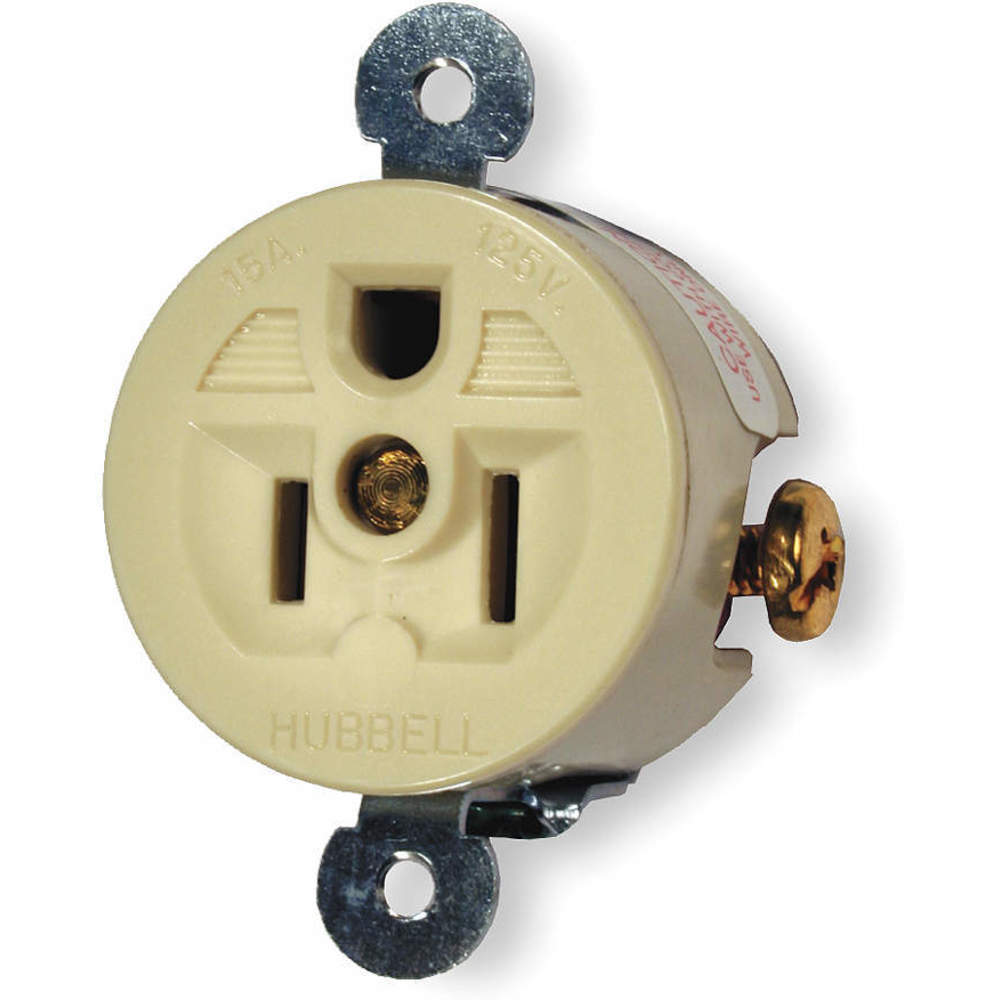

| Item | Panel Mount Receptacle |
| Amps | 15A |
| Application Environment | Heavy Use Industrial/Harsh Environments |
| Color | Ivory |
| Connectivity | Side Wired |
| Duty | Heavy Duty |
| Height | 1 3/25" |
| Hp | 1/2 hp |
| Length | 1 3/4" |
| Material | Melamine, Nylon |
| Max. Hp | 1/2 hp |
| Mounting Type | Panel |
| Nema Rating | NEMA 5-15R |
| Number Of Gangs | 1 |
| Outlet Type | Single |
| Phase | 1 |
| Power Indicator | No |
| Surge Protection | No |
| Voltage | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.38" |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Face Diameter | 1.4" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Ivory |
| Housing Material | PBT |
| Includes | Grounding Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Mounting Location | Panel |
| Overall Depth | 1.1" |
| Receptacle Type | Single |
| Standards | CSA CERTIFIED C22.2 NO. 42, FEDERAL SPECIFICATION W-C-596, NEMA WD-6, UL E2186 |
| Voltage Rating | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.84 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 3.51 |
| HS code | 8536490080 |
| Country of Origin | US |
