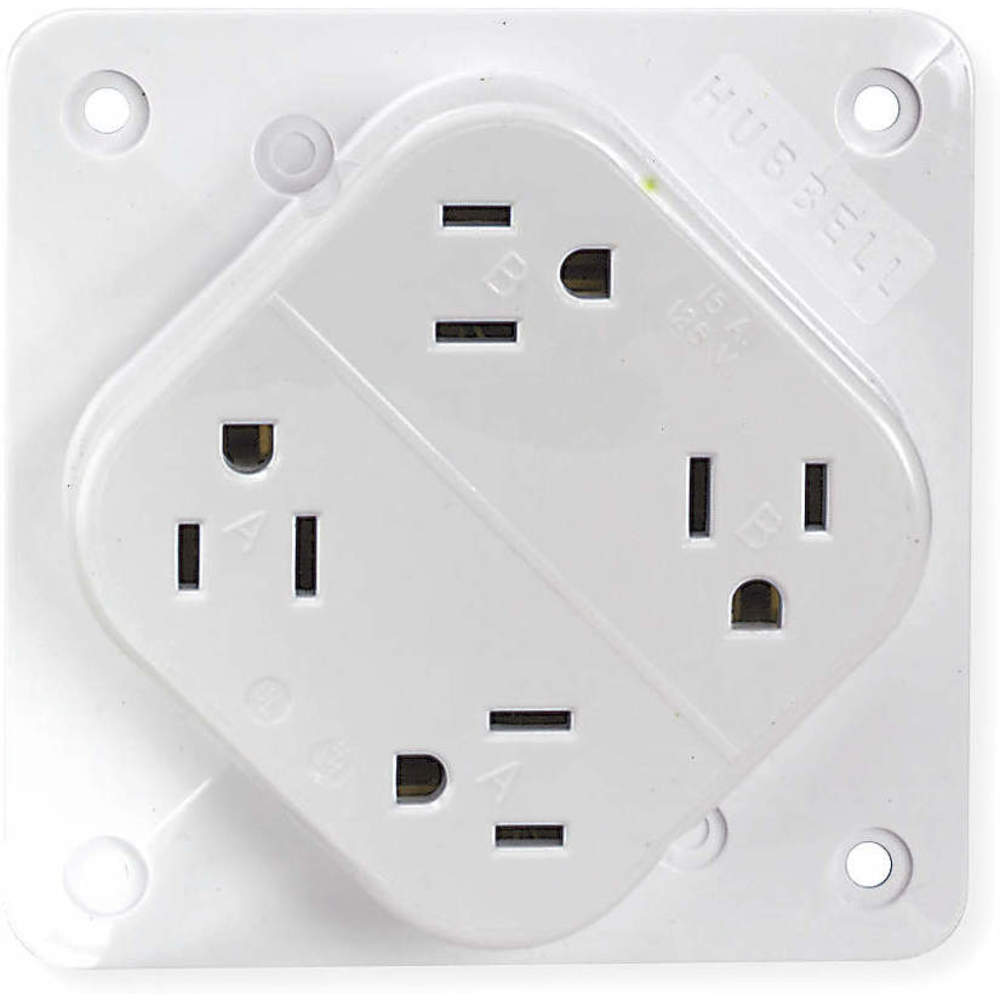

Item | Four Outlet Receptacle |
Amps | 15 |
Application Environment | Commercial Environments |
Color | White |
Connectivity | Screw Terminals |
Current Rating | 15 A |
Diameter B-C-E | Screw Terminals |
Dielectric Strength | Withstands 2,000V minimum |
Duty | Heavy |
Grade | Specification |
Height | 4.3" |
HP | 1/2 |
Length | 4.3" |
Material | Polycarbonate |
Max. HP | 0.5 |
Mounting Type | Surface |
NEMA Configuration | 5-15R |
NEMA Rating | 5-15R |
Number of Gangs | 2 |
Number of Poles | 2-Pole |
Number of Wires | 3-Wire |
Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
Outlet Type | Quad |
Phase | Single Phase |
Power Indicator | No |
Prod. Description | Grounding |
Surge Suppression | No |
Voltage | 125 VAC |
Voltage Rating | 125 V |
Wattage | 1875 W |
Weather Resistant | No |
Width | 0.92" |
Wire Size | #14 AWG to #12 AWG |
Wiring Method | Back |
Ship weight (kg) | 0.23 |
Ship height (cm) | 3.81 |
Ship length (cm) | 11.18 |
Ship width (cm) | 11.18 |
HS code | 8536698000 |
Country of Origin | US |
Product | Model | NEMA Configuration | Amps | Color | NEMA Rating | Prod. Description | Surge Suppression | Wire Size | Connectivity | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
HBL420W | 5-20R | 20 | White | 5-20R | Grounding | No | #12 AWG | Screw Terminals | £68.47 | ||
HBL415BK | 5-15R | 15 | Black | 5-15R | Grounding | No | #14 AWG to #12 AWG | Screw Terminals | £57.73 | ||
HBL415GY | 5-15R | 15 | Gray | 5-15R | Grounding | No | #14 AWG to #12 AWG | Screw Terminals | £57.73 | ||
HBL420BK | 5-20R | 20 | Black | 5-20R | Grounding | No | #12 AWG | Screw Terminals | £66.95 | ||
HBL415 | 5-15R | 15 | Brown | 5-15R | - | No | #14 AWG to #12 AWG | Screw Terminals | £61.28 | ||
HBL415I | 5-15R | 15 | Ivory | 5-15R | - | No | #14 AWG to #12 AWG | Screw Terminals | £62.84 | ||
HBL420 | 5-20R | 20 | Brown | 5-20R | - | No | #12 AWG | Screw Terminals | £68.47 |
