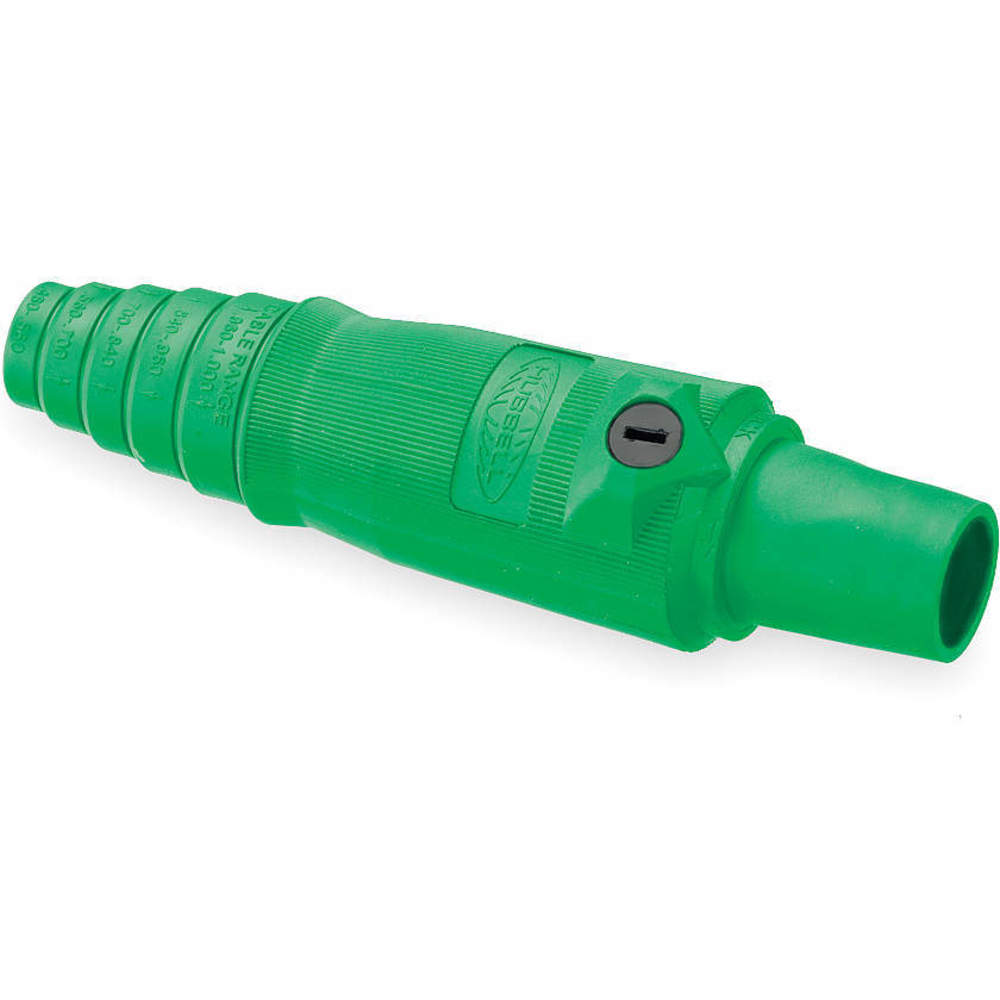

| Item | Female Plug |
| Amps | 400A |
| Amps Ac | 400A |
| Cable Size | 2/0 AWG to 4/0 AWG |
| Cable Size Range (in.) | 0.46" to 1.02" |
| Color | Green |
| Conductor Material | Brass |
| End Type | Taper Nose |
| Male/female | Female |
| Material | TPE |
| Nema Rating | NEMA 3R, NEMA 4X, NEMA 12K |
| Single Pole Device Style | Taper Nose |
| Terminal Connection | Double Set Screw |
| Terminal Connection Type | Double Set Screw |
| Type | Single Pole Device |
| contact material | Brass |
| contact type | Single Cam |
| current rating | 400A |
| gender | Female |
| housing color | Green |
| housing material | Thermoplastic Elastomer |
| nema enclosure rating | NEMA 3R, NEMA 4X, NEMA 12 |
| overall length | 7.1" |
| overall width | 1.95" |
| standards | ANSI/NFPA 70, CUL LISTED, NATIONAL ELECTRIC CODE (NEC), UL ENCLOSURE TYPES 3R, 4X, 12, UL LISTED |
| ul 94 flammability rating | HB |
| voltage rating | 250V DC/600V AC |
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 4.95 |
| HS code | 8536698000 |
| Country of Origin | CN |
| Product | Model | Amps | Amps Ac | Cable Range | Cable Size | Color | Conductor Size | Current Rating | Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL300FBK | 300AC/DC | 300 | 6 to 2/0 | - | Black | - | 300 A | - | £68.06 | |
 |
HBL300FBL | 300AC/DC | 300 | 6 to 2/0 | - | Blue | - | 300 A | - | £68.06 | |
 |
HBL300FGN | 300AC/DC | 300 | 6 to 2/0 | - | Green | - | 300 A | - | £68.06 | |
 |
HBL300FR | 300AC/DC | 300 | 6 to 2/0 | - | Red | - | 300 A | - | £68.06 | |
 |
HBL300FW | 300AC/DC | 300 | 6 to 2/0 | - | White | - | 300 A | - | £68.06 | |
 |
HBL400FBK | 400AC/DC | 400 | 2/0 to 4/0 | - | Black | - | 400 A | - | £68.06 | |
 |
HBL400FBL | 400AC/DC | 400 | 2/0 to 4/0 | - | Blue | - | 400 A | - | £68.06 |
