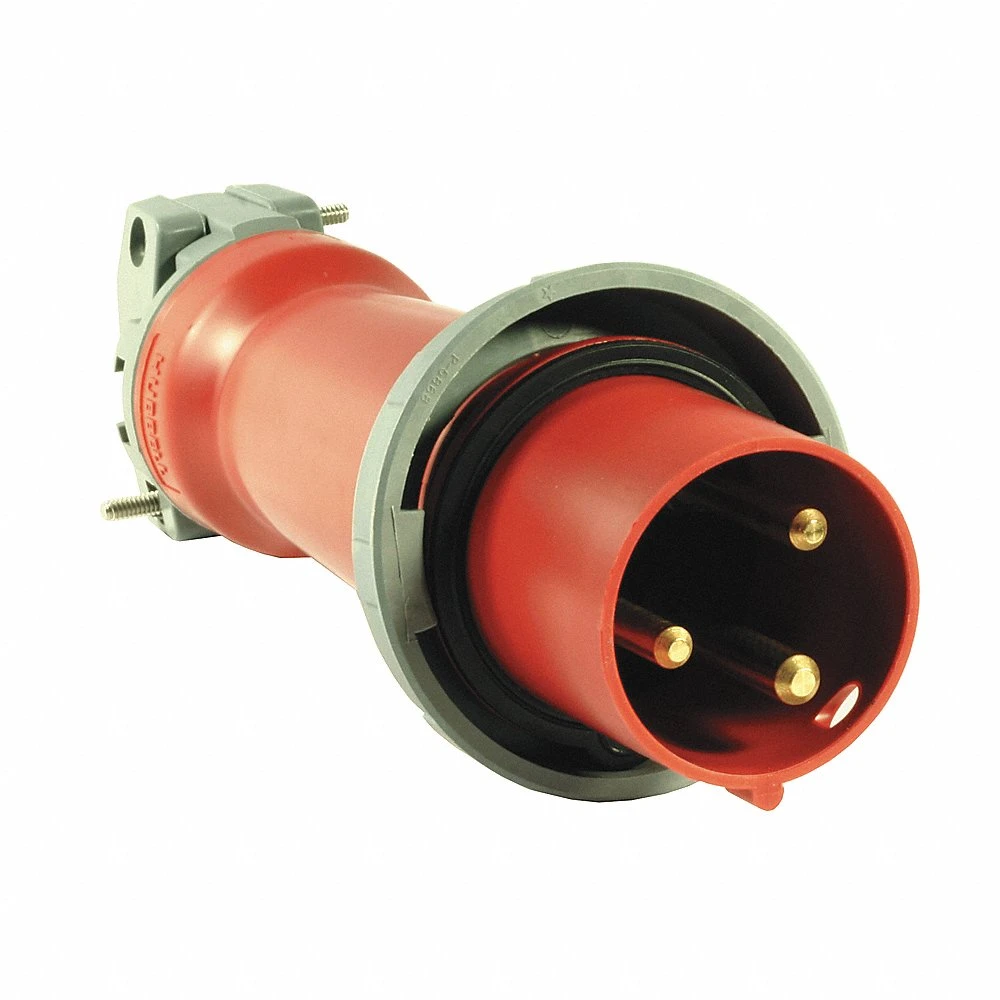

| Item | IEC Pin and Sleeve Plug |
| Amps | 100A |
| Color | Red |
| Cord Type | Portable |
| Exposure Conditions | Wateright |
| Material | Composite |
| Mounting Style | Cord |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Phase | 1 |
| Wire Size | #3 AWG to #1/0 AWG |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Current Rating | 100A |
| Face Diameter | 3.44" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Red |
| Housing Material | Polybutylene Terephthalate |
| Overall Length | 12.63" |
| Reverse Service | No |
| Standards | CSA CERTIFIED LR280C, IEC 60309-1, UL E146033 |
| Switch Rated | No |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 480V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 13.72 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Amps | Body Material | Color | Hp | Item | Number Of Poles | Number Of Wires | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL460P9V05 | 60 | Zytel 801 Nylon | Blue | 5 | Pin and Sleeve Plug | 3 | 4 | 3 | £738.67 | |
 |
HBL563P6W | 63 | Zytel 801 Nylon | Red | - | Pin and Sleeve Plug | 4 | 5 | 3 | £524.57 | |
 |
M4100P12 | 100 | Nylon | Yellow | - | IEC Pin and Sleeve Plug | 3 | 4 | 1 | £1,458.37 | |
 |
M5100P9 | 100 | Nylon | Yellow | 10 | IEC Pin and Sleeve Plug | 4 | 5 | 3 | £1,499.88 | |
 |
C420P7WA | 20 | Nylon | Red | - | Pin and Sleeve Plug | 3 | 4 | 3 | £218.57 |
