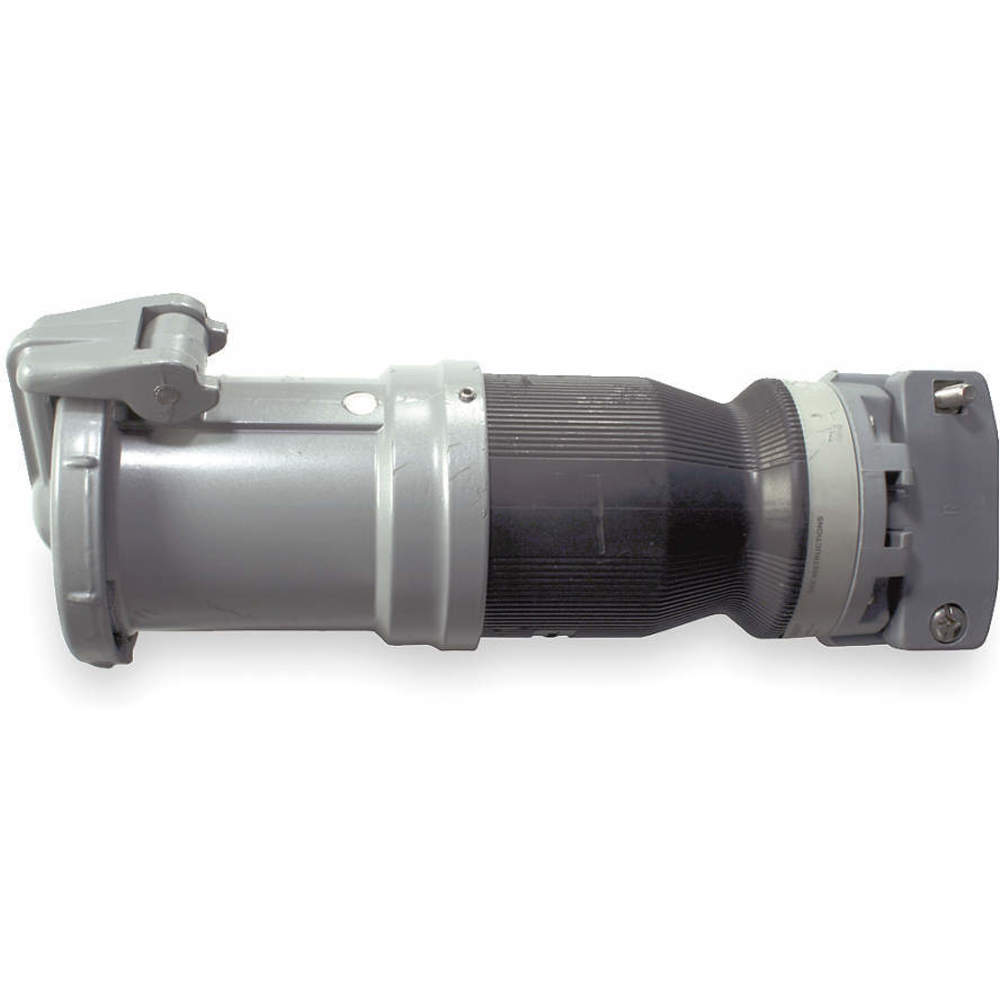

Item | Pin and Sleeve Connector |
Amps | 100 |
Body Material | Valox 357 Housing and Epoxy Painted Aluminum Shroud |
Color | Gray |
Conductor Size | #4 - #2 AWG |
Current Rating | 100 A |
Exposure Conditions | Watertight |
Material | Composite |
Mounting Style | Cord |
Number of Conductors | 3 |
Number of Poles | 2 |
Number of Wires | 3 |
Phase | 1 |
Temperature Range | 75 to -40 Degree C, -25 Degree C with Impact |
Type | Grounding Style II |
Voltage | 600VAC/250VDC |
Voltage Rating | 600/250 VAC/VDC |
Ship weight (kg) | 1.88 |
Ship height (cm) | 30.99 |
Ship length (cm) | 15.49 |
Ship width (cm) | 12.45 |
HS code | 8536904000 |
Country of Origin | US |
Product | Model | Type | Amps | Conductor Size | Current Rating | Number of Conductors | Number of Poles | Number of Wires | Phase | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
HBL360CS1W | Grounding Style I | 60 | #6 - #4 AWG | 60 A | 3 | 2 | 3 | 1 | £724.68 | ||
HBL360CS2W | Grounding Style II | 60 | #6 - #4 AWG | 60 A | 3 | 2 | 3 | 1 | £881.44 | ||
HBL4100CS1W | Grounding Style I | 100 | #4 - #2 AWG | 100 A | 4 | 3 | 4 | 3 | £1,049.41 | ||
HBL4100CS2W | Insulgrip Pin and Sleeve, Interchangeable, Female Connector Body | 100 | #4 - #2 AWG | 100 A | 4 | 3 | 4 | 3 | £1,291.30 | ||
HBL430CS1W | Insulgrip Pin and Sleeve, Interchangeable, Female Connector Body | 30 | #10 - #8AWG | 30 A | 4 | 3 | 4 | 3 | £499.27 | ||
HBL430CS2W | Insulgrip Pin and Sleeve, Interchangeable, Female Connector Body | 30 | #10 - #8AWG | 30 A | 4 | 3 | 4 | 3 | £572.12 | ||
HBL460CS1W | Insulgrip Pin and Sleeve, Interchangeable, Female Connector Body | 60 | #6 - #4 AWG | 60 A | 4 | 3 | 4 | 3 | £806.90 |
