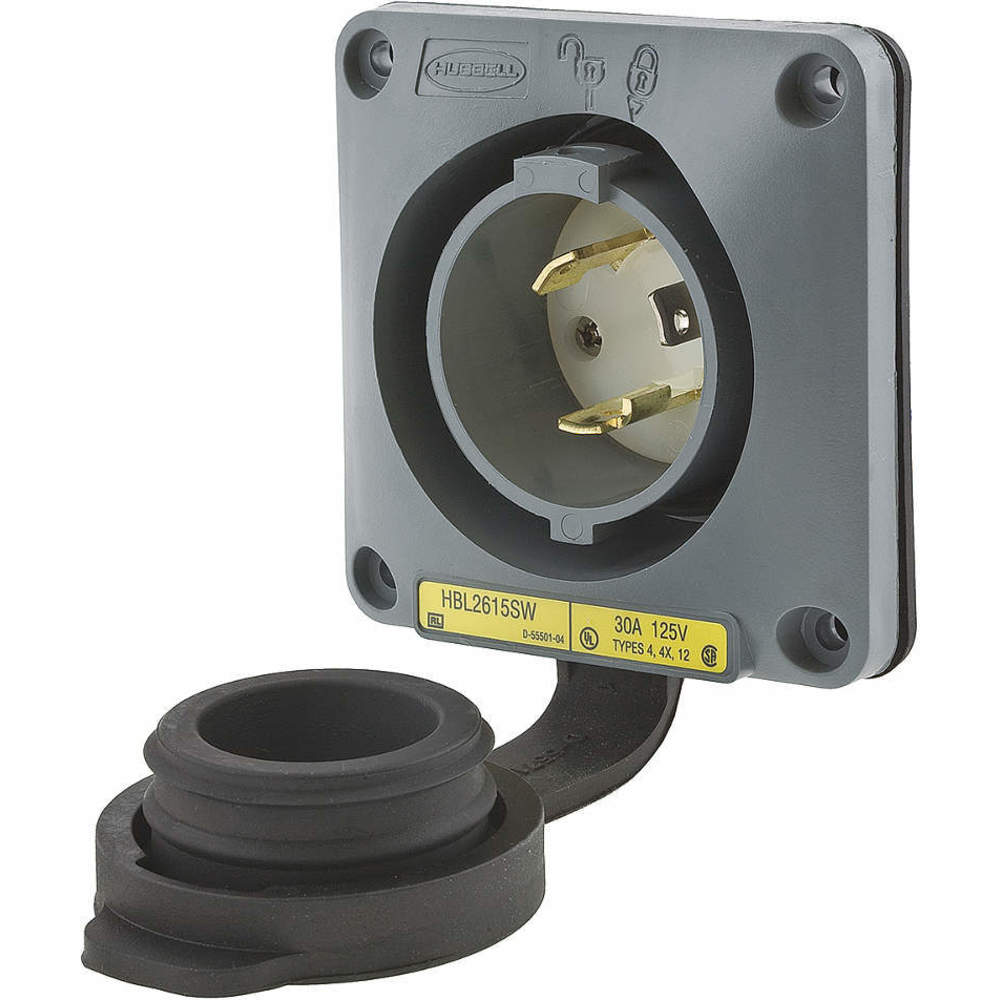

Item | Watertight Shrouded Flanged Inlet |
Amps | 30 |
Color | Gray |
Connectivity | Back Wired Screw Terminals |
Current Rating | 30 A |
Diameter B-C-E | Back Wired Screw Terminals |
Dielectric Strength | Withstands 2,000V minimum |
Grade | Industrial |
Height | 2.27" |
HP | 2 |
Insulation | Insulated Body |
IP Rating | 66 |
Length | 3.75" |
Material | Thermoplastic |
Mounting | Screw Mounting |
Mounting Type | Flush Mount |
NEMA Configuration | L5-30P |
NEMA Rating | L5-30P |
Number of Poles | 2 |
Number of Wires | 3-Wire |
Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
Phase | Single Phase |
Type | Shrouded |
UPC | 783585231648 |
Voltage | 125 VAC |
Voltage Rating | 125 VAC |
Wattage | 3750 W |
Width | 3.75" |
Wire Size | #16 AWG to #8 AWG |
Wire Type | Standard |
Ship weight (kg) | 0.23 |
Ship height (cm) | 10.41 |
Ship length (cm) | 8.13 |
Ship width (cm) | 10.16 |
HS code | 8538908080 |
Country of Origin | US |
Product | Model | Material | Amps | Color | Max. HP | NEMA Configuration | NEMA Rating | Number of Poles | Number of Wires | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
HBL2315SW | Thermoplastic Polyester | 20 | Gray | 1 | L5-20P | L5-20P | 2 | 3-Wire | £129.48 | ||
HBL2435SW | Thermoplastic | 20 | Gray, White | 5 | L16-20P | L16-20P | 3 | 4-Wire | £152.14 | ||
HBL2715SW | Thermoplastic | 30 | Gray | - | L14-30P | L14-30P | 3 | 4-Wire | £282.61 | ||
HBL2725SW | Thermoplastic | 30 | Gray | - | L15-30P | L15-30P | 3 | 4-Wire | £323.76 | ||
HBL2815SW | Thermoplastic | 30 | Gray, White | - | L21-30P | L21-30P | 4 | 5-Wire | £344.74 |
