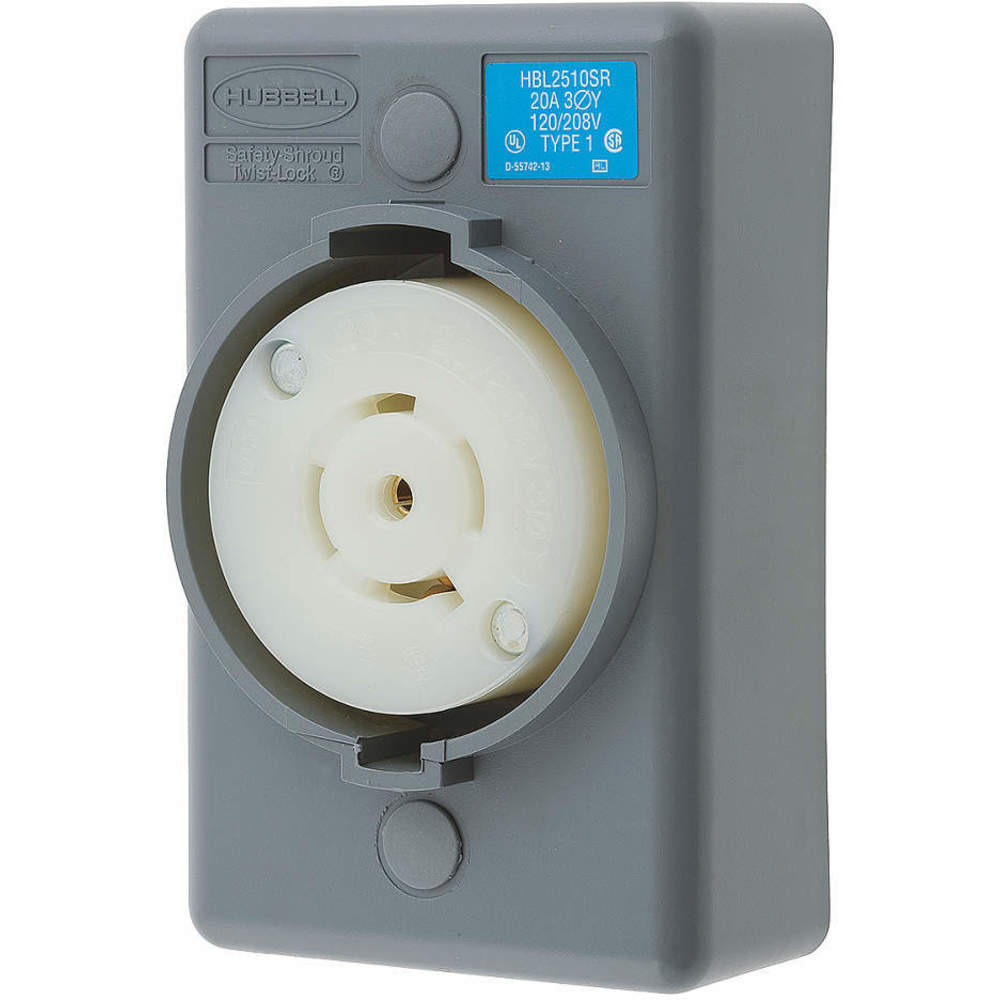

HUBBELL WIRING DEVICE-KELLEMS HBL2510SR Surface Mount Receptacle, One Gang, 20A, 3-Phase, Wye 120/208VAC, 4-Pole | AD6ZRF 4CV10

HUBBELL WIRING DEVICE-KELLEMS HBL2510SR Surface Mount Receptacle, One Gang, 20A, 3-Phase, Wye 120/208VAC, 4-Pole

Item: AD6ZRF Model: HBL2510SRCross Ref: 4CV10
In Stock

Get it by May 3, Friday

£9.99 Flat Shipping £9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

£116.20 /unit (Inc. VAT)
Trade Prices Available
ADD TO CART
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemSurface Mount Shrouded Receptacle
Amps20
ColorGray
ConnectivityBack Wired Screw Terminals
Current Rating20 A
Diameter B-C-EBack Wired Screw Terminals
Dielectric StrengthWithstands 2,000V minimum
GradeIndustrial
Height1.71"
HP2
IP Rating20
Length4.56"
MaterialImpact Modified PBT
Max. HP2
MountingScrew Mounting
Mounting TypeSurface Mount
NEMA ConfigurationL21-20R
NEMA RatingL21-20R
Number of Gangs1-Gang
Number of Poles4
Number of Wires5-Wire
Operating Temp.Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact
Phase3 Phase WYE
TypeShrouded
UPC783585234984
Voltage120/208 VAC Y
Voltage Rating3 Phase WYE 120/208 VAC
Wattage4160 W
Width2.84"
Wire Size#16 AWG to #8 AWG
Wire TypeStandard

Shipping Info:

Ship weight (kg) 0.25
Ship height (cm)7.62
Ship length (cm)12.45
Ship width (cm)7.62
HS code8536698000
Country of OriginUS

Product Variants

ProductModelMax. HPAmpsColorNEMA ConfigurationNEMA RatingNumber of PolesNumber of WiresOperating Temp.Price
HUBBELL WIRING DEVICE-KELLEMS HBL2310SR Surface Mount Receptacle, 20A, 125VAC, 2-Pole | AD6ZGL 4CT61
HBL2310SR120GrayL5-20RL5-20R23-WireMaximum continuous 75 Deg. C and minimum-40 Deg. C without Impact£65.44
HUBBELL WIRING DEVICE-KELLEMS HBL2320SR Surface Mount Receptacle 20A, 250V, 2-Pole, 3-Wire Grounding | AD6ZGV 4CT69
HBL2320SR220GrayL6-20RL6-20R23-WireMaximum continuous 75 Deg. C and minimum-40 Deg. C without Impact£68.16
HUBBELL WIRING DEVICE-KELLEMS HBL2410SR Surface Mount Receptacle, One Gang, 20A, 125/250VAC, 3-Pole | AD6ZHE 4CT85
HBL2410SR220GrayL14-20RL14-20R34-WireMaximum continuous 75 Deg. C and minimum-40 Deg. C without Impact£103.81
HUBBELL WIRING DEVICE-KELLEMS HBL2420SR Surface Mount Receptacle, One Gang, 20A, 3-Phase, Delta, 250VAC, 3-Pole | AD6ZHL 4CT93
HBL2420SR320GrayL15-20RL15-20R34-WireMaximum continuous 75 Deg. C and minimum-40 Deg. C without Impact£85.40
HUBBELL WIRING DEVICE-KELLEMS HBL2430SR Surface Mount Receptacle, One Gang, 20A, 3-Phase, Delta, 480VAC, 3-Pole | AD6ZQX 4CV02
HBL2430SR520GrayL16-20RL16-20R34-WireMaximum continuous 75 Deg. C and minimum-40 Deg. C without Impact£93.52
HUBBELL WIRING DEVICE-KELLEMS HBL2610SR Surface Mount Receptacle, One Gang, 30A, 125VAC, 2-Pole | AD6ZRM 4CV18
HBL2610SR230GrayL5-30RL5-30R23-WireMaximum continuous 75 Deg. C and minimum-40 Deg. C without Impact£83.68
HUBBELL WIRING DEVICE-KELLEMS HBL2620SR Receptacle, 30A, 250VAC, 2 Pole, 3 Wire Grounding | AD6ZRU 4CV25
HBL2620SR230Gray, WhiteL6-30RL6-30R23-Wire GroundingMaximum continuous 75 Deg. C and minimum-40 Deg. C without Impact£96.36
