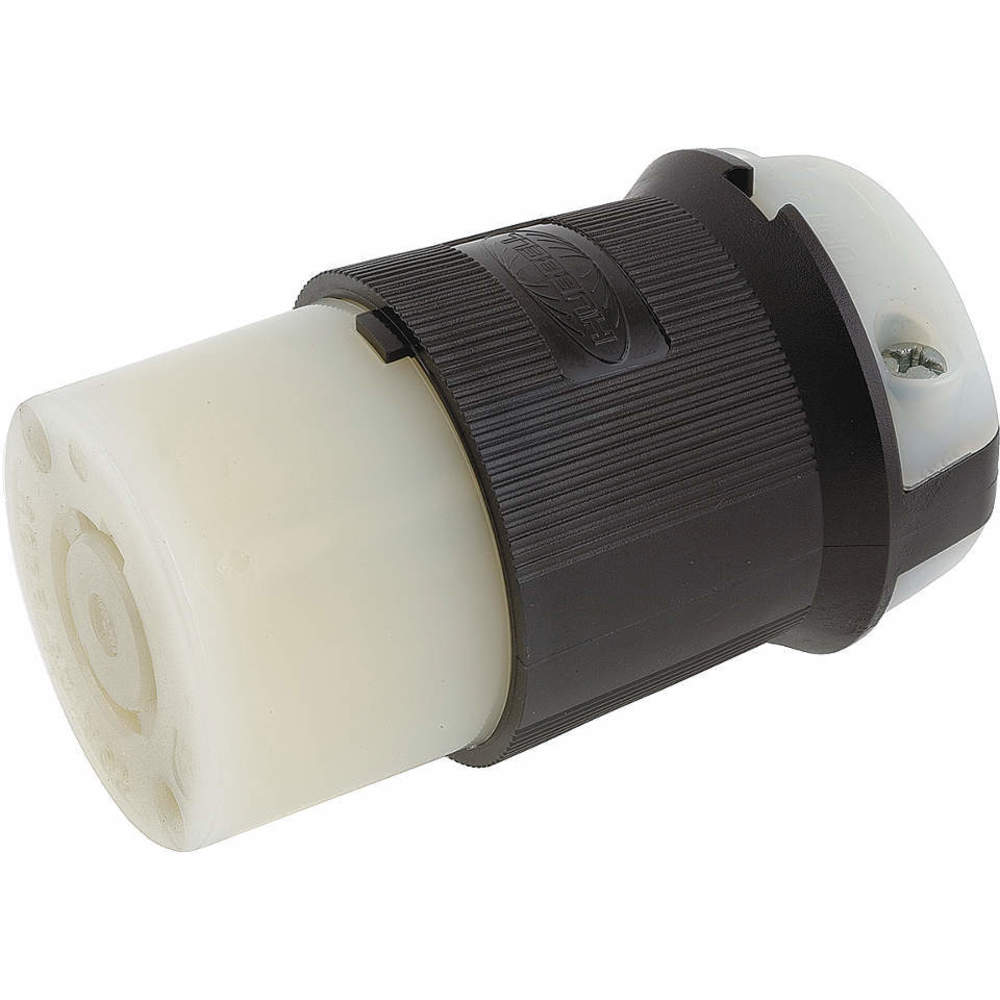

Item | Locking Connector |
Amps | 20 |
Antimicrobial | No |
Cable Range | 0.350-1.150" |
Color | Black, White |
Connectivity | Screw Terminals |
Cord Dia. Range | 0.350"-1.150" |
Cord Size | 0.35 to 1.15" |
Current Rating | 20 A |
Diameter B-C-E | Screw Terminals |
Dielectric Strength | Withstands 2,000V minimum |
Grade | Industrial/Commercial |
Height | 3.86" |
HP | 2 L-L (1 L-N) |
Insulation | Insulated Body |
IP Rating | 20 |
Length | 2.33" |
Material | Nylon |
Max. HP | 2 |
Mounting | Cord Mounted |
NEMA Configuration | L14-20R |
NEMA Rating | L14-20R |
Number of Poles | 3 |
Number of Wires | 4-Wire |
Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
Phase | 1 |
Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
Type | Non-Shrouded |
Voltage | 125/250 VAC |
Voltage Rating | 125/250 VAC |
Width | 2.33" |
Wire Size | #16 AWG to #8 AWG |
Wire Type | Standard |
Ship weight (kg) | 0.18 |
Ship height (cm) | 10.41 |
Ship length (cm) | 6.1 |
Ship width (cm) | 6.35 |
HS code | 8536694020 |
Country of Origin | US |
Product | Model | Item | Height | Amps | Cable Range | HP | IP Rating | Length | Material | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
HBL4729CBK | Locking Connector | 2.78" | 15 | - | 0.5 | 20 | 1.53" | Nylon | £61.14 | ||
HBL2313BK | Locking Connector | 3.86" | 20 | 0.360-0.930" | 1 | 20 | 2.26" | Nylon | £71.05 | ||
HBL2613BK | Locking Connector | 3.86" | 30 | 0.360-0.930" | 1 | 20 | 2.26" | Nylon | £132.61 | ||
HBL2323BK | Locking Connector | 3.86" | 20 | - | 2 | 20 | 2.26" | Nylon | £70.54 | ||
HBL2623BK | Locking Connector | 2.26" | 30 | - | 2 | 20 | 3.86" | Nylon | £145.01 | ||
HBL2513BK | Locking Connector | 2.33" | 20 | - | 2 | 20 | 3.86" | Nylon | £149.80 | ||
HBL2813BK | Locking Connector | 3.86" | 30 | - | 3 | 20 | 2.33" | Nylon | £190.39 |
