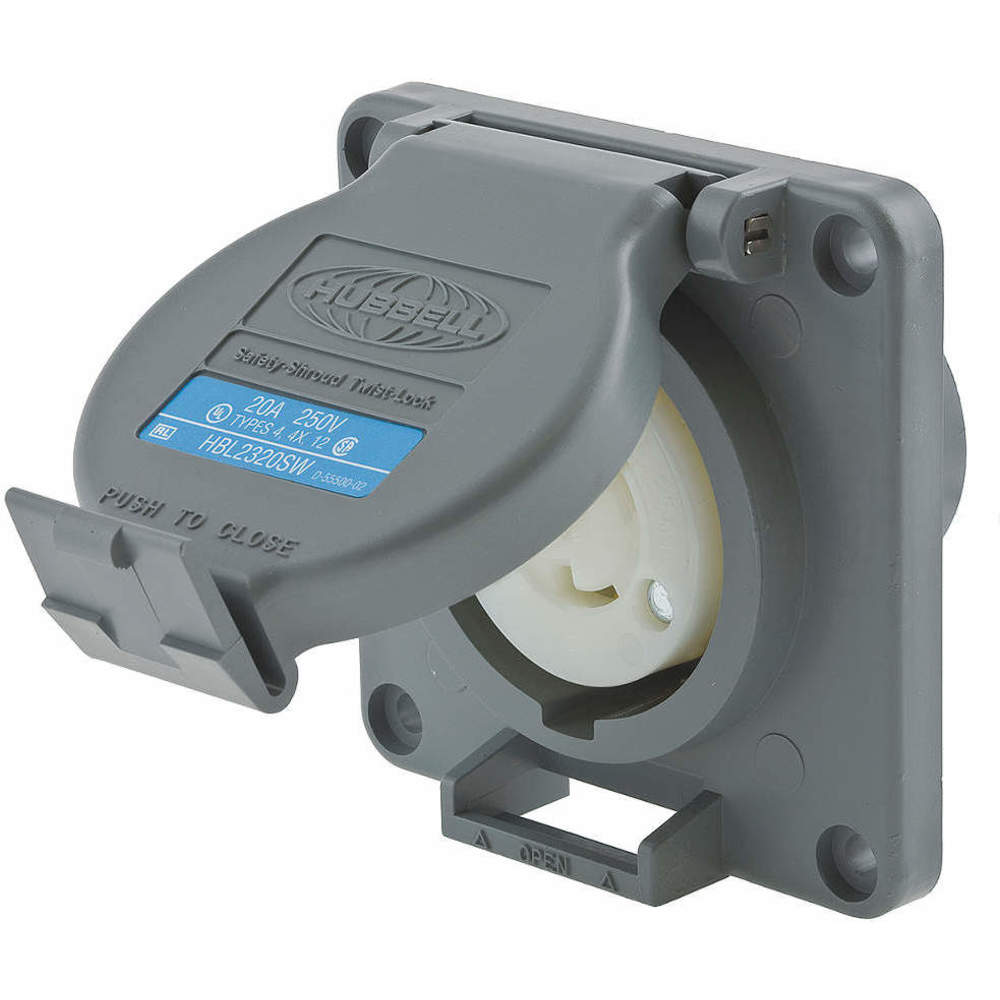

Item | Watertight Shrouded Receptacle |
Amps | 20 |
Color | Gray |
Connectivity | Back Wired Screw Terminals |
Current Rating | 20 A |
Diameter B-C-E | Back Wired Screw Terminals |
Dielectric Strength | Withstands 2,000V minimum |
Grade | Industrial |
Height | 2.69" |
HP | 2 |
IP Rating | 66 |
Length | 3.75" |
Material | Thermoplastic |
Max. HP | 2 |
Mounting | Screw Mounting |
Mounting Type | Flush Mount |
NEMA Configuration | L6-20R |
NEMA Rating | L6-20R |
Number of Poles | 2 |
Number of Wires | 3-Wire |
Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
Phase | Single Phase |
Type | Shrouded |
UPC | 783585231082 |
Voltage | 250 VAC |
Voltage Rating | 250 VAC |
Wattage | 5000 W |
Width | 3.75" |
Wire Size | #16 AWG to #8 AWG |
Wire Type | Standard |
Ship weight (kg) | 0.27 |
Ship height (cm) | 7.37 |
Ship length (cm) | 9.91 |
Ship width (cm) | 9.65 |
HS code | 8536698000 |
Country of Origin | US |
Product | Model | NEMA Configuration | Amps | Connectivity | NEMA Rating | Number of Poles | Number of Wires | Operating Temp. | Phase | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
HBL2610SW | L5-30R | 30 | Back Wired Screw Terminals | L5-30R | 2 | 3-Wire | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact | Single Phase | £214.64 | ||
HBL2310SW | L5-20R | 20 | Screw Terminals | 4, 4X, 12 | 2 | 3-Wire | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact | Single Phase | £223.96 | ||
HBL2330SW | L7-20R | 20 | Back Wired Screw Terminals | L7-20R | 2 | 3-Wire | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact | Single Phase | £204.88 | ||
HBL2410SW | L14-20R | 20 | Back Wired Screw Terminals | L14-20R | 3 | 4-Wire | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact | Single Phase | £207.70 | ||
HBL2420SW | L15-20R | 20 | Back Wired Screw Terminals | L15-20R | 3 | 4-Wire | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact | Three Phase | £193.74 | ||
HBL2430SW | L16-20R | 20 | Screw Terminals | L16-20R | 3 | 4-Wire | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact | Three Phase | £212.63 | ||
HBL2510SW | L21-20R | 20 | Back Wired Screw Terminals | L21-20R | 4 | 5-Wire | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact | 3 Phase WYE | £245.72 |
