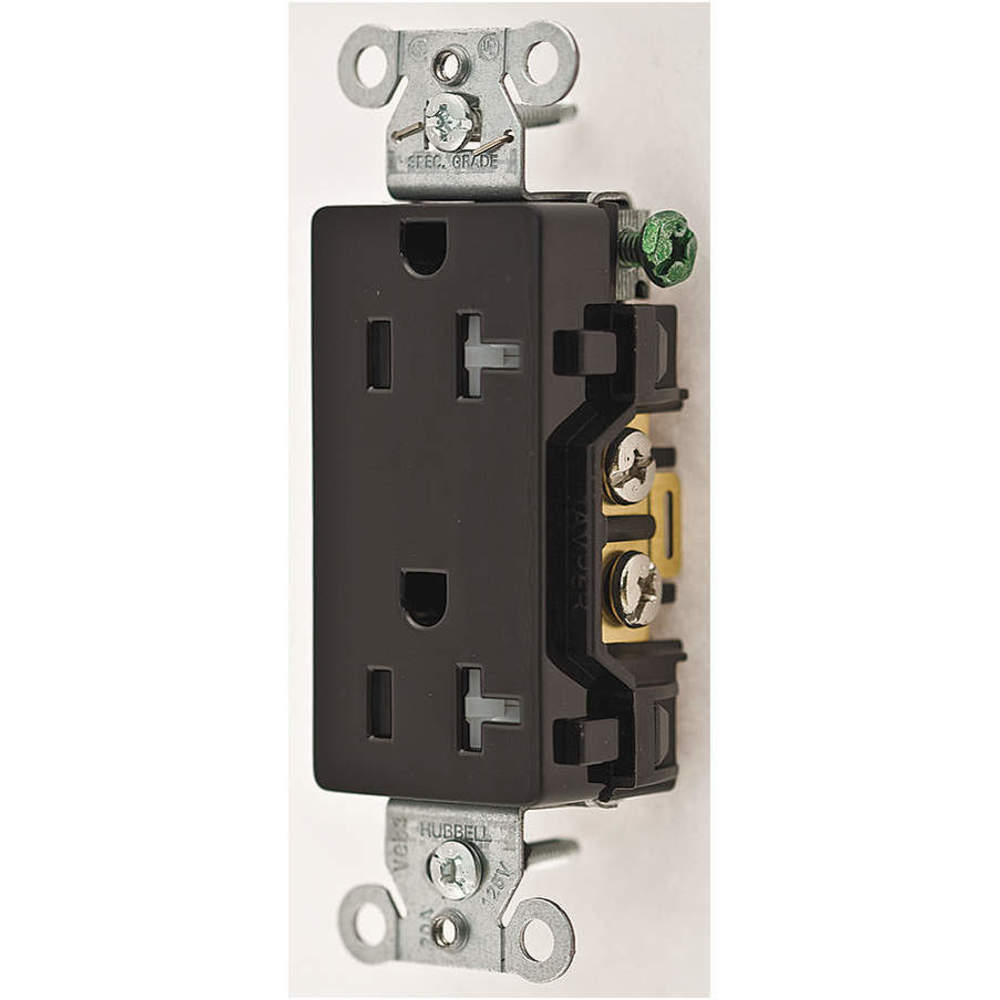

Item | Receptacle |
Amps | 20 |
Application Environment | Commercial Environments |
Color | Black |
Connectivity | Back and Side Wired |
Current Rating | 20 A |
Diameter B-C-E | Back and Side Wired |
Dielectric Strength | Withstands 2,000V minimum |
Grade | Commercial |
Height | 1.29" |
HP | 1 |
Length | 3.28" |
Material | Nylon |
Max. HP | 1 |
Mounting Type | Flush |
NEMA Configuration | 5-20R |
NEMA Rating | 5-20R |
Number of Gangs | 1 |
Number of Poles | 2-Pole |
Number of Wires | 3-Wire |
Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
Outlet Type | Decorator |
Phase | Single Phase |
Power Indicator | No |
Prod. Description | Tamper Resistant and Smooth Face |
Surge Suppression | No |
UPC | 783585144412 |
Voltage | 125 VAC |
Voltage Rating | 125 V |
Wattage | 2500 W |
Weather Resistant | No |
Width | 1.14" |
Wire Size | #12 AWG to #10 AWG |
Wiring Method | Back and Side |
Ship weight (kg) | 0.08 |
Ship height (cm) | 6.6 |
Ship length (cm) | 20.83 |
Ship width (cm) | 10.92 |
HS code | 8536698000 |
Country of Origin | CN |
Product | Model | NEMA Configuration | Amps | Color | NEMA Rating | Wire Size | Current Rating | Height | HP | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
DR15WHITR | 5-15R | 15 | White | 5-15R | #14 AWG to #10 AWG | 15 A | 3.28" | 1/2 | £20.63 | ||
DR20GRYTR | 5-20R | 20 | Gray | 5-20R | #12 AWG to #10 AWG | 20 A | 1.29" | 1 | £19.55 | ||
DR20ITR | 5-20R | 20 | Ivory | 5-20R | #12 AWG to #10 AWG | 20 A | 1.29" | 1 | £19.55 | ||
DR20TR | 5-20R | 20 | Brown | 5-20R | #12 AWG to #10 AWG | 20 A | 1.29" | 1 | £19.55 | ||
DR20WHITR | 5-20R | 20 | White | 5-20R | #12 AWG to #10 AWG | 20 A | 1.29" | 1 | £24.16 |
