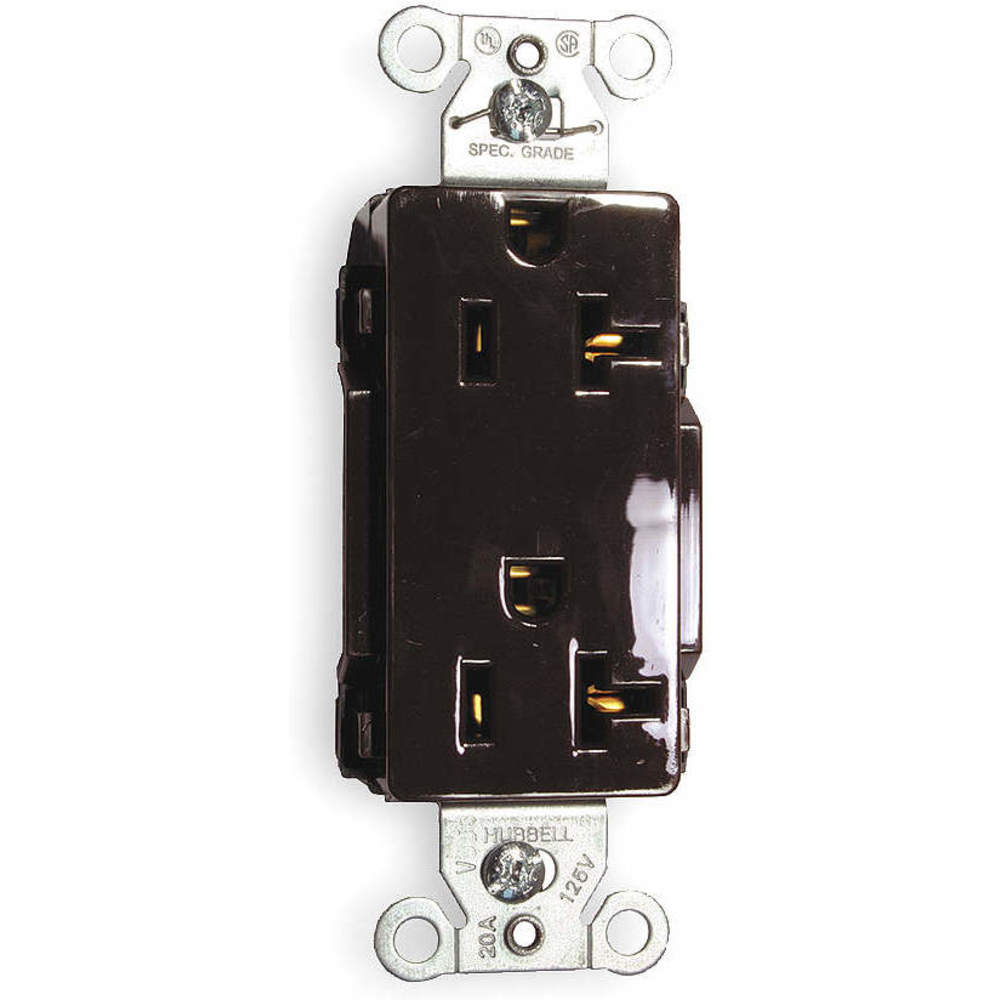

| Item | Receptacle |
| Amps | 20A |
| Application Environment | Commercial Environments |
| Color | Brown |
| Connectivity | Back And Side Wired |
| Height | 1.29" |
| Length | 3 7/25" |
| Material | Nylon |
| Max. Hp | 1 hp |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Decorator Duplex |
| Phase | 1 |
| Power Indicator | No |
| Surge Protection | No |
| Voltage | 125V |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.06" |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
| Afci | No |
| connection orientation | Straight |
| contact material | Brass |
| cover type | No Cover |
| current rating | 20A |
| face plate height | 2.7" |
| gfci | No |
| grade | Federal Specification |
| grounding | Grounded |
| housing color | Brown |
| housing material | Nylon |
| includes mounting hardware | Yes |
| mount hole center-to-center height | 2.7" |
| mount hole center-to-center width | 1.3" |
| mount type | Flush |
| overall depth | 1.3" |
| receptacle type | Decorator Duplex |
| standards | CSA CERTIFIED C22.2, FEDERAL SPECIFICATION W-C-596, NEMA WD-6, UL 498 |
| voltage rating | 125V AC |
| wire connection type | Screw Terminals |
| wire connection types | Screw Terminals |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 2.69 |
| HS code | 8536490080 |
| Country of Origin | CN |
