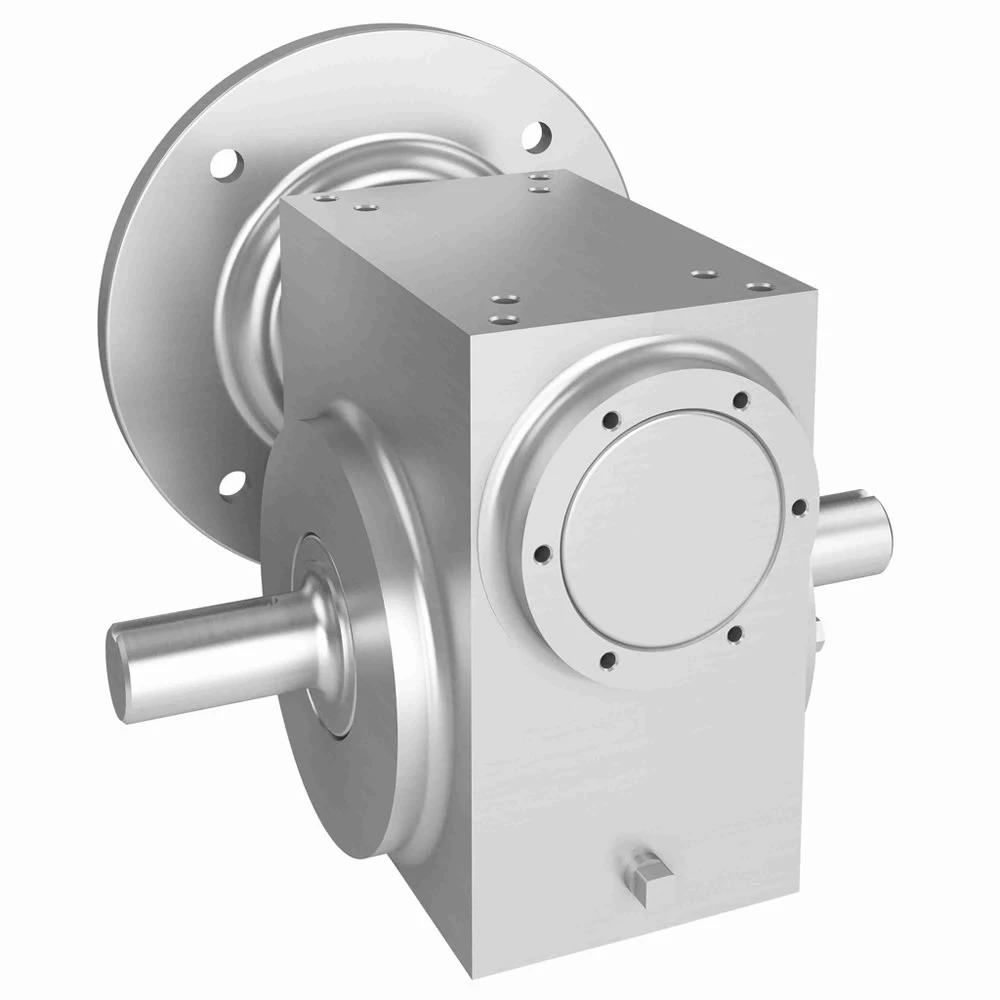

HUB CITY 0270-06675 Worm Reducer, 4.492 Hp, 1.125 Inch I.D, 1.250 Inch O.D, Stainless Steel
Item: AY3UWD
Model: 0270-06675
In Stock
Get it by Wednesday, Apr 15
£2747.15/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.63" |
|---|---|
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 180TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 3 hp to 5 hp |
| Input Dia. | 1 1/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 4.492 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 175 RPM |
| Output Shaft | Shaft |
|---|---|
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Overhung Load | 1150 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 1475 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 30.48 |
|---|---|
| length | 40.64 |
| width | 30.48 |
|---|---|
| weight | 24.750000 |
Related Products
| Style | Model | max. input hp | center distance | input style | ratio | output rpm | frame size | output shaft | output | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-06613 | 6.693 hp | 2.63" | C Face Quill | 5:1 | 350 RPM | 56C | Shaft | - | 2,246.81 | |
| B | 0270-06619 | 2.145 hp | 2.63" | C Face Quill | 30:1 | 58.3 RPM | 56C | Shaft | - | 2,246.81 | |
| C | 0270-06620 | 1.695 hp | 2.63" | C Face Quill | 40:1 | 43.75 RPM | 56C | Shaft | - | 2,246.81 | |
| D | 0270-06621 | 1 21/50 hp | 2.63" | C Face Quill | 50:1 | 35 RPM | 56C | Shaft | - | 2,246.81 | |
| E | 0270-06622 | 1.216 hp | 2.63" | C Face Quill | 60:1 | 29.2 RPM | 56C | Shaft | - | 2,246.81 | |
| F | 0270-06817 | 6.693 hp | 2.63" | C Face Quill | 5:1 | 350 RPM | 140TC | Hollow Bore | - | 3,044.56 | |
| G | 0270-06629 | 2.965 hp | 2.63" | C Face Quill | 20:1 | 87.5 RPM | 56C | Shaft | - | - |
