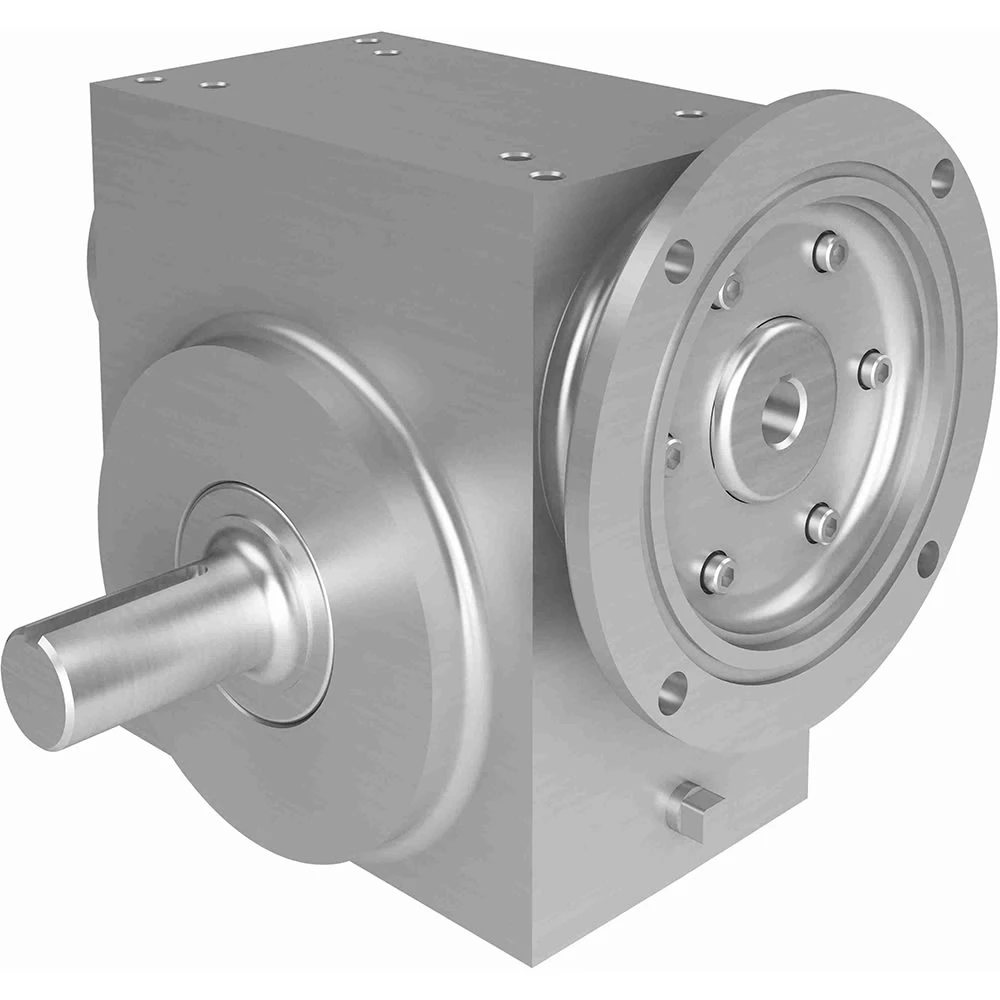

HUB CITY 0270-06621 Worm Reducer, 1.42 Hp, 0.625 Inch I.D, 1.250 Inch O.D, Stainless Steel | AN8ANP

HUB CITY 0270-06621 Worm Reducer, 1.42 Hp, 0.625 Inch I.D, 1.250 Inch O.D, Stainless Steel

Item: AN8ANP

Model: 0270-06621

In Stock

Get it by Thursday, Apr 16

Output Shaft Direction

Ratio

£2696.17/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	2.63"
Center Distance Range	1" to 3 1/4"
Frame Size	56C
Gear Type	Worm Right Angle
Housing Material	Stainless Steel
Hp Range	1 hp to 2 hp
Input Dia.	5/8"
Input Style	C Face Quill
Keyway Size	3/16" x 3/32"
Max. Input Hp	1 21/50 hp
No. Of Gear Reductions	1
Output Dia.	1 1/4"

Output Rpm	35 RPM
Output Shaft	Shaft
Output Shaft Direction	Left
Output Torque Range	1000 lbs.-in. to 2500 lbs.-in.
Overhung Load	1150
Product Line	Stainless Steel Worm Gear Drive
Product Type	Right Angle
Ratio	50:1
Service Factor	1
Style	B
Torque Rating	1843 lbs.-in.

Product Details

Shipping Information

Height	30.48
Length	40.64

Width	30.48
Weight	24.750000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	center distance	input style	ratio	output rpm	frame size	output shaft	output	Price (ex. VAT)	Cart
A	0270-06613	6.693 hp	2.63"	C Face Quill	5:1	350 RPM	56C	Shaft	-	2,246.81
B	0270-06619	2.145 hp	2.63"	C Face Quill	30:1	58.3 RPM	56C	Shaft	-	2,246.81
C	0270-06620	1.695 hp	2.63"	C Face Quill	40:1	43.75 RPM	56C	Shaft	-	2,246.81
D	0270-06622	1.216 hp	2.63"	C Face Quill	60:1	29.2 RPM	56C	Shaft	-	2,246.81
E	0270-06817	6.693 hp	2.63"	C Face Quill	5:1	350 RPM	140TC	Hollow Bore	-	3,044.56
F	0270-06629	2.965 hp	2.63"	C Face Quill	20:1	87.5 RPM	56C	Shaft	-	-	RFQ
G	0270-06834	2.487 hp	2.63"	C Face Quill	25:1	70 RPM	140TC	Hollow Bore	-	3,044.56
