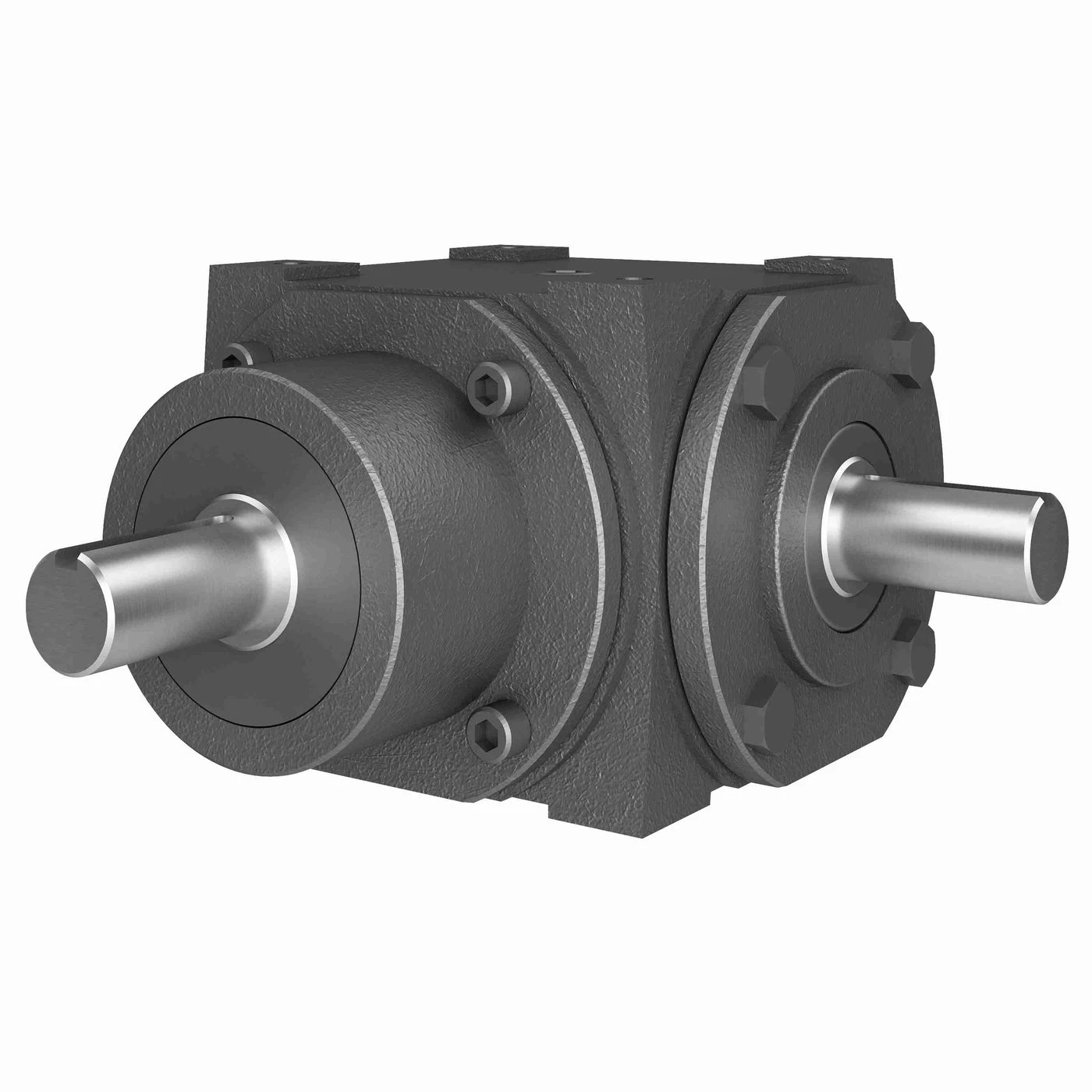

| Item | Bevel Gear Drive |
| Gear Drive Size | 44 |
| Gear Type | Straight Bevel |
| Housing Height | 3 5/8" |
| Housing Length | 5 5/8" |
| Housing Material | Cast Iron |
| Housing Width | 4 31/32" |
| Input Dia. | 3/4" |
| Input Style | Shaft |
| Max. Input Hp | 10 1/20 hp |
| Mounting Type | D, E |
| No. Of Gear Reductions | 1 |
| Output Dia. | 3/4" |
| Output Rpm | 1166.7 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Ratio | 1.5:1 |
| Series Code | 44 |
| Service Factor | 1 |
| Torque Rating | 516 lbs.-in. |
| Weight | 15 lbs. |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
| Model | Price | |
|---|---|---|
| 0220-75460 | £814.57 | |
| 0220-75464 | £1,026.38 | |
| 0220-75467 | £1,329.46 | |
| 0220-75468 | £1,026.38 | |
| 0220-75466 | £1,329.46 | |
| 0220-75471 | £1,329.46 | |
| 0220-75462 | £1,329.46 |
