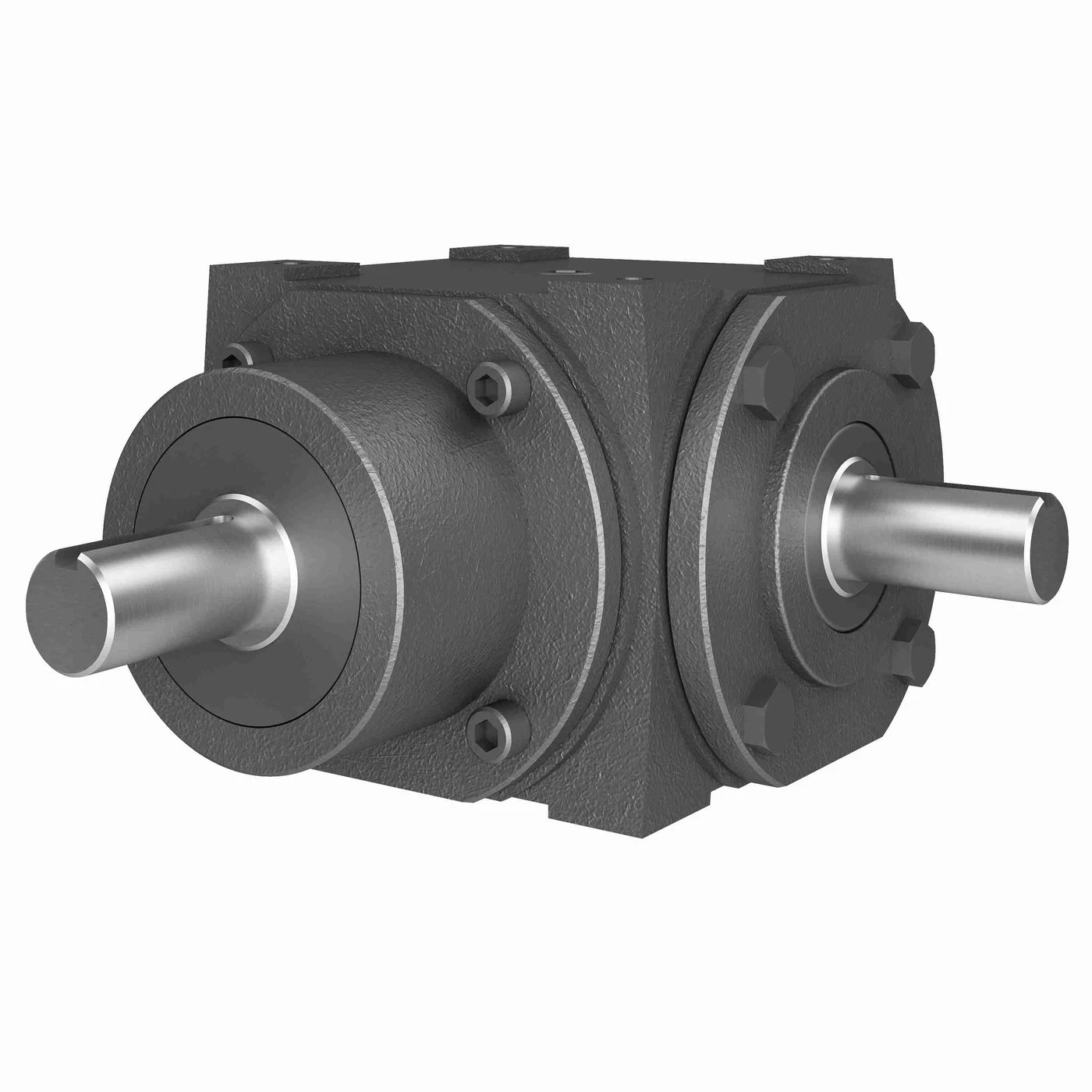

HUB CITY 0220-75467 Bevel Gear Drive, 5.95 HP, 0.750 Inch I.D, 0.750 Inch O.D, Cast Iron
Item: AM8CFY
Model: 0220-75467
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
429 lbs.-in.
875 RPM
Left/Right
£1303.39/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Gear Drive Size | 44 |
|---|---|
| Gear Type | Straight Bevel |
| Housing Height | 3 5/8" |
| Housing Length | 5 5/8" |
| Housing Material | Cast Iron |
| Housing Width | 4 31/32" |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 3/4" |
| Input Hp | 5 19/20 hp |
| Input Hp @ 1750 Rpm | 5 19/20 hp |
| Input Style | Shaft |
| Max. Input Hp | 5 19/20 hp |
| No. Of Gear Reductions | 1 |
|---|---|
| Output Dia. | 3/4" |
| Output Rpm | 875 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 250 lbs.-in. to 500 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 2:1 |
| Service Factor | 1 |
| Style | C, F |
| Torque Rating | 429 lbs.-in. |
Product Details
Bevel Gear Drive
Shipping Information
| height | 19.05 |
|---|---|
| length | 33.66 |
| width | 31.75 |
|---|---|
| weight | 6.030000 |
Related Products
| Style | Model | max. input hp | output rpm | ratio | gear type | input style | housing material | no. of gear reductions | output shaft | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0220-75460 | 19 24/25 hp | 1750 RPM | 1:1 | Straight Bevel | Shaft | Cast Iron | 1 | Shaft | 798.60 | |
| B | 0220-75464 | 19 24/25 hp | 1750 RPM | 1:1 | Straight Bevel | Shaft | Cast Iron | 1 | Shaft | 1,006.25 | |
| C | 0220-75468 | 19 24/25 hp | 1750 RPM | 1:1 | Straight Bevel | Shaft | Cast Iron | 1 | Shaft | 1,006.25 | |
| D | 0220-75466 | 10 1/20 hp | 1166.7 RPM | 1.5:1 | Straight Bevel | Shaft | Cast Iron | 1 | Shaft | 1,303.39 | |
| E | 0220-75471 | 5 19/20 hp | 875 RPM | 2:1 | Straight Bevel | Shaft | Cast Iron | 1 | Shaft | 1,303.39 | |
| F | 0220-75470 | 10 1/20 hp | 1166.7 RPM | 1.5:1 | Straight Bevel | Shaft | Cast Iron | 1 | Shaft | 1,303.39 | |

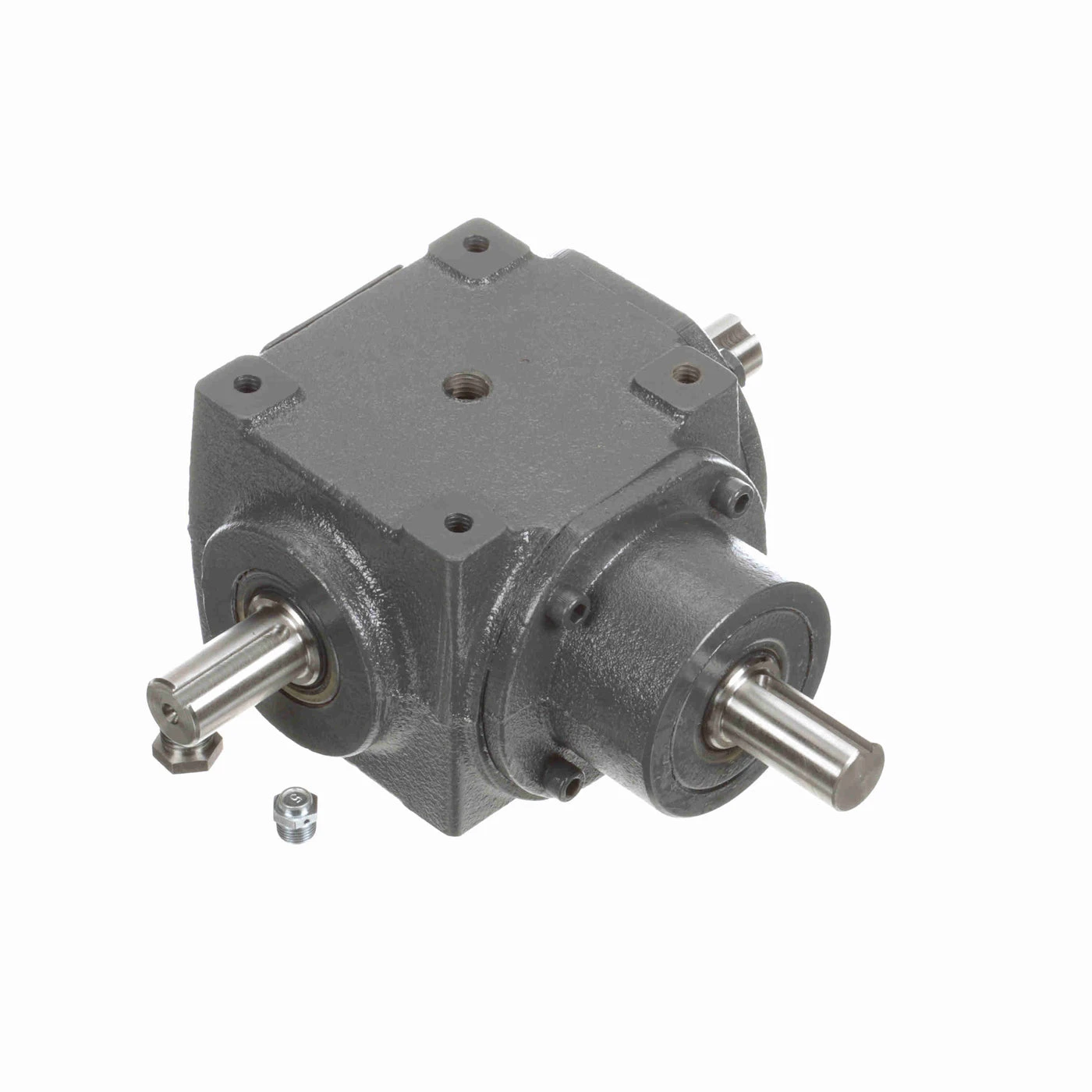

| G | 0220-75462 | 10 1/20 hp | 1166.7 RPM | 1.5:1 | Straight Bevel | Shaft | Cast Iron | 1 | Shaft | 1,303.39 |
