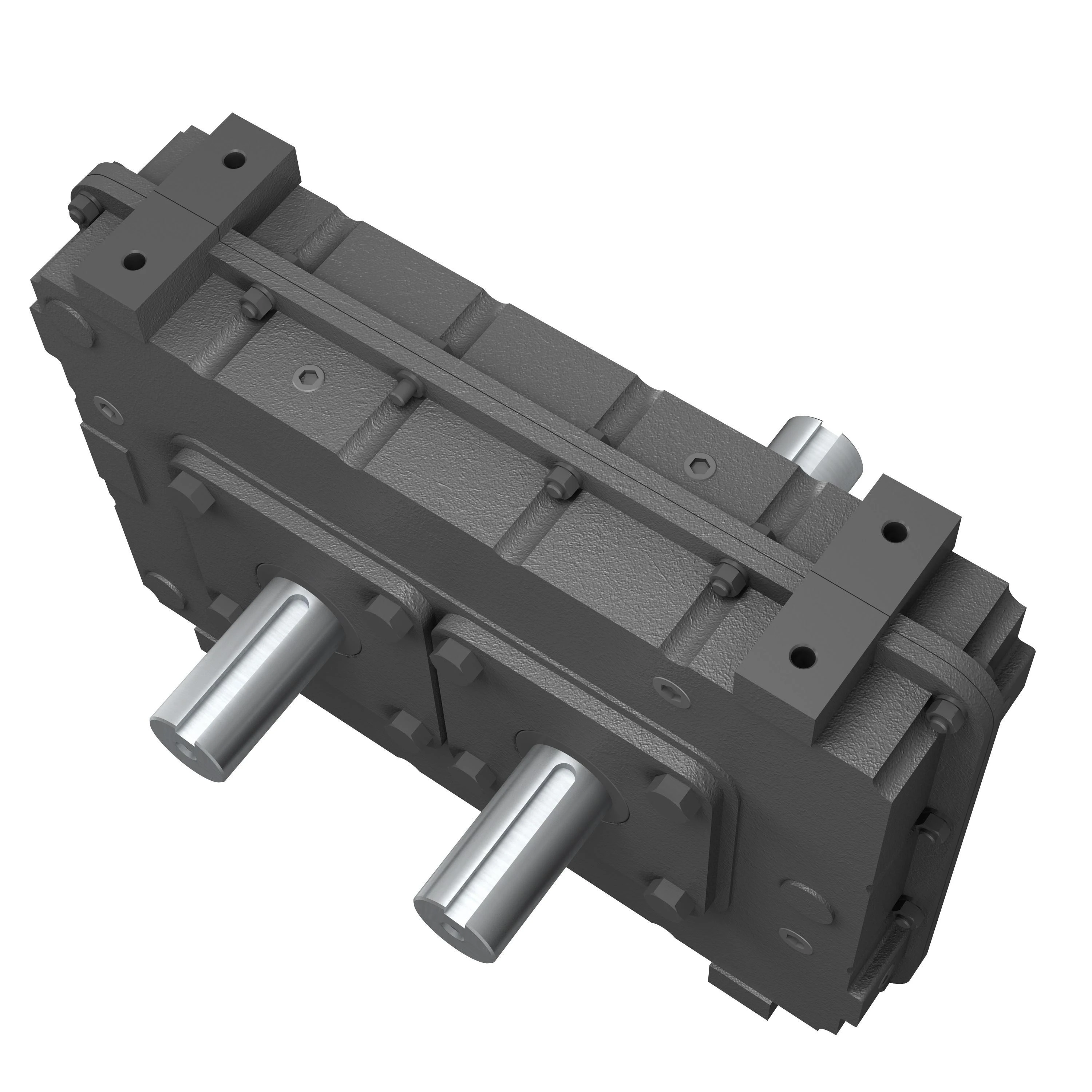

HUB CITY 0220-74812 Parallel Shaft Drive, 1:1 Ratio, 405.8 HP, 2.5 Inch I.D, 2.5 Inch O.D, Cast Iron
Item: AM2XXC
Model: 0220-74812
In Stock
Get it by Friday, Apr 17
£11257.63/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 8 1/2" |
|---|---|
| Dimensions | 19" x 26 7/16" |
| Gear Ratio | 1:1 |
| Gear Type | H |
| Housing Material | Cast Iron |
| Hp | 405 4/5 hp |
| Input Dia. | 2 1/2" |
| Input Hp | 405 4/5 hp |
| Input Hp @ 1750 Rpm | 405 4/5 hp |
| Input Keyway Size | 5/8" x 5/16" |
| Input Style | Shaft |
| Input Type | Shaft |
| Lubrication Type | Oil |
| Material | Cast Iron |
| Mounting Type | Shaft |
| Output Dia. | 2 1/2" |
|---|---|
| Output Keyway Size | 5/8" x 5/16" |
| Output Rpm | 1750 RPM |
| Output Shaft | Shaft |
| Output Torque Range | 10000 lbs.-in. to 20000 lbs.-in. |
| Output Type | Shaft |
| Product Datasheet | hub-city-0220-74812.pdf |
| Product Line | Parallel Shaft Drive |
| Product Type | Parallel |
| Ratio | 1:1 |
| Series | 290 Series |
| Service Factor | 1 |
| Style | Do |
| Torque Rating | 14613.6 lbs.-in. |
| Type | Type H Single Reduction Style DO |
Product Details
Shipping Information
| Height | 60.96 |
|---|---|
| Length | 121.92 |
| Width | 60.96 |
|---|---|
| Weight | 150.750000 |
Related Products
| Style | Model | max. input hp | output rpm | ratio | gear type | series | gear ratio | mounting type | center distance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0220-74802 | - | 875 RPM | 2:1 | H | - | - | - | 8 1/2" | 7,445.53 | |
| B | 0220-74804 | 166 3/5 hp | 437.5 RPM | 4:1 | H | - | - | - | 8 1/2" | 9,875.55 | |
| B | 0220-74803 | 199 3/10 hp | 583.3 RPM | 3:1 | H | - | - | - | 8 1/2" | 8,229.62 |
