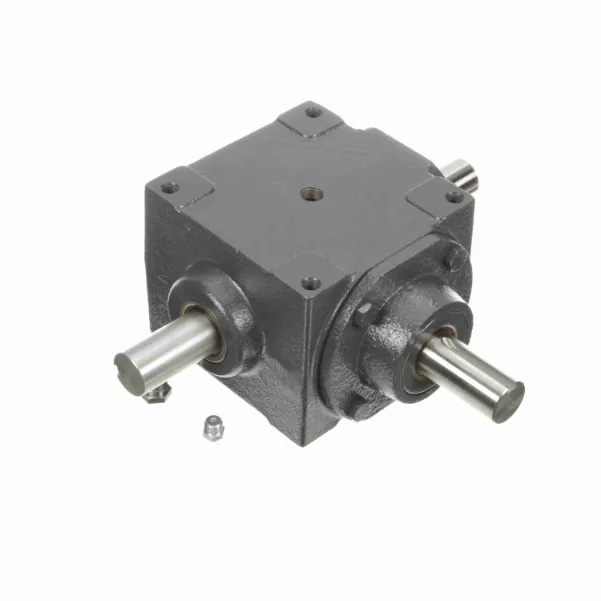

HUB CITY 0220-00818 Bevel Gear Drive, 6.25 HP, 1 Inch I.D, 1 Inch O.D, Cast Iron

Item: AX4HEN
Model: 0220-00818
In Stock

Get it by Wednesday, Apr 15

£1078.76/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Dimensions 10 3/16" x 8 9/32" x 4 1/8"
Efficiency 97.5%
Gear Drive Size 150
Gear Ratio 2:1
Gear Type Straight Bevel
Housing Height 4 1/8"
Housing Length 6 9/32"
Housing Material Cast Iron
Housing Width 6 3/16"
Hp 6 1/4 hp
Hp Range 5 hp to 7 1/2 hp
Input Dia. 1"
Input Hp 6 1/4 hp
Input Hp @ 1750 Rpm 6 1/4 hp
Input Keyway Size 1/4" x 1/8"
Input Length 2"
Input Max. Speed 1750 RPM
Input Style Shaft
Input Type Shaft
Lubrication Type Conventional Oil
Material Cast Iron
Max. Input Hp 6 1/4 hp
Mounting Type Four Bolt Surface
No. Of Gear Reductions 1
Output Dia. 1"
Output Max. Speed 875 RPM
Output Rpm 875 RPM
Output Shaft Shaft
Output Shaft Direction Double
Output Torque Range 250 lbs.-in. to 500 lbs.-in.
Output Type Shaft
Product Line Bevel Gear Drives
Product Type Right Angle
Ratio 2:1
Series 150 Series
Service Factor 1
Style A, B
Torque Rating 442 lbs.-in.
Type Right Angle Straight Single Reduction Style A B

Product Details

Bevel Gear Drive

Shipping Information

height 19.05
length 33.66
width 31.75
weight 9.990000
