GROVE GEAR

See our 858 reviews on trustpilot

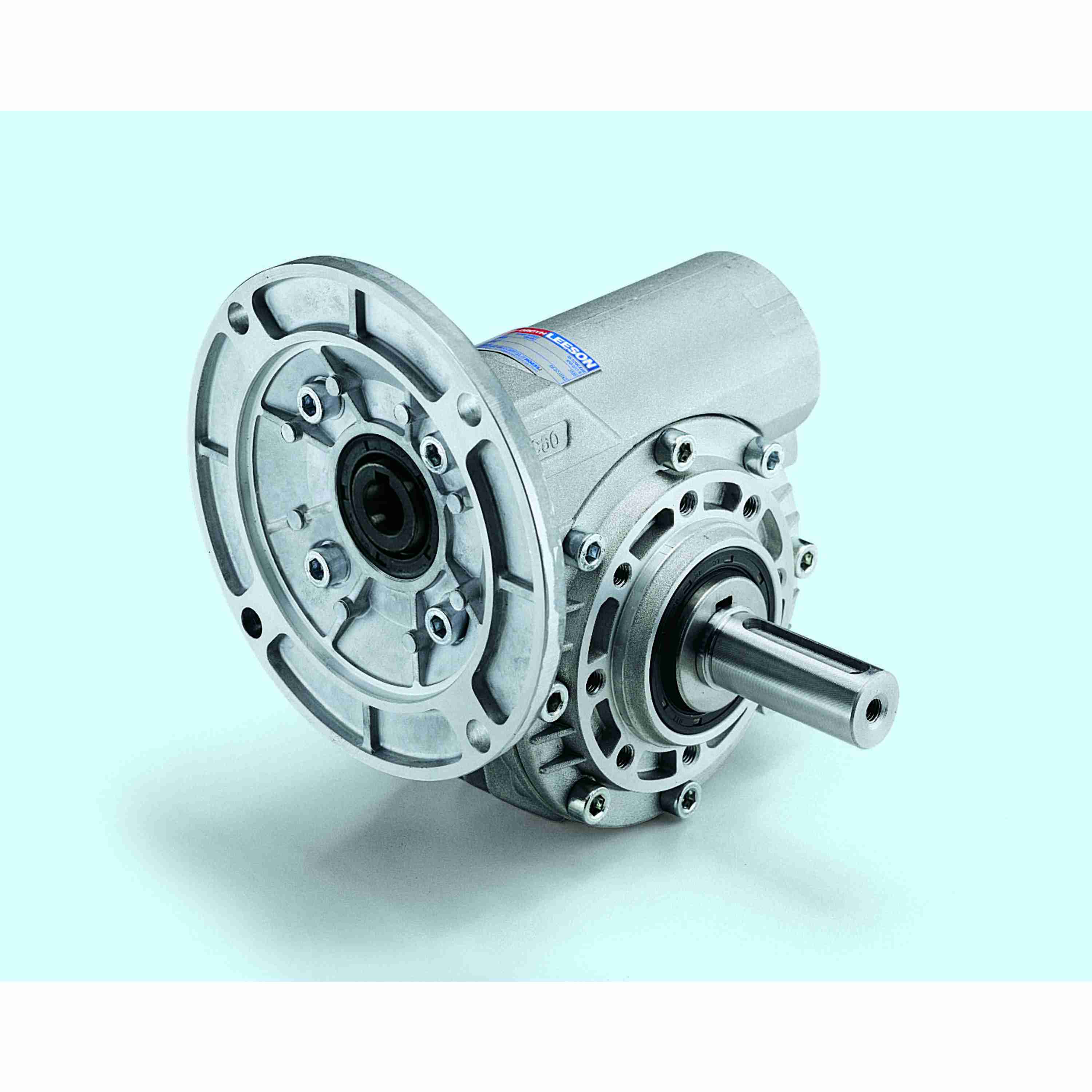

GROVE GEAR W5180048.00 BMQ518-60-R-56 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Right Angle Aluminum

Item: AY7XAL
Model: W5180048.00
16 In Stock

Ships within 2 days via

Ratio
£692.58/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Assembly BMQ-R
Center Distance 1.77"
Frame 56C
Housing Material Aluminum
Input Bore (c Face) 5/8"
Input Dia. 5/8"
Input Keyway Size 3/16" x 1"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Rpm 1750 RPM
Input Style C Face Quill
Max. Input Hp 0.363 hp
Mounting Type Base
No. Of Gear Reductions 1
Output Diameter 3/4"
Output Hp 0.203 hp
Output Key Size 3/16" x 1"
Output Rpm 29 RPM
Output Shaft Shaft
Output Shaft Assembly Code R
Output Shaft Orientation R
Output Style R
Output Torque 442 lbs.-in.
Overhung Load 405 lbs.
Product Line Bravo Series - Compact Aluminum Worm Speed Reducers
Reducer Worm - Right Angle
Reduction Type Single
Series Bravo Series
Series Style BMQ-R
Service Factor 1
Shaft Seal Material Nitrile

Product Details

Shipping Information

Height 26.67
Length 27.15
Width 23.01
Weight 3.150000
