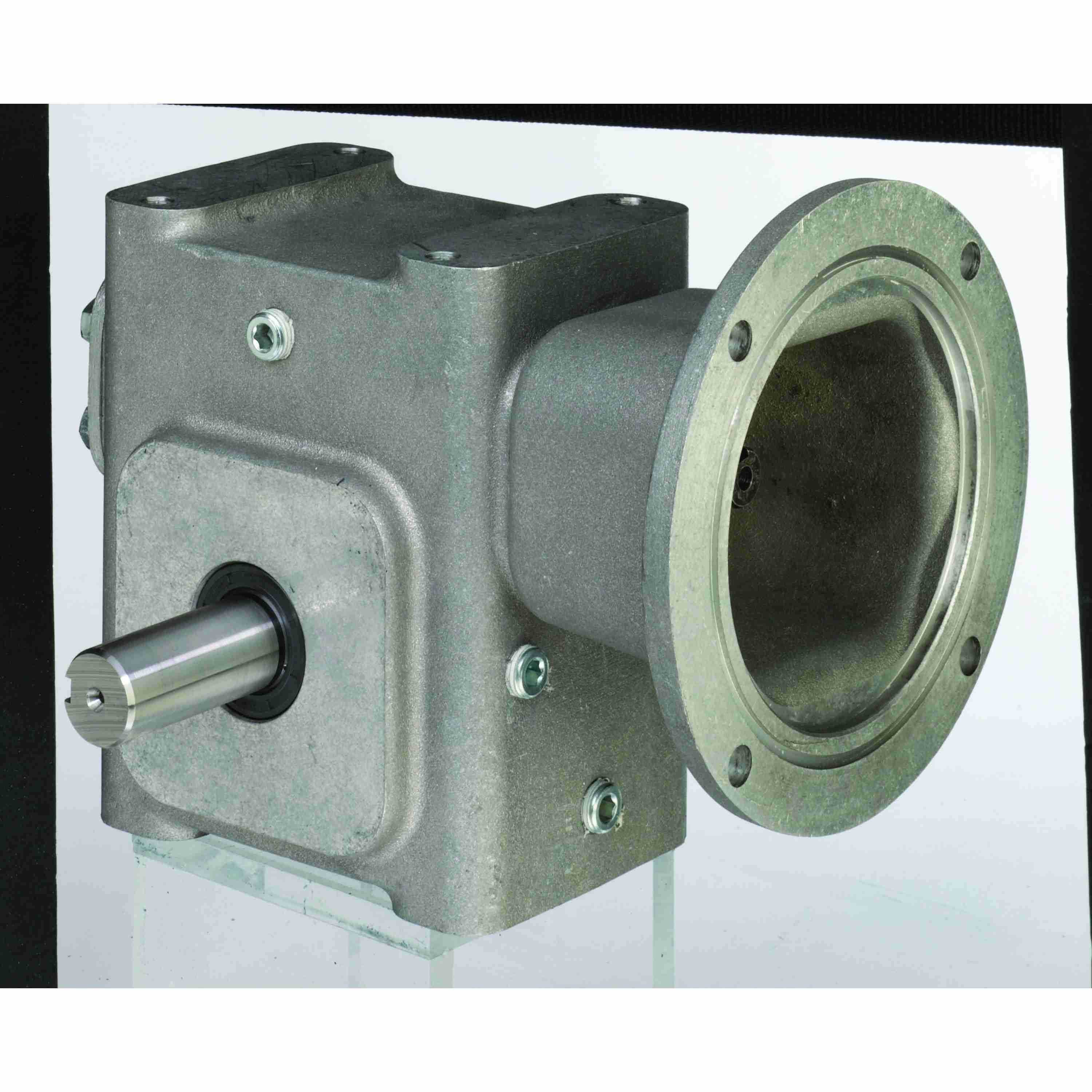

GROVE GEAR EL8213004.00 EL-WBMQ821-15-L-56 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum
Item: AY6PBW
Model: EL8213004.00
In Stock
Get it by Wednesday, Apr 15
£1128.91/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | WBMQ-L |
|---|---|
| Center Distance | 2.06" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Quill Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Max. Input Hp | 1.887 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
| Output Hp | 1.661 hp |
| Output Rpm | 116 RPM |
| Output Shaft | Shaft |
|---|---|
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Output Torque | 897 lbs.-in. |
| Overhung Load | 1125 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-WBMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 0.87" |
Product Details
Reducer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 8.550000 |
Related Products
| Style | Model | output torque | max. input hp | gear type | mounting type | gear ratio | center distance | output rpm | output shaft | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | EL8210010.00 | - | 0.674 hp | - | Base | 60:1 | 2.06" | - | - | 1,269.23 | |
| B | EL8210018.00 | 985 lbs.-in. | 1.333 hp | Worm | Base | - | 2.06" | 70 RPM | Solid Shaft | 1,269.23 | |
| C | EL8210148.00 | 897 lbs.-in. | 1.887 hp | Worm | Base | - | 2.06" | 116 RPM | Solid Shaft | 1,376.46 | |
| B | EL8212139.00 | - | - | - | - | - | 2.1" | - | - | 1,061.11 | |
| D | EL8210534.18 | 940 lbs.-in. | 0.674 hp | Worm | Shaft Mount | - | 2.06" | 29 RPM | Hollow Bore | 1,749.95 | |
| E | EL8210073.00 | 614 lbs.-in. | 3.653 hp | Worm | Base | - | 2.06" | 350 RPM | Solid Shaft | 1,376.46 | |
| F | EL8210538.19 | 692 lbs.-in. | 2.793 hp | Worm | Shaft Mount | - | 2.06" | 233 RPM | Hollow Bore | 1,749.95 |
