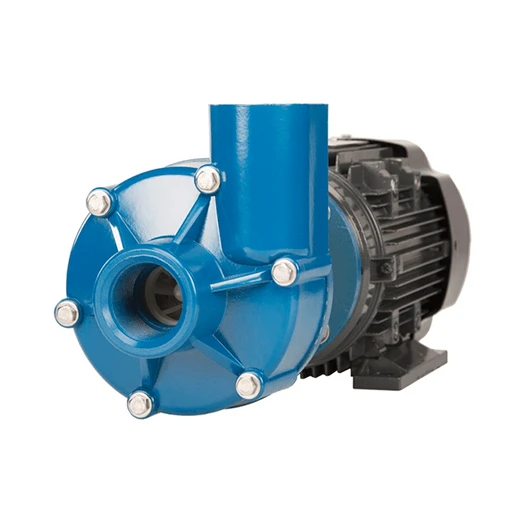

FINISH THOMPSON GP11 Sealed Pump, 10 to 126.4 gpm Flow Range, 35 psi Maximum Working Pressure

Item: DZ2LHY
Model: GP11
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Configuration Horizontal
Connection Type NPT, BSP
Construction Materials Polypropylene, PVDF
Discharge Port Size 1 1/2"
Elastomer Materials Fkm, Epdm, Kalrez
Flow Range 10-126.4  GPM
Maximum Head 81.9 ft.
Maximum Specific Gravity Greater Than 1.8
Maximum Temperature 180°F
Maximum Working Pressure 35 psi
O-ring Material Fkm, Epdm
Power Range 2/5 hp to 16/5 hp
Product Datasheet finish-thompson-gp11.pdf
Rotating Face Materials Carbon, GF PTFE, Siliconized Carbon, Sic
Seal Type Bellows, Multispring, Double
Stationary Face Materials High Purity Ceramic, Sic, Ni Resist
Suction Port Size 1 1/2"
Type Mechanically Sealed

Product Details

Shipping Information

country of origin US
