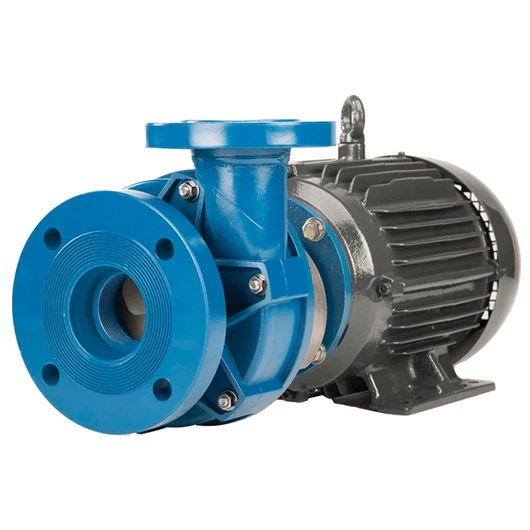

FINISH THOMPSON GP32 Sealed Pump, 15 to 200.9 gpm Flow Range, 55 psi Maximum Working Pressure

Item: DZ2LMN
Model: GP32
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Configuration Horizontal
Connection Type Flange
Construction Materials Polypropylene, PVDF
Discharge Port Size 2"
Elastomer Materials Fkm, Epdm, Kalrez
Flow Range 15-200.9 GPM
Maximum Head 123 ft.
Maximum Specific Gravity Greater Than 1.8
Maximum Temperature 180°F
Maximum Working Pressure 55 psi
O-ring Material Fkm, Epdm
Power Range 3/2 hp to 26/5 hp
Product Datasheet finish-thompson-gp11.pdf
Rotating Face Materials Carbon, GF PTFE, Siliconized Carbon, Sic
Seal Type Bellows, Multispring, Double
Stationary Face Materials High Purity Ceramic, Sic, Ni Resist
Suction Port Size 3"
Type Mechanically Sealed

Product Details

Shipping Information

Country Of Origin US
