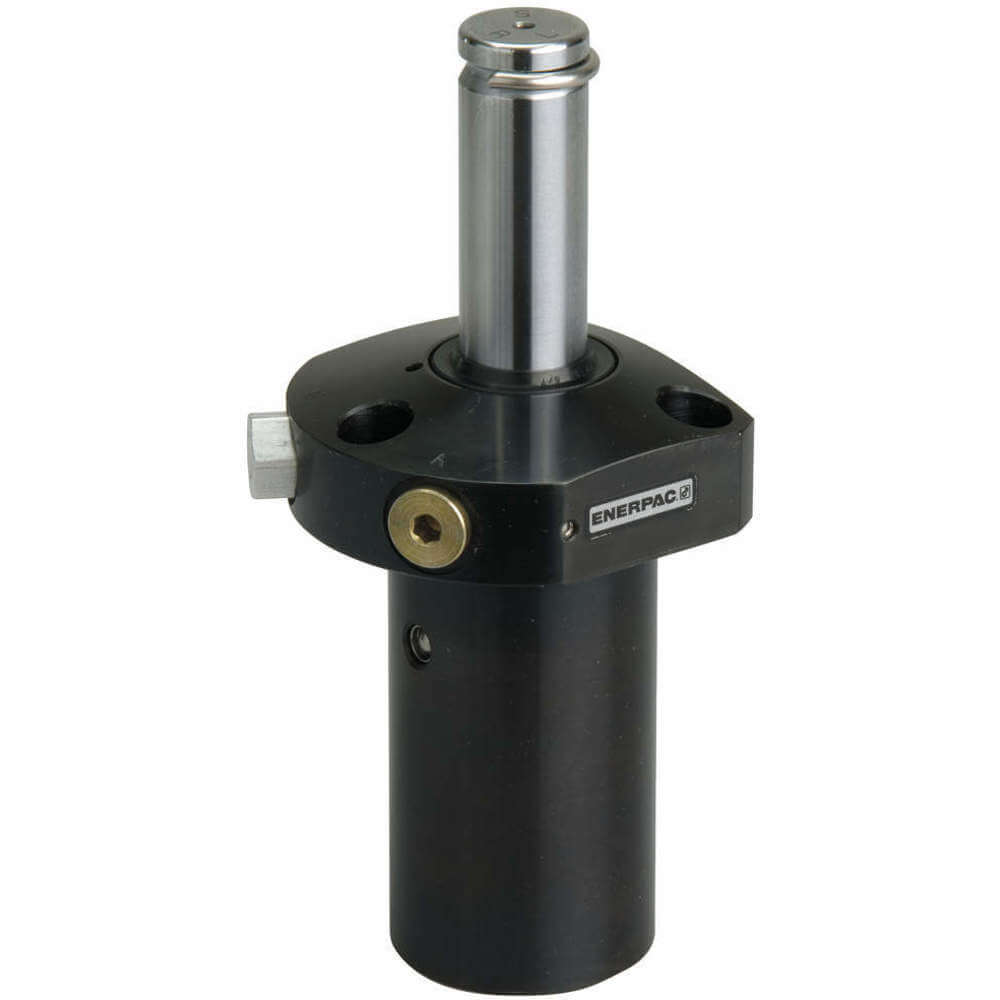

| Item | Clamp Arm |
| Body Material | Steel |
| Body Style | Upper Flange |
| Clamping Force | 2400 lbs. |
| Clamping Stroke | 1/2" |
| Cylinder Return Type | Single Acting |
| Cylinder Type | Swing |
| Dimension A | 6 3/4" |
| Dimension B | 3.37" |
| Dimension C | 1 2/25" |
| Dimension D | 1.87" |
| Dimension D1 | 2.62" |
| Dimension D2 | 2 22/25" |
| Dimension F | 0.87" |
| Dimension G | #4 |
| Dimension H | 0.39" |
| Dimension K | 1 1/5" |
| Dimension N | 0.99" |
| Dimension P | 2" |
| Dimension S | 2.048" |
| Dimension T | 2 11/25" |
| Dimension U | 2 1/2" |
| Dimension V | 0.347" |
| Extended Height | 6 3/4" |
| Function | Single Acting |
| Material | Steel |
| Material Of Construction | Steel |
| Max. Operating Pressure | 5000 psi |
| Max. Pressure | 5000 psi |
| Min. Hole Depth | 22/25" |
| Min. Operating Pressure | 500 psi |
| Mounting Hole Dia. | 0.347" |
| Mounting Style | Upper Flange |
| Mounting Type | Upper Flange |
| Number Of Bolts | 3 |
| Outside Dia. | 1 22/25" |
| Pressure Range | 500 psi to 5000 psi |
| Pressure Rating | 500 psi to 5000 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Rotation | Left |
| Single Acting/double Acting | Single Acting |
| Stroke | 1 3/25" |
| Swing Angle | 90° |
| Total Stroke | 1.1" |
| Turns | Left |
| Type | Swing |
| Ship weight (kg) | 1.92 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 24.64 |
| Ship width (cm) | 9.14 |
| HS code | 8412210030 |
| Country of Origin | US |
| Product | Model | Clamping Force | Clamping Stroke | Cylinder Effective Area Clamp | Cylinder Effective Area Unclamp | Cylinder Return Type | Dimension A | Dimension B | Dimension C | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SURS21 | 475 lbs. | 0.32" | 0.12 sq. in. | - | Single Acting | 4.41" | 2.32" | 1.05" | £637.50 | |
 |
SURS51 | 1100 lbs. | 0.39" | 0.28 sq. in. | - | Single Acting | 5.33" | 2.73" | 1.08" | £697.68 | |
 |
SURS121 | 2400 lbs. | 0.5" | 0.63 sq. in. | - | Single Acting | 6.75" | 3.37" | 1.08" | £795.60 | |
|
SULS21 | 475 lbs. | 0.32" | 0.12 sq. in. | - | Single Acting | 4.41" | 2.32" | 1.05" | £637.50 | |
|
SULS51 | 1100 lbs. | 0.39" | 0.28 sq. in. | - | Single Acting | 5.33" | 2.73" | 1.08" | £697.68 | |
 |
SURD21 | 500 lbs. | 0.32" | 0.12 sq. in. | 0.24 sq. in. | Double Acting | 4.41" | 2.32" | 1.05" | £637.50 | |
 |
SURD51 | 1250 lbs. | 0.39" | 0.28 sq. in. | 0.59 sq. in. | Double Acting | 5.33" | 2.73" | 1.08" | £697.68 |
