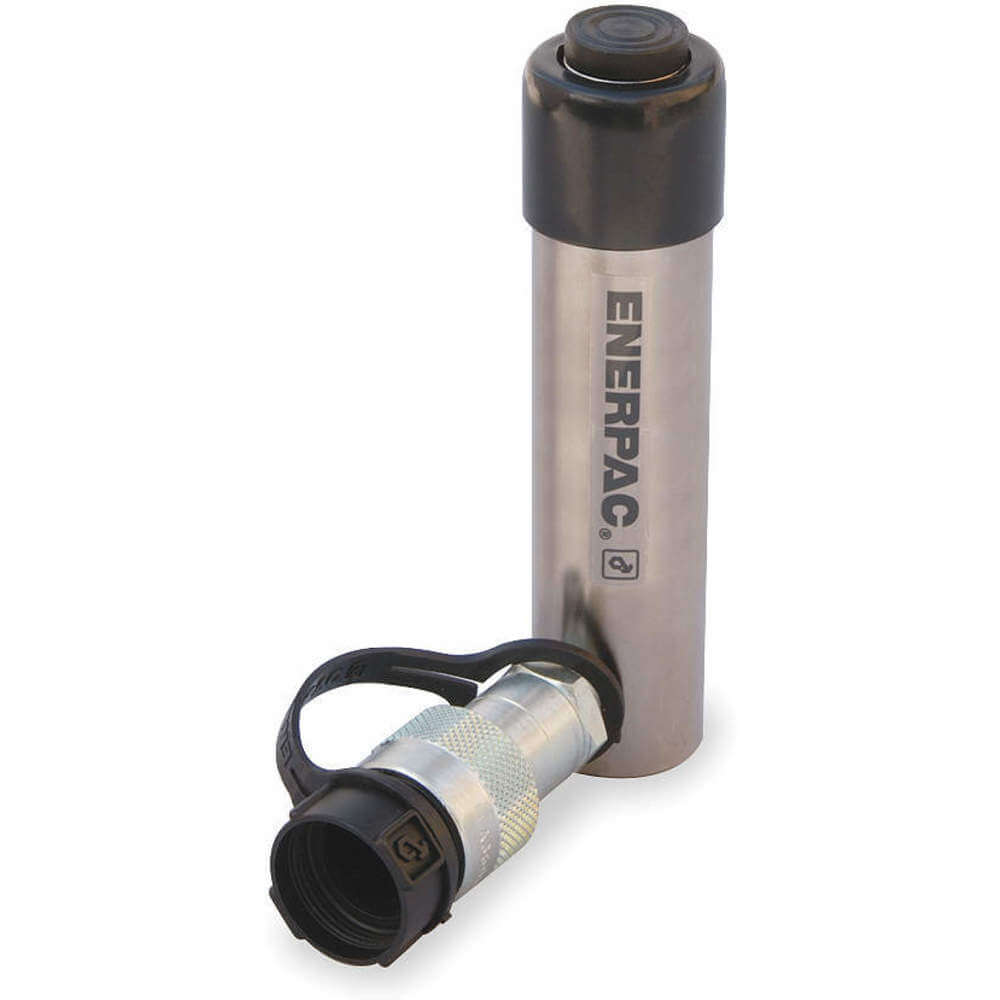

| Item | Hydraulic Cylinder |
| Base Bolt Circle Dia. | 1" |
| Body Finish | Nickel Plated |
| Body Material | Steel |
| Bolt Circle Dia. | 1" |
| Collapsed Height | 6 1/2" |
| Cylinder Type | Extreme Environment , General Purpose |
| Extended Height | 9 1/2" |
| Finish | Nickel Plated , Nickel-Plated |
| Handle | Yes |
| Includes | Coupler, Dust Cap |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Nominal Stroke Length | 3" |
| Oil Capacity | 2.98 cu. in. |
| Outside Dia. | 1 1/2" |
| Plunger Dia. | 1" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 3" |
| Thread Size | 1/4"-20 |
| Weighing Capacity | 5 ton. |
| Ship weight (kg) | 1.56 |
| Ship height (cm) | 19 |
| Ship length (cm) | 24.38 |
| Ship width (cm) | 4.39 |
| HS code | 8425420000 |
| Country of Origin | CN |
| Model | Capacity | Cylinder Effective Area Advance | Max. Cylinder Capacity Advance | Oil Capacity Advance | Outside Dia. | Stroke | Price | |
|---|---|---|---|---|---|---|---|---|
| RC106NV | 10 ton. | 2.24 sq. in. | 11.2 short ton. | 13.7 cu. in. | 2.25" | 6" | £1,421.82 | |
| RC102NV | 10 ton. | 2.24 sq. in. | 11.2 short ton. | 4.75 cu. in. | 2.25" | 2" | £1,021.91 | |
| RC256NV | 25 ton. | 5.16 sq. in. | 25.8 short ton. | 32.23 cu. in. | 3.38" | 6" | £2,946.23 |
