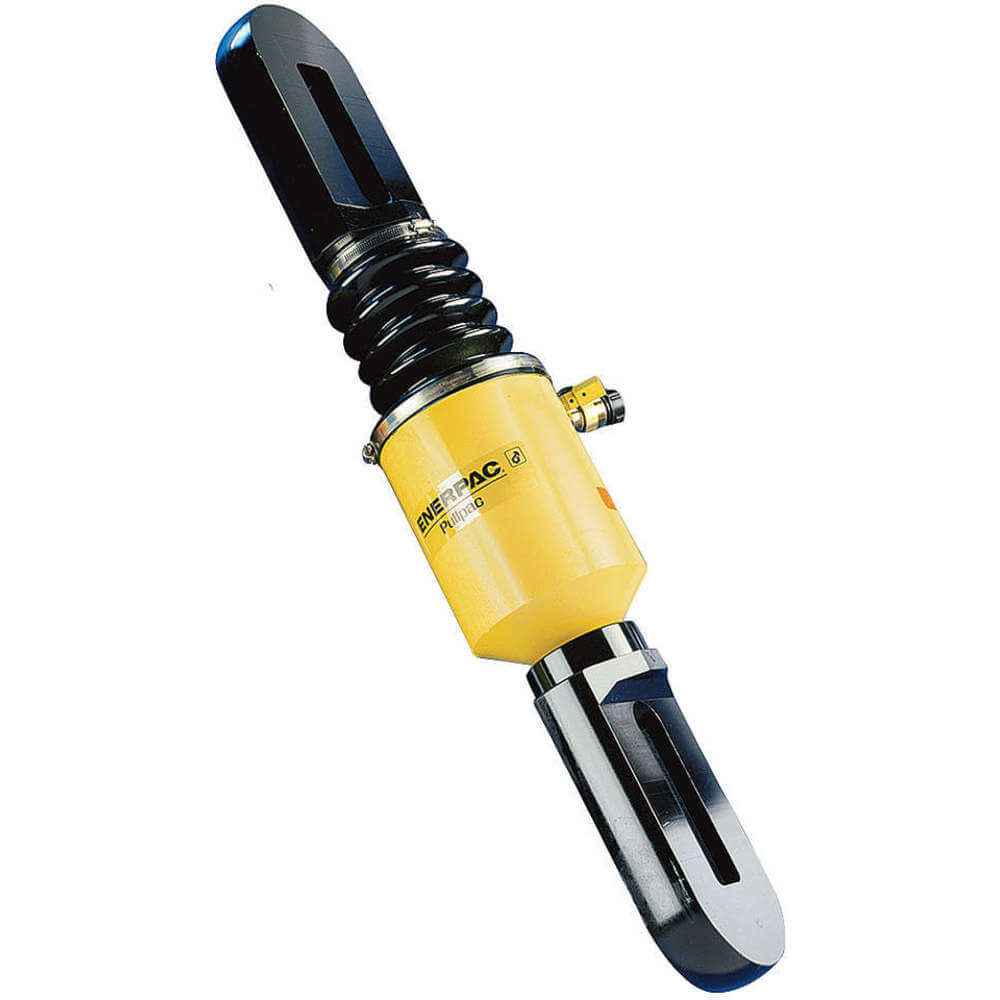

| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Center Hole Dia. | 4.333" |
| Collapsed Height | 28 7/25" |
| Cylinder Bore | 4.33" |
| Cylinder Type | Pull |
| Extended Height | 34 7/25" |
| Finish | Paint |
| Handle | No |
| Includes | Slotted Link |
| Link Width | 1.89" |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Mounting Hole Dia. | 5.93" |
| Nominal Stroke Length | 6" |
| Oil Capacity | 70.43 cu. in. |
| Outside Dia. | 5.51" |
| Plunger To Mounting Hole | 1.58" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Saddle Diameter | 5 3/25" |
| Single Acting/double Acting | Single Acting |
| Slot To Link End | 2 14/25" |
| Stroke Length | 6" |
| Weighing Capacity | 60 ton. |
| Oil Capacity Pull | 67.02 cu. in. |
| Retracted Height | 28.28" |
| Ship weight (kg) | 65.25 |
| Ship height (cm) | 82.6 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 16.08 |
| HS code | 8425420000 |
| Country of Origin | CN |
| Model | Capacity | Cylinder Bore | Cylinder Effective Area Retract | Link Width | Max. Cylinder Capacity Retract | Mounting Hole Dia. | Oil Capacity Retract | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BRP106C | 10 ton. | 2.13" | 2.45 sq. in. | 1.38" | 11.6 short ton. | 3.43" | 14.58 cu. in. | 3.35" | £4,177.92 | |
| BRP106L | 10 ton. | 2.13" | 2.45 sq. in. | 1.19" | 11.6 short ton. | 4.69" | 14.58 cu. in. | 3.35" | £2,597.94 | |
| BRP306 | 30 ton. | 3.5" | 7.19 sq. in. | 1.57" | 35.95 short ton. | 6.1" | 43.63 cu. in. | 5.39" | £6,625.92 |
