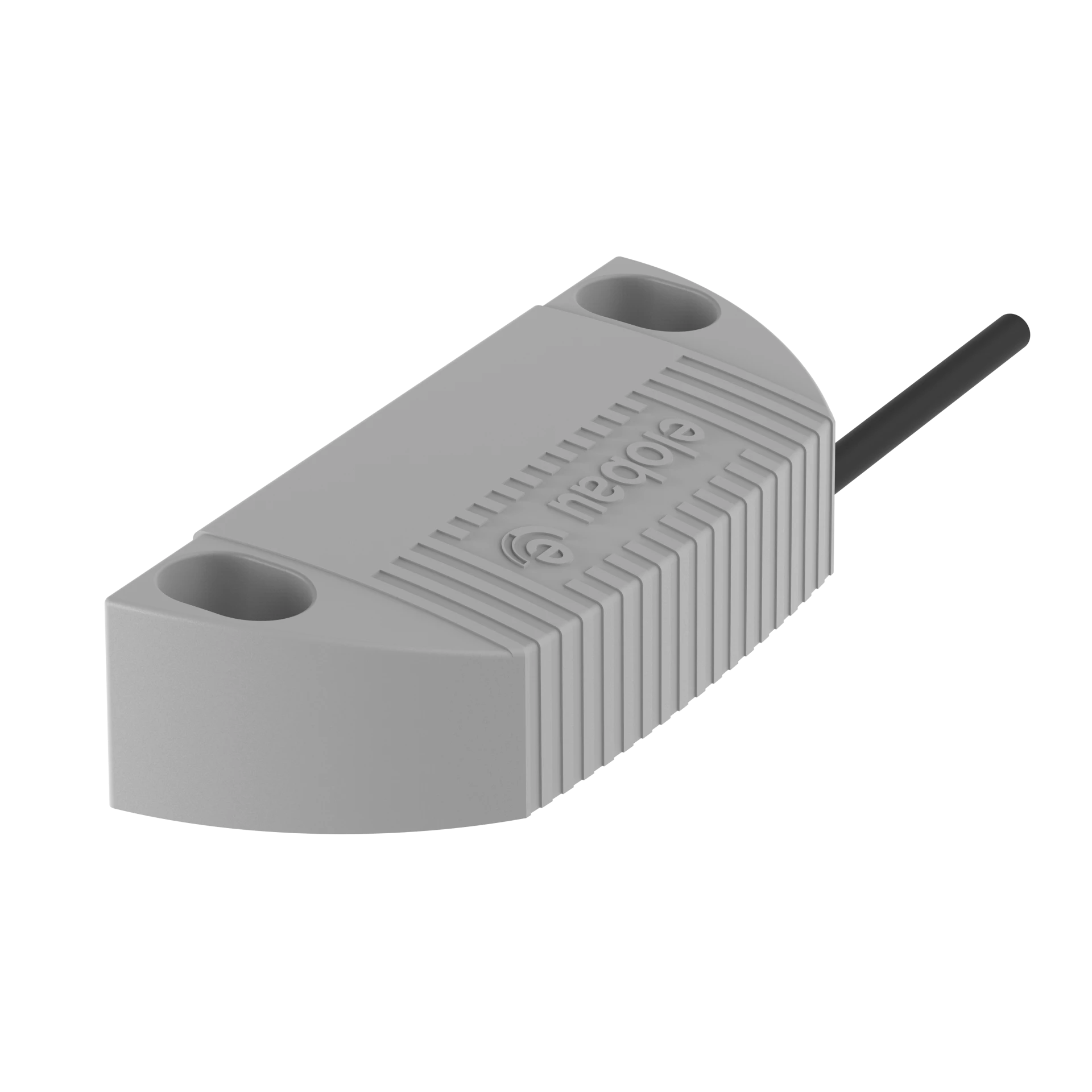

Item | Sensor |
Cable Color | Dark grey |
Cable Length | 1 m |
Cable Material | PVC |
Cable Size | 4 mm x 0.14 mm |
Cable Type | LiYY |
Connection Size | 0.14 Sq. mm |
Contact Type | S/S |
Control | Frontal |
Degree Of Pollution | 3 |
Detent Present | No |
Fastening Type | Screw |
Housing Color | Gray |
Housing Design | Rectangular |
Housing Material | PBT |
Installation | Any |
IP Rating | IP67 |
Led Display | No |
Max. Operating Temp. | 75 Deg. C |
Max. Storage Temp. | 75 Deg. C |
Max. Switching Capacity | 3w |
Max. Switching Current | 0.1A |
Max. Voltage | 28.8V DC |
Min. Cable Temp. Range, Moving | -5 Deg. C |
Min. Operating Temp. | -25 Deg. C |
Min. Storage Temp. | -25 Deg. C |
Min. Voltage | 19.2V DC |
Minimum Mounting Distance | 50 mm |
Minimum Switching Distance | 0.5 mm |
Non Flush Mountable | Yes |
Number of Strands | 4 |
Protection Class | Class III |
Safe Switch-Off Distance | 14 mm |
Safe Switching Distance | 8 mm |
Series Resistor | 22 Ohm |
Shock Resistance | 30g/ 11ms |
Size | 26 mm x 67 mm x 15 mm |
Switching Frequency | 5 Hz |
Switching Principle | Magnetic |
Technology | Reed |
Torque For Fastening Screws | 1 Nm |
Vibration Resistance | 10 Hz to 55 Hz |
Model | Cannot Be Mounted Flush | Actuation Frequency | Actuation Type | Connection Size | Connector Size | Connector Type | Contact Form | Continuous Shock Resistance | Price | |
---|---|---|---|---|---|---|---|---|---|---|
171V62AY | Yes | - | Front | - | M12 x 1 | 4 Pin | NO/ NO | - | £127.40 | RFQ
|
114270A0D | - | - | Front | - | M8 x 1 | 4 Pin | NO/ NC | - | £126.46 | RFQ
|
171V62VY | Yes | - | Front | - | M12 x 1 | 4 Pin | NO/ NO | - | £317.00 | RFQ
|
114270-5 | - | - | Front | - | - | - | NO/ NC | - | £151.31 | RFQ
|
153V62-10 | - | - | - | - | - | - | - | - | £183.68 | RFQ
|
165270-5 | - | - | - | - | - | - | - | - | £137.78 | RFQ
|
120272-5 | - | - | Front | - | - | - | NO/ NC | - | £143.42 | RFQ
|
