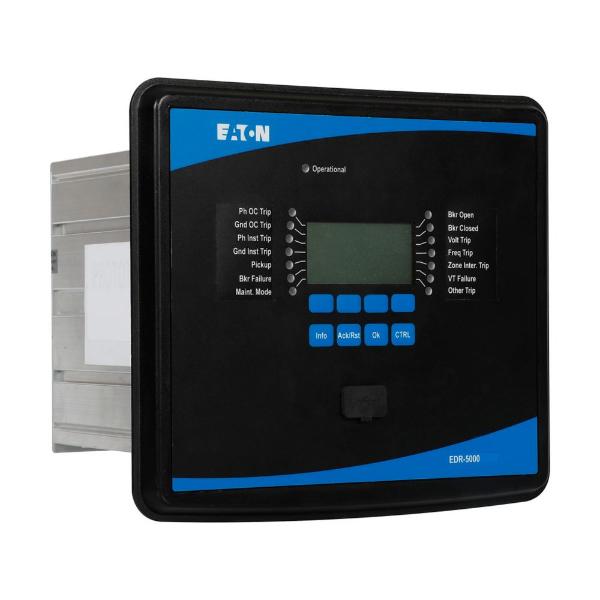

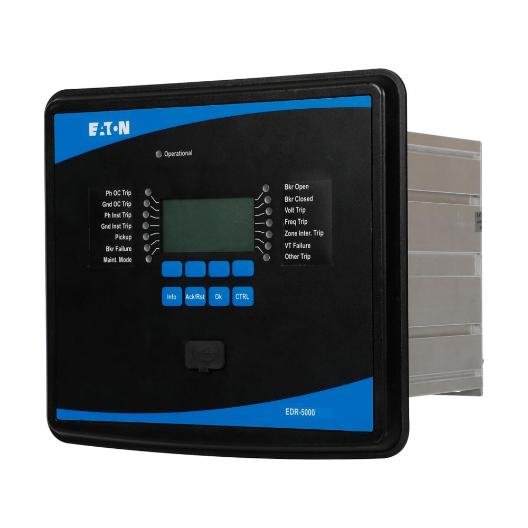

EATON EDR-5000-2A1HA1 Current/Voltage/Power Protection Distribution Relay, 40 to 250 VAC, 19 to 300 VDC Supply
Item: BJ4BJA
Model: EDR-5000-2A1HA1
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£20202.26/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Analog Inputs | 0 |
|---|---|
| Analog Outputs | 0 |
| Application | Feeder |
| Base Relay | EDR-5000 |
| Communications | 61850 or Mbus TCP or DNP3 TCP/UDP over Enet RJ45 |
| Current Sensing Inputs | 1 |
| Frequency Rating | 50/60 Hz |
| Height | 8.7" |
| I/o Options | Sensitive Ground Input Trip Coil Monitor IRIG-B |
| Length | 8.05" |
| Modbus / Dnp3 Tcp | Over Ethernet RJ-45 |
| Mounting Type | Projection |
| Number Of Inputs | 8 |
|---|---|
| Number Of Outputs | 11 |
| Phase Amps | 5A, 1A |
| Power Consumption | 40-250V AC/19-300V DC |
| Power Supply Range | 19-300V DC/40-250V AC |
| Sensing Inputs | Voltage Protection and Metering Power Protection and Metering Current Protection and Metering |
| Terminals | Removable |
| Type | Distribution Relay |
| Voltage Sensing Inputs | 1 |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 9 18/25" |
| Zone Selective Interlocking | 1 |
Product Details
Relay
Shipping Information
| height | 22.1 |
|---|---|
| length | 20.45 |
| width | 24.69 |
| country of origin | US |
|---|---|
| weight | 4.166600 |
