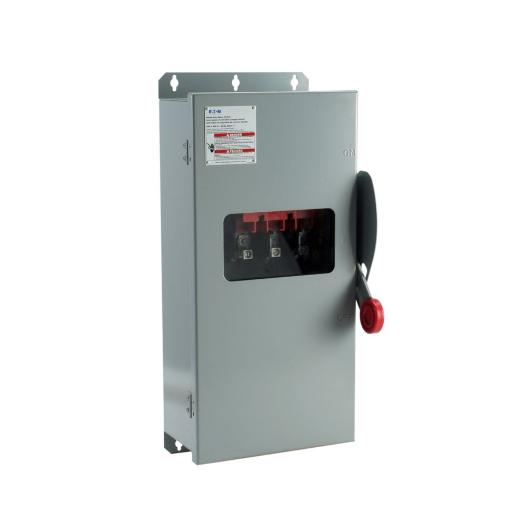

EATON DH363FDKW-USS6 Fusible Safety Switch With Upper Viewing Window, 600VAC, 100 40 Hp, 75 Hp, 3P
Item: BJ2JJT
Model: DH363FDKW-USS6
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 100A |
|---|---|
| Enclosure Material | Galvanized Steel |
| Fuse Class Provision | Class R |
| Fuse Configuration | Fusible Without Neutral |
| Height | 9.17" |
| Length | 24.95" |
| Max. Hp Rating | 30, 40/60, 75 Hp (1/3PH @480, 600 V) |
| Nema Enclosure Rating | NEMA 12, NEMA 3R |
| Number Of Poles | 3 |
|---|---|
| Number Of Wires | 3 |
| Special Features | Enhanced Visible Blades, Upper Viewing Window |
| Type | Heavy Duty Fusible Safety Switch |
| Voltage | 600V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 11 18/25" |
Product Details
Shipping Information
| Height | 23.29 |
|---|---|
| Length | 63.37 |
| Width | 29.77 |
| Country Of Origin | US |
|---|---|
| Weight | 10.800000 |
