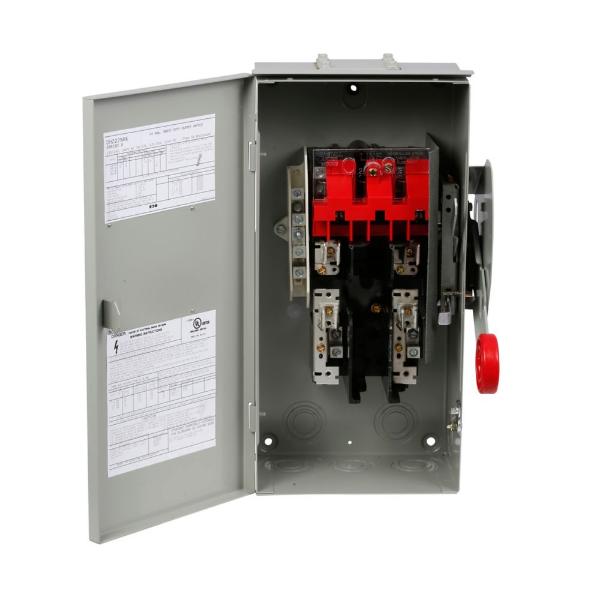

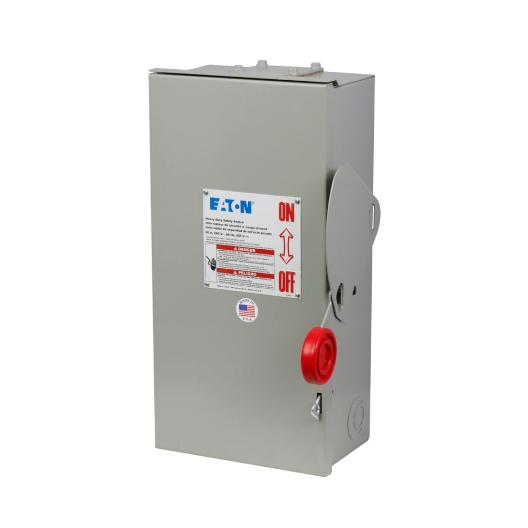

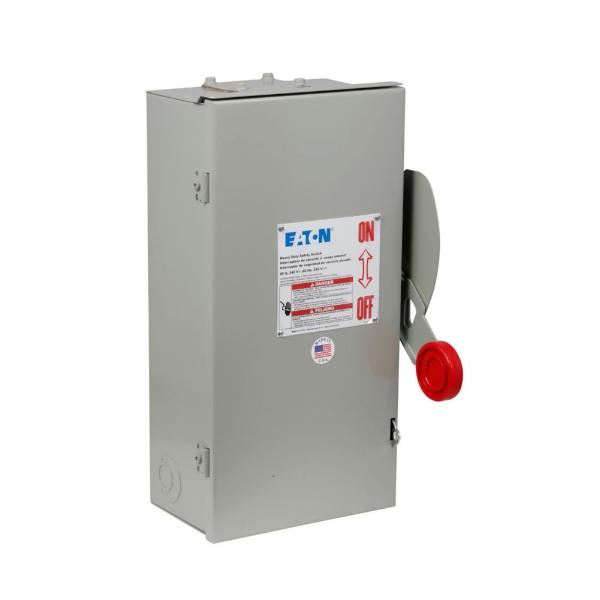

EATON DH222NRKG-PM Heavy Duty Fusible Single Safety Switch, 240 VAC, 60A, 2P
Item: BJ2GLM
Model: DH222NRKG-PM
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 60A |
|---|---|
| Enclosure Material | Galvanized Steel |
| Fuse Class Provision | Cartridge |
| Fuse Configuration | Fusible With Neutral |
| Height | 8 1/2" |
| Length | 16 1/2" |
| Max. Hp Rating | 3, 7.5 Hp/10, 15 Hp/10 Hp (1, 3PH @ Std Fuse/time Delay/250V DC) |
| Nema Enclosure Rating | NEMA 3R |
| Number Of Poles | 2 |
|---|---|
| Number Of Wires | 3 |
| Special Features | Enhanced Visible Blade, Line/Load Labels, 2 Blade |
| Type | Heavy Duty Fusible Safety Switch |
| Voltage | 240V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 9 1/2" |
Product Details
Safety Switch
Shipping Information
| height | 21.59 |
|---|---|
| length | 41.91 |
| width | 24.13 |
| country of origin | US |
|---|---|
| weight | 7.200000 |
