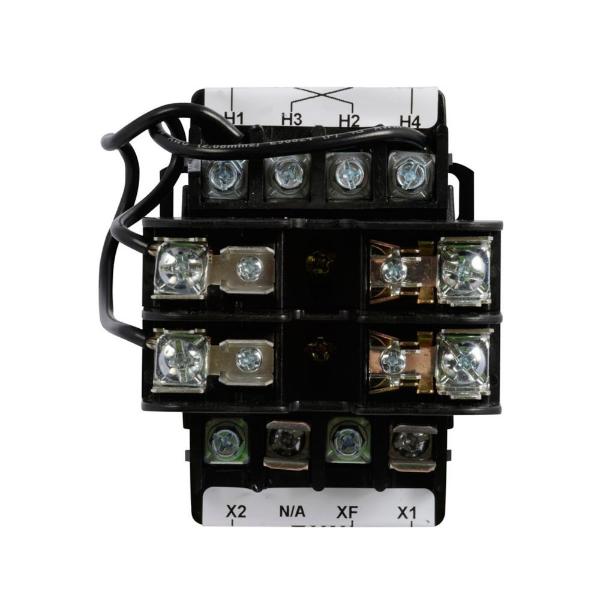

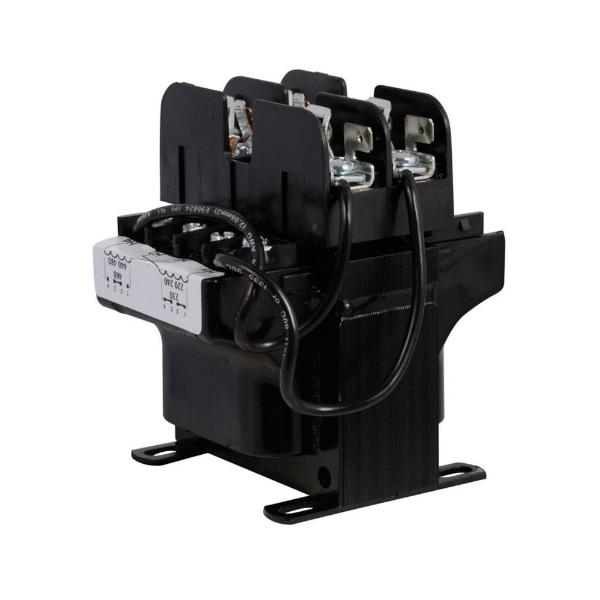

EATON C0250E5TFB Industrial Control Transformer, Type Mte, Pv 200/230/460V, Sv 115V, 250 Va, Cu Magnet Wire
Item: BJ7UQF
Model: C0250E5TFB
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£1011.76/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Coil Material | Copper Windings |
|---|---|
| Design | MTE |
| Height | 6" |
| Length | 5" |
| Modification 1 | Factory-Mounted Two-Pole Primary Fuse Block For Non-Rejection Type Fuses |
| Notes | Epoxy Encapsulated, Laminations Of High Quality Silicon Steel To Minimize Core Losses And Optimize Performance, 50/60Hz Operation, 130AAC Insulation System Standard, Molded-In Terminals For Maximum Durability |
| Primary Voltage | 200/230/460V |
|---|---|
| Secondary Voltage | 115V |
| Standard Logo | csa.png,cul.png,ul.png |
| Volt Ampere Rating | 250 VA |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 5" |
Product Details
Control Transformer
Shipping Information
| height | 15.24 |
|---|---|
| length | 12.7 |
| width | 12.7 |
| country of origin | US |
|---|---|
| weight | 4.950000 |
