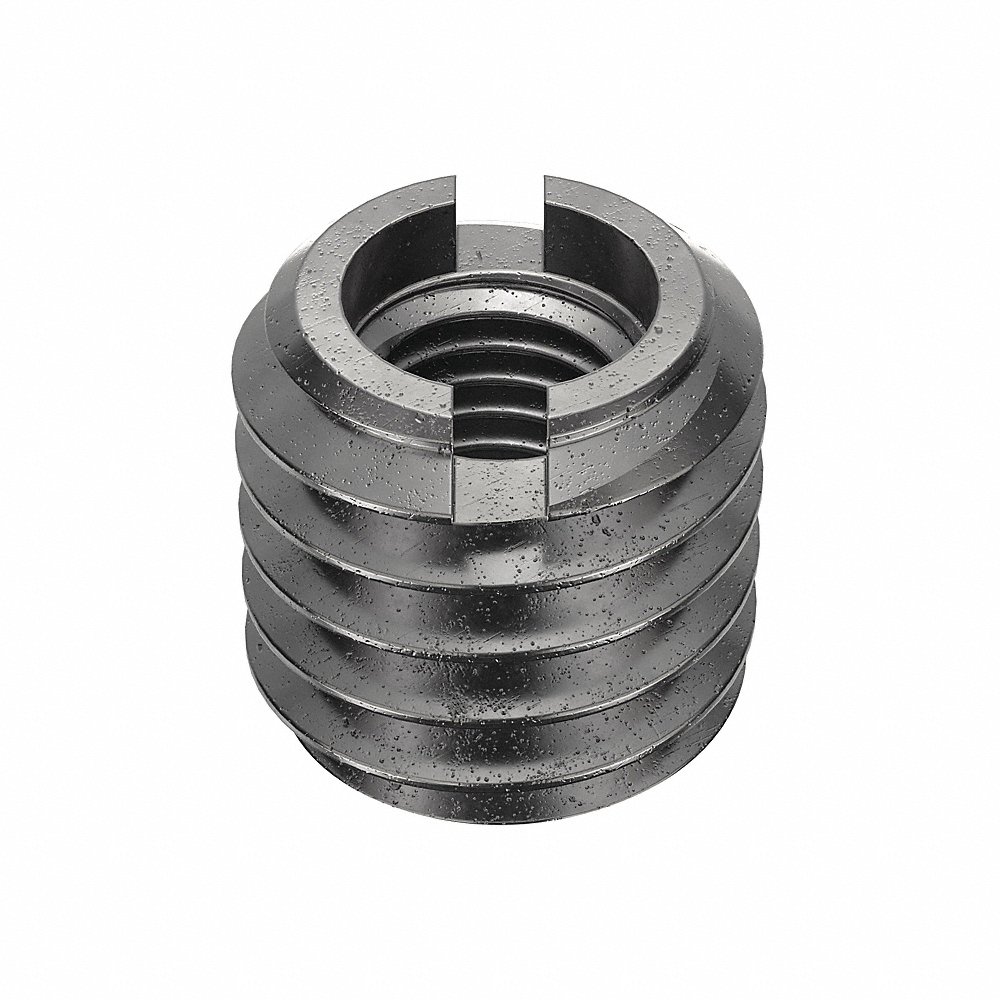

E-Z LOK 329-428 Self Locking Thread Insert, 7/16 Inch Length, Carbon Steel, 23/64 Inch Drill Size | CG6MZC 4ZE17

E-Z LOK 329-428-PK10 Thread Insert, 1/4 In - 28 Int. Thread Size, 7/16 In - 14 Ext. Thread Size, 7/16 In Lg., CS, 10PK

Item: CG6MZC

Model: 329-428-PK10

19 In Stock

Ships within 2 days via

~~£23.33~~

5.00% off

£22.16/pkg. of 10 (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Specifications
Product Details
Shipping Information
See Variants

Specifications

Item	Thread Insert
Brinell Hardness	163
Compatible Material	Metal
Compatible Tap Size	7/16"-14
Compatible With Grainger Part Number	4ZE54
Display Qty	10
Drill Bit Size	U
Drill Size	23/64"
External Class	Class 2A
External Thread Fit	2A
External Thread Size	7/16"-14
Features	Pre Applied Adhesive Activates On Installation, Vibration Resistant
Finish	Black Phosphate
Full Cure Time	72 hrs.
Hardness	Rockwell Brinell 163
Insert Diameter	7/16"
Installation Method	Bolt And Jam Nut, Drive Tool, Screwdriver

Internal Class	Class 2B
Internal Thread Fit	2B
Internal Thread Size	1/4"-28
Length	7/16"
Material	Steel
Material Grade/class	Grade 12L14
Maximum Hole Diameter	0.368"
Min. Full Thread Depth	1/2"
Minimum Installation Depth	1/2"
Overall Length	7/16"
Power Driver	4ZE54
Series	E-Z LOK Series
System Of Measurement	Imperial
Tensile Strength	78300 psi
Thread Type	UNF Internal, UNC External
Wall Type	Heavy Wall

Product Details

Shipping Information

Height	2.54
Length	2.54
Width	2.54

Country Of Origin	US
Weight	0.040500

Related Products

A

B

C

D

E

F

G

Style	Model	Internal Thread Size	External Thread Size	Wall Type	Min. Full Thread Depth	External Class	Internal Class	Thread Type	Power Driver	Price (ex. VAT)	Cart
A	319-3	#10-24	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	Coarse	4ZE53	21.08
B	319-332-PK10	#10-32	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	20.83
C	319-4	1/4"-20	3/8"-16	Thin Wall	7/16"	Class 2A	Class 2B	Coarse	4ZE54	24.66
D	319-428-PK10	1/4"-28	3/8"-16	Thin Wall	7/16"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE54	23.32
E	319-5	5/16"-18	7/16"-14	Thin Wall	1/2"	Class 2A	Class 2B	Coarse	4ZE55	24.28
F	319524PK10	5/16"-24	7/16"-14	Thin Wall	1/2"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE55	28.89
G	319-6	3/8"-16	1/2"-13	Thin Wall	9/16"	Class 2A	Class 2B	Coarse	4ZE56	27.29
