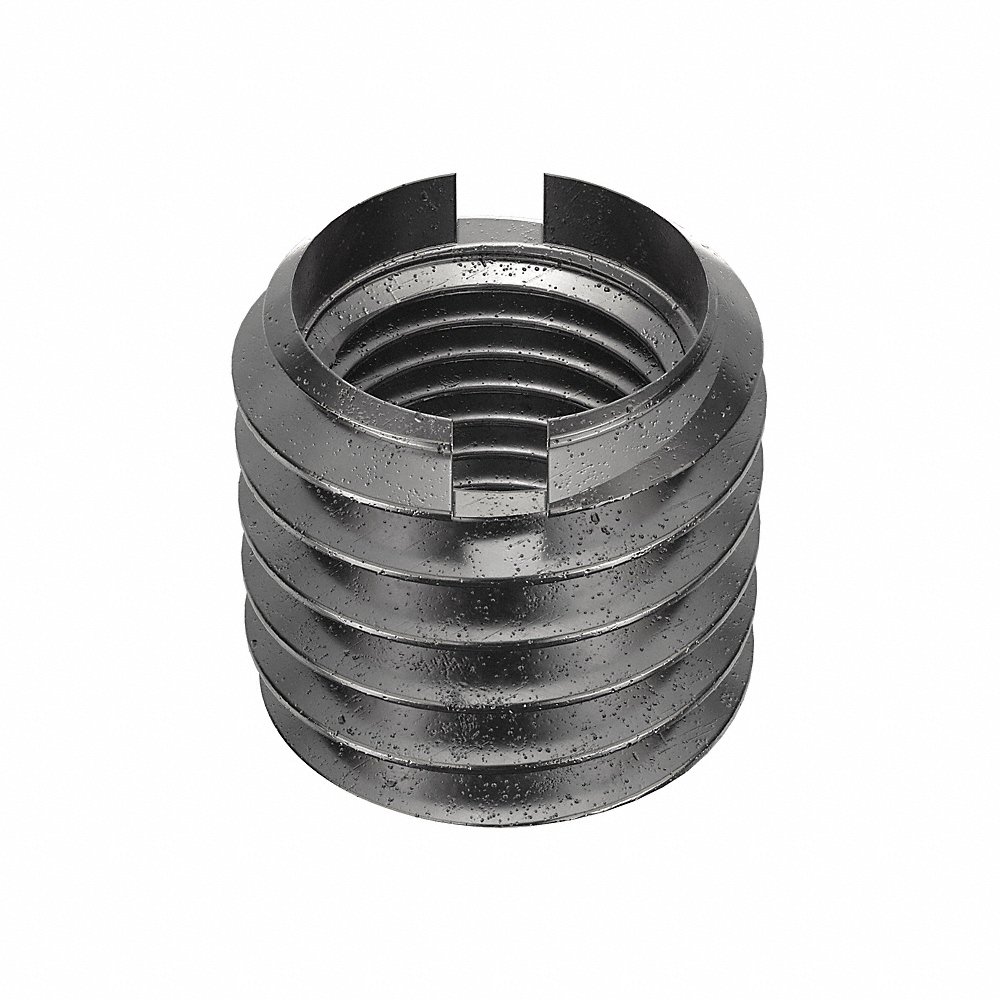

E-Z LOK 319524PK10 Thread Insert, 5/16 In - 24 Int. Thread Size, 7/16 In - 14 Ext. Thread Size, 7/16 In Lg., 10PK
Item: CG6MYD
Model: 319524PK10
16 In Stock
Ships within 2 days via
5.00% off
£32.94/pkg. of 10
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Thread Insert |
|---|---|
| Brinell Hardness | 163 |
| Compatible Material | Metal |
| Compatible Tap Size | 7/16"-14 |
| Compatible With Grainger Part Number | 4ZE55 |
| Display Qty | 10 |
| Drill Size | X |
| External Class | Class 2A |
| External Thread Fit | 2A |
| Features | Pre Applied Adhesive Activates On Installation, Vibration Resistant |
| Finish | Black Phosphate |
| Full Cure Time | 72 hrs. |
| Hardness | Rockwell Brinell 163 |
| Insert Diameter | 7/16" |
| Installation Method | Bolt And Jam Nut, Drive Tool, Screwdriver |
| Internal Class | Class 2B |
|---|---|
| Internal Thread Fit | 2B |
| Length | 7/16" |
| Material | Steel |
| Material Grade/class | Grade 12L14 |
| Maximum Hole Diameter | 0.397" |
| Min. Full Thread Depth | 1/2" |
| Minimum Installation Depth | 1/2" |
| Overall Length | 7/16" |
| Power Driver | 4ZE55 |
| Series | E-Z LOK Series |
| System Of Measurement | Imperial |
| Tensile Strength | 78300 psi |
| Thread Type | UNF Internal, UNC External |
| Wall Type | Thin Wall |
Product Details
- For Use on Metal
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.031500 |
Related Products
| Style | Model | Internal Thread Size | External Thread Size | Wall Type | Min. Full Thread Depth | External Class | Internal Class | Thread Type | Power Driver | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 319-3 | #10-24 | 5/16"-18 | Thin Wall | 3/8" | Class 2A | Class 2B | Coarse | 4ZE53 | 21.08 | |
| B | 319-332-PK10 | #10-32 | 5/16"-18 | Thin Wall | 3/8" | Class 2A | Class 2B | UNF Internal, UNC External | 4ZE53 | 20.83 | |
| C | 319-4 | 1/4"-20 | 3/8"-16 | Thin Wall | 7/16" | Class 2A | Class 2B | Coarse | 4ZE54 | 24.66 | |
| D | 319-428-PK10 | 1/4"-28 | 3/8"-16 | Thin Wall | 7/16" | Class 2A | Class 2B | UNF Internal, UNC External | 4ZE54 | 23.32 | |
| E | 319-5 | 5/16"-18 | 7/16"-14 | Thin Wall | 1/2" | Class 2A | Class 2B | Coarse | 4ZE55 | 24.28 | |
| F | 319-6 | 3/8"-16 | 1/2"-13 | Thin Wall | 9/16" | Class 2A | Class 2B | Coarse | 4ZE56 | 27.29 | |
| G | 319-624-PK10 | 3/8"-24 | 1/2"-13 | - | 9/16" | - | - | UNF Internal, UNC External | 4ZE56 | 31.34 |
