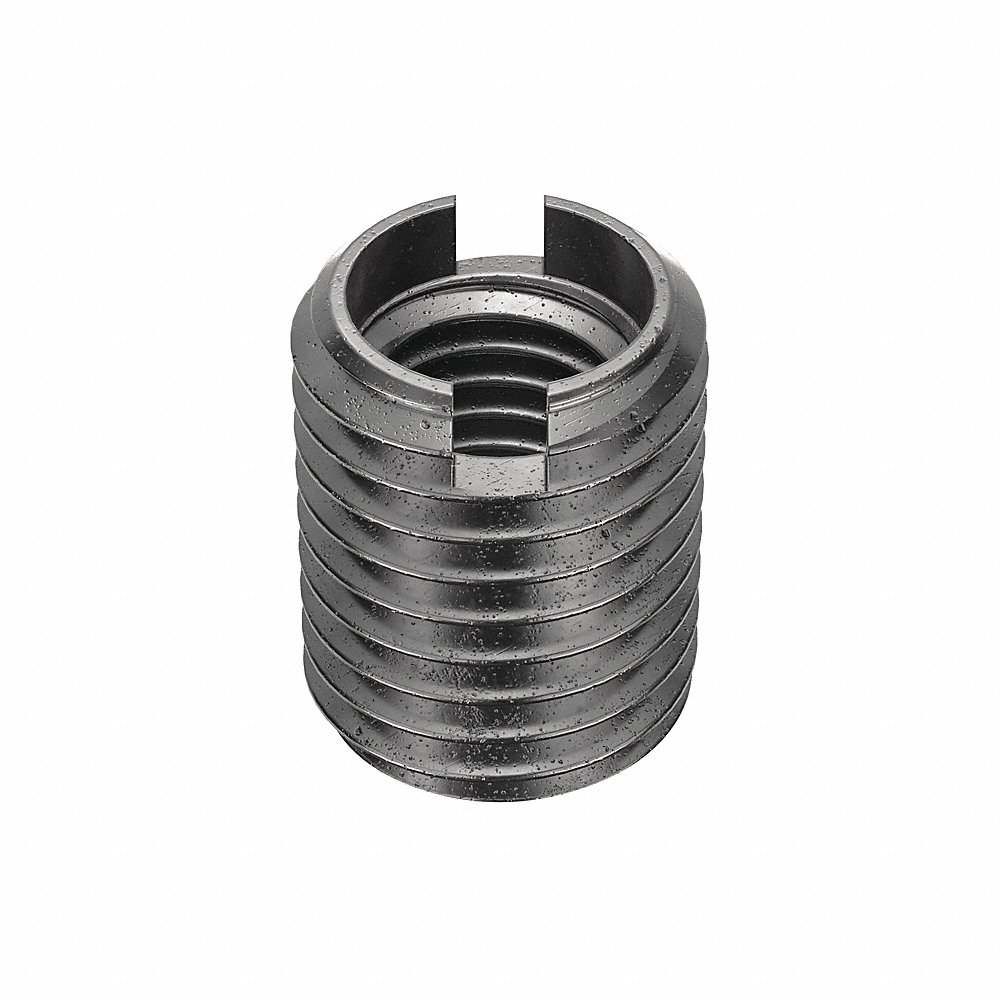

E-Z LOK 329-1018 Self Locking Thread Insert, 1-1/8 Inch Length, Carbon Steel, 49/64 Inch Drill Size | CG6MYQ 4ZB96

E-Z LOK 329-1018-PK5 Thread Insert, 5/8 In - 11 Internal Thread Size, 7/8 In - 9 External Thread Size, 1 1/8 In Lg., 5PK

Item: CG6MYQ

Model: 329-1018-PK5

16 In Stock

Ships within 2 days via

~~£49.74~~

5.00% off

£47.24/pkg. of 5 (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Specifications
Product Details
Shipping Information
See Variants

Specifications

Item	Thread Insert
Brinell Hardness	163
Compatible Material	Metal
Compatible Tap Size	7/8"-9
Compatible With Grainger Part Number	4ZE59
Display Qty	5
Drill Size	49/64"
External Class	Class 2A
External Thread Fit	2A
External Thread Size	7/8"-9
Features	Pre Applied Adhesive Activates On Installation, Vibration Resistant
Finish	Black Phosphate
Full Cure Time	72 hrs.
Hardness	Rockwell Brinell 163
Insert Diameter	7/8"

Installation Method	Bolt And Jam Nut, Drive Tool, Screwdriver
Internal Class	Class 2B
Internal Thread Fit	2B
Internal Thread Size	5/8"-11
Length	1 1/8"
Material Grade/class	Grade 12L14
Maximum Hole Diameter	0.875"
Min. Full Thread Depth	1 1/4"
Minimum Installation Depth	1 1/4"
Overall Length	1 1/8"
Power Driver	4ZE59
Series	E-Z LOK Series
System Of Measurement	Imperial
Tensile Strength	78300 psi
Wall Type	Heavy Wall

Product Details

For Use on Metal

Shipping Information

Height	2.54
Length	2.54
Width	2.54

Country Of Origin	US
Weight	0.157500
