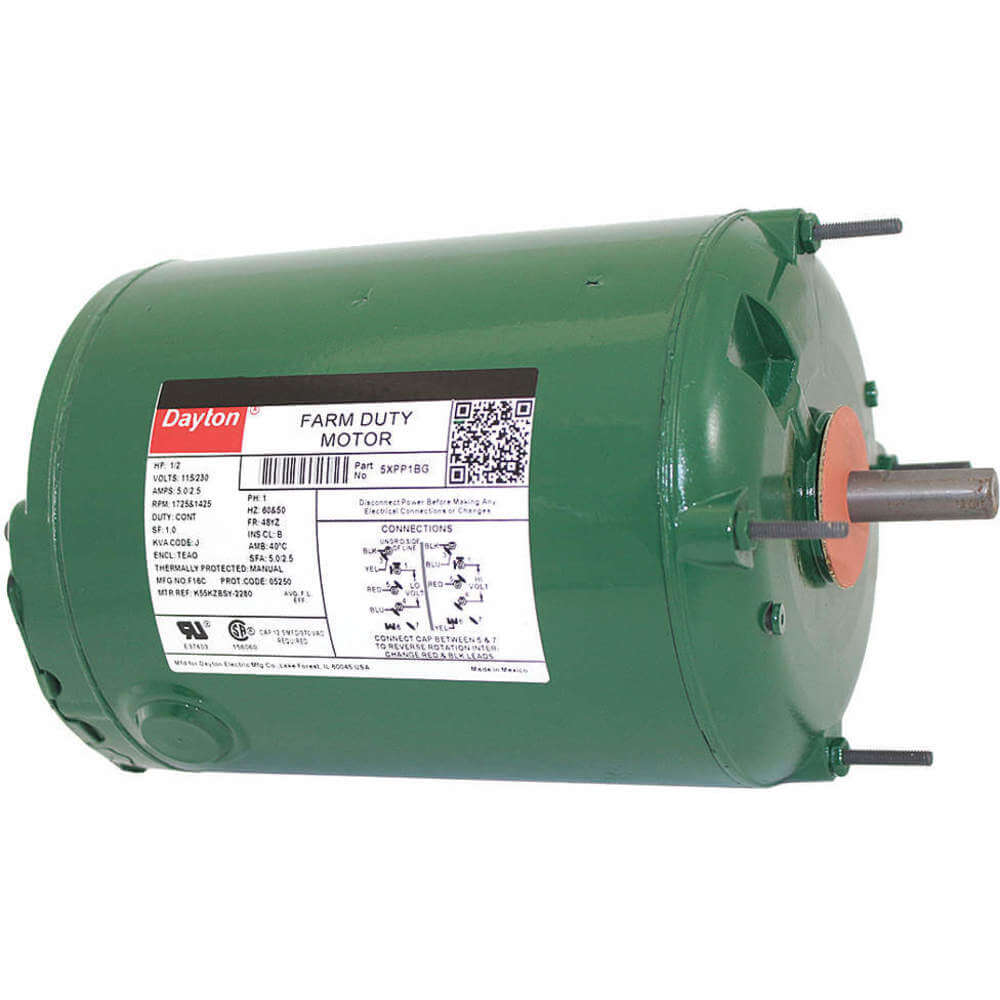

| Item | Hatcher/Setter Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 73.5% |
| Finish | Painted |
| Frame | 48YZ |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5/2.5A |
| Hp | 1/2 hp |
| Includes | Gasketed Terminal Acces Cover, Shaft Slinger, Mounting Nuts |
| Max. Ambient Temp. | 40°C |
| Motor Application | Hatchery |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Band |
| No. Of Speeds | 1 |
| Overall Length | 9 7/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Type | Flat |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
| Ins. Class | Class B |
| Length Less Shaft | 7 15/16" |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Frame Material | Rolled Steel |
| Motor Sub Application | Hatchery |
| Motor Thermal Protection | Manual |
| Standards | CSA CERTIFIED (258501), UL RECOGNIZED (E37403) |
| Ship weight (kg) | 8.75 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 31.24 |
| Ship width (cm) | 23.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Motor Mounting Position | Motor Sub Application | Motor Thermal Protection | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1YBA2 | 48Y | 1.3-1.4 | 1/4 | 6" | All Angle | Poultry Fans | Auto | Stud | £363.18 |
