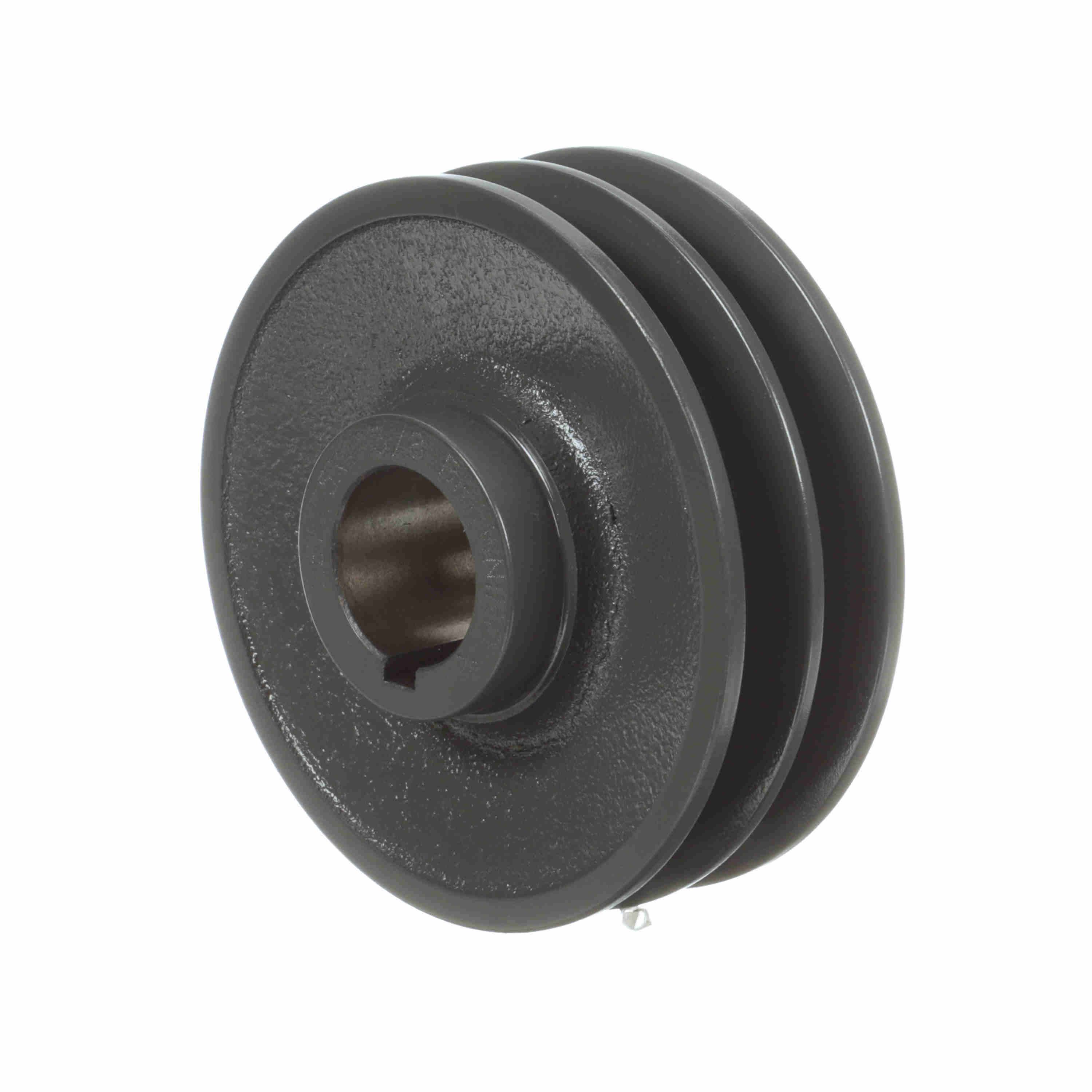

BROWNING 3195815 2BK55X 1 3/8 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron, 5-1/4 in OD, 1-3/8 in Bore Dia, 4.7 in A/5.2 in B Pitch Dia
Item: AZ9AMU
Model: 3195815
22 In Stock
Ships within 2 days via
5 1/4"
1 3/8"
£299.18/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Belt Series | 4L, A, 5L, B Series |
|---|---|
| Bore Dia. | 1 3/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4.9" |
| Min. Pitch Dia. | 4 1/2" |
| Min. Plain Bore | No |
|---|---|
| No. Of Grooves | 2 |
| Outside Dia. | 5 1/4" |
| Overall Length | 2 7/32" |
| Pitch Dia. (a) | 4.7" |
| Pitch Dia. (b) | 5 1/5" |
| Series | BK Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 2 |
Product Details
Shipping Information
| Height | 13.34 |
|---|---|
| Length | 5.64 |
| Width | 13.34 |
| Country Of Origin | US |
|---|---|
| Weight | 2.088000 |
