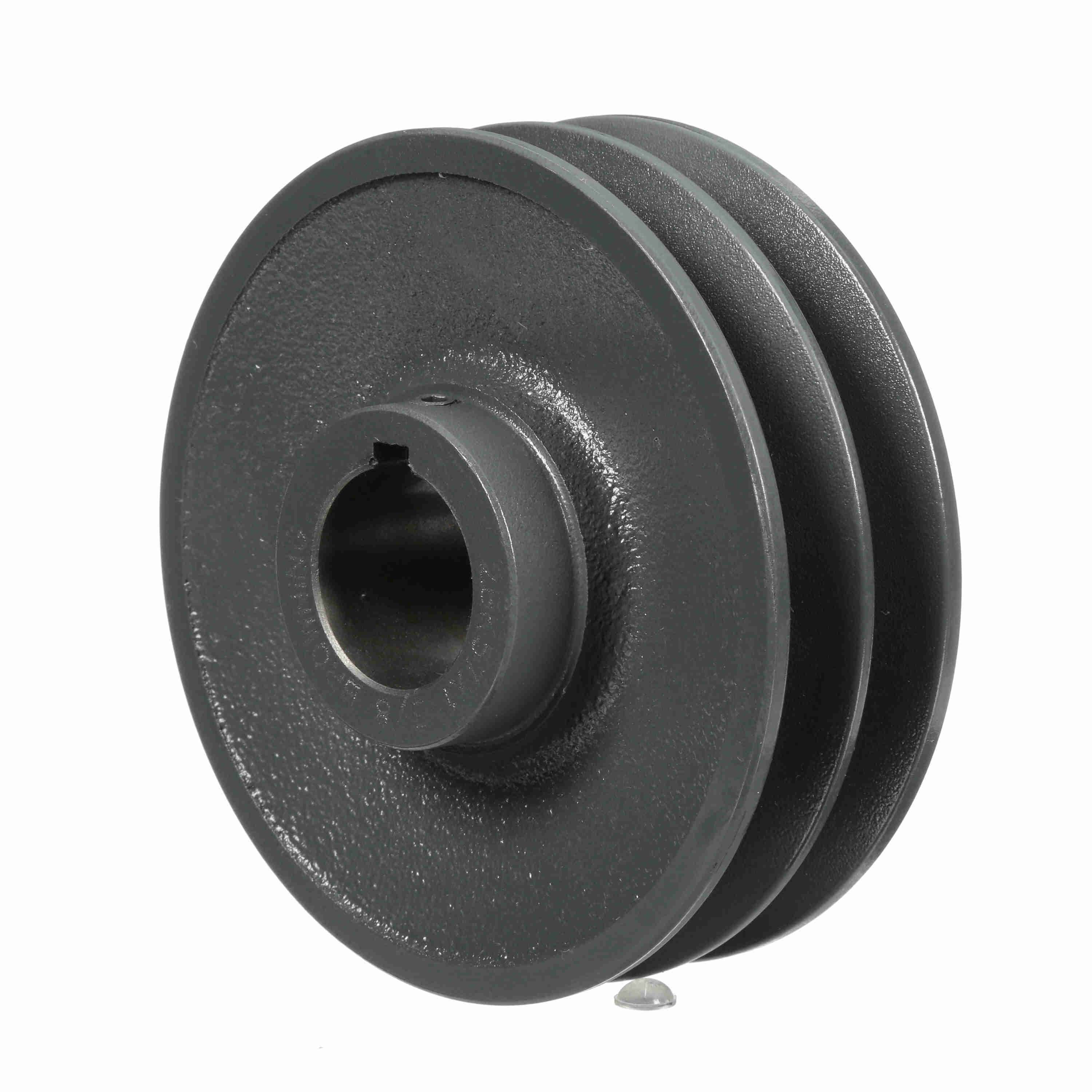

BROWNING 3195823 2BK57X 1 3/8 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron, 5.45 in OD, 1-3/8 in Bore Dia, 4.9 in A/5.4 in B Pitch Dia
Item: AZ9CWR
Model: 3195823
22 In Stock
Ships within 2 days via
5.45"
1 3/8"
£297.56/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Belt Series | 4L, A, 5L, B Series |
|---|---|
| Bore Dia. | 1 3/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5.1" |
| Min. Pitch Dia. | 4.7" |
| Min. Plain Bore | No |
|---|---|
| No. Of Grooves | 2 |
| Outside Dia. | 5.45" |
| Overall Length | 2 7/32" |
| Pitch Dia. (a) | 4.9" |
| Pitch Dia. (b) | 5 2/5" |
| Series | BK Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 2 |
Product Details
V-Belt Sheave
Shipping Information
| height | 13.84 |
|---|---|
| length | 5.64 |
| width | 13.84 |
| country of origin | US |
|---|---|
| weight | 2.241000 |
Related Products
| Style | Model | Bore Dia. | Bore Type | Outside Dia. | Type | Overall Length | Material | Face Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 1042977 | 3/8" to 1 1/2" | Split Taper | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | 130.49 | |
| B | 1043017 | 3/8" to 1 1/2" | Split Taper | 4 3/4" | Type 2 | 2 5/32" | Cast Iron | - | 125.01 | |
| C | 1043116 | 3/8" to 1 1/2" | Split Taper | 8 3/4" | Type 3 | 1 29/32" | Cast Iron | 1 3/4" | 194.85 | |
| D | 1033018 | 1/2" | Finished | 2 1/2" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | 207.08 | |
| E | 1033372 | 1 3/8" | Finished | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | 187.48 | |
| F | 1034172 | 1" | Finished | 15 3/4" | Type 3 | 2 3/32" | Cast Iron | 1 3/4" | 666.12 | |
| G | 2739019 | 3/8" to 1 1/2" | Split Taper | 3.95" | Type 2 | 2 7/32" | Cast Iron | 1 3/4" | 142.09 |
