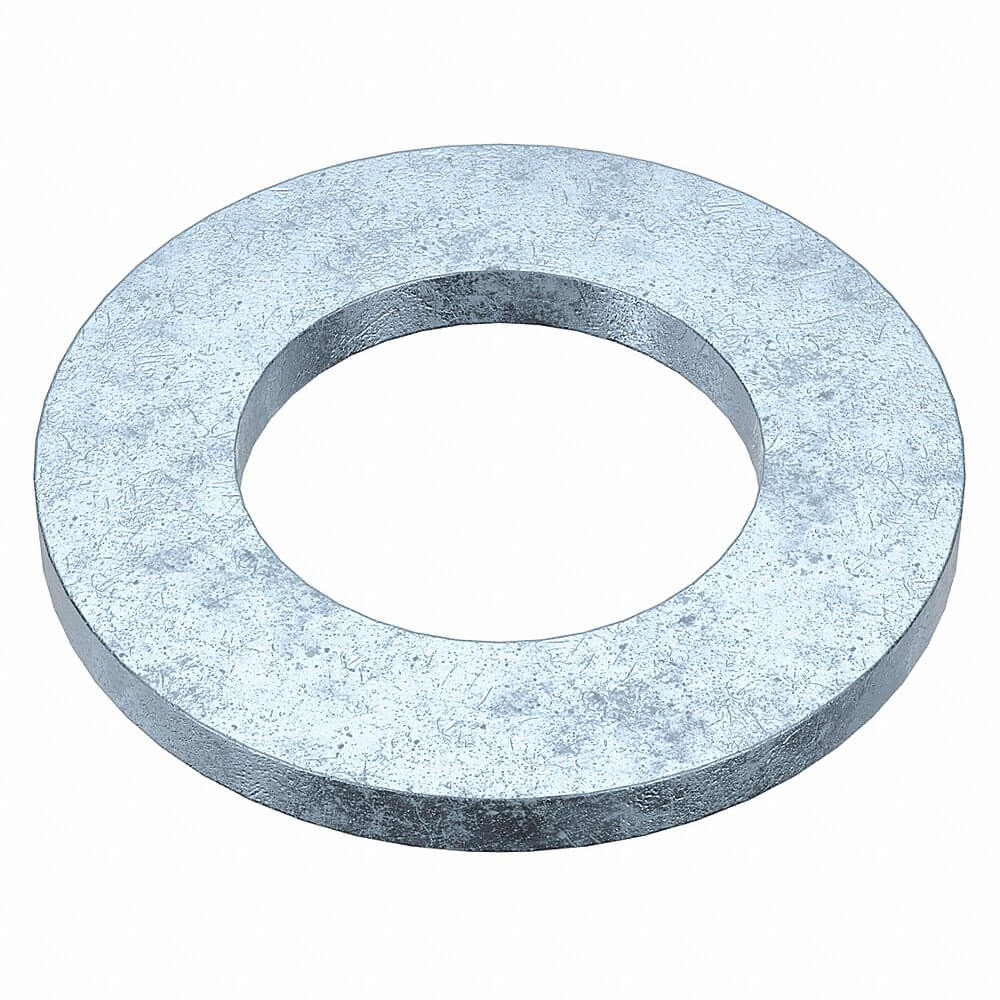

APPROVED VENDOR M38130.200.0001 Flat Washer, M20 Bolt Size, Std, 21mm I.D., 37mm O.D., 10PK
Item: AB7DYT
Model: M38130.200.0001
19 In Stock
Ships within 2 days via
5.00% off
£3.64/pkg. of 10
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | Din 125-1A |
|---|---|
| Finish | Zinc Plated |
| Fits Bolt Sizes | M20 |
| Flat Washer Type | Standard |
| For Screw Size | M20 |
| Grade | Grade 2 |
| Inside Dia. | 21 mm |
| Inside Diameter Tolerance | 0.827" to 0.84" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 3 mm |
|---|---|
| Minimum Temperature | -58°C |
| Minimum Thickness | 3 mm |
| Outside Dia. | 37 mm |
| Outside Diameter Tolerance | 1.432" to 1.457" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Thickness | 3 mm |
| Thickness Tolerance | 0.106" to 0.13" |
| Washer Type | Standard Washer |
Product Details
Flat Washer
Shipping Information
| height | 1.27 |
|---|---|
| length | 16.99 |
| width | 16.38 |
| hs code | 7318220000 |
|---|---|
| country of origin | TW |
| weight | 0.170600 |
Related Products
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | M38130.160.0001 | M16 | 17 mm | 30 mm | 3 mm | 0.106" to 0.13" | - | - | 5.30 | |
| B | M38130.300.0001 | M30 | 31 mm | 56 mm | 4 mm | 0.146" to 0.169" | - | - | 5.28 | |
| C | M38130.360.0001 | M36 | 37 mm | 66 mm | 5 mm | 0.173" to 0.22" | - | - | 3.66 | |
| D | M38130.390.0001 | M39 | 40 mm | 72 mm | 6 mm | 0.213" to 0.26" | - | - | 5.38 | |
| E | M38130.420.0001 | M42 | 43 mm | 78 mm | 7 mm | 0.236" to 0.315" | - | - | 7.62 | |
| F | M38130.120.0001 | M12 | 13 mm | 24 mm | 2.5 mm | 0.091" to 0.106" | - | - | 8.42 | |
| G | M38130.240.0001 | M24 | 25 mm | 44 mm | 4 mm | 0.146" to 0.169" | - | - | 6.13 |
