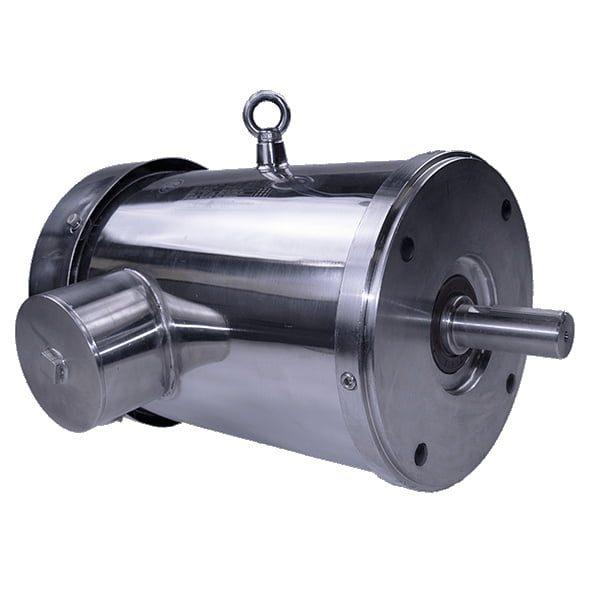

WORLDWIDE ELECTRIC SSPE34-18-56CRD Motor, 0.75 HP, 1800 RPM, 208-230/460V, 56C Frame, C-Face Round Body, Stainless Steel

Item: CJ8RNJ
Model: SSPE34-18-56CRD
In Stock
£758.04/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Breakdown Torque (bdt) 300%
Connection Diagram 9 Lead 2Y/Y
Degree Of Protection IP69K
Duty Cycle S1
Efficiency 100% 82.5%
Efficiency 75% 77%
Efficiency At 50% 72%
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
F1/f2 Suitable Unsuitable
Frame Size 56C
Full Load Amps @ 208v 2.5A
Full Load Amps @ 230v 2.4A
Full Load Amps @ 460v 1.2A
Full Load Rpm 1745 RPM
Full Load Torque 2.2 lbs.-ft.
Grease Type Mobil Polyrex EM
Hp 75/100 hp
Insulation Class Class F
Locked Rotor Amps @ 230v 25A
Locked Rotor Amps @ 460v 12.5A
Locked Rotor Time (hot) 12 sec.
Locked Rotor Torque 2.85
Max. Ambient Temp. 40°C
Max. Elevation 3300 ft.
Moment Of Inertia 0.084 lbs.-sq. ft.
Nema Code Letter P
Nema Design B
No Load Current @ 230v 1.8A
No Load Current @ 460v 0.9A
Number Of Starts/hr 12
Phase 3
Pole 4
Power Factor 100% 78%
Rotation Bidirectional
Rpm 1800 RPM
Service Factor 1.15
Slip 3.06%
Sound Pressure Level 60 dBA
Temp. Rise (c) 80°C
Terminal Box Location F1
Voltage 230/460V

Product Details

AC Motor
