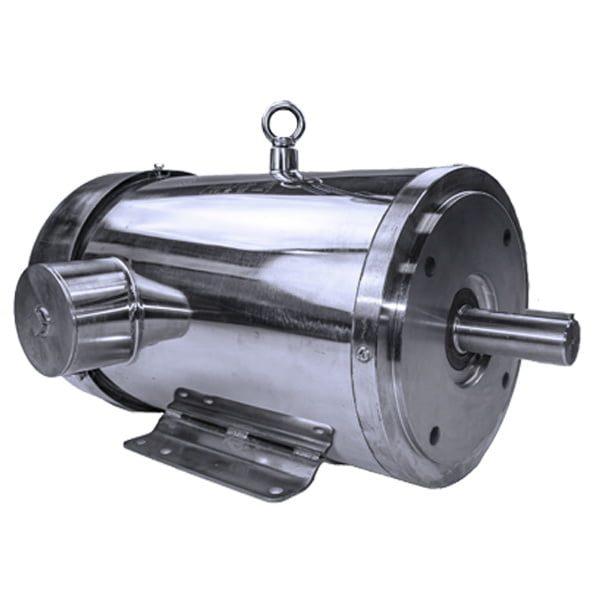

WORLDWIDE ELECTRIC SSPE3-18-182TC Motor, 3 HP, 1800 RPM, 208-230/460V, 182TC Frame, C-Face with Feet, Stainless Steel

Item: CJ8RMX
Model: SSPE3-18-182TC
In Stock
£2230.24/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Product Datasheet worldwide-electric-lam1-5-12-182t.pdf
Breakdown Torque (bdt) 290%
Connection Diagram 9 Lead 2Y/Y
De Bearing 6308 2RS
Degree Of Protection IP69K
Duty Cycle S1
Efficiency 100% 89.5%
Efficiency 75% 90%
Efficiency At 50% 89%
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
F1/f2 Suitable Unsuitable
Frame Size 182TC
Full Load Amps @ 208v 8.4A
Full Load Amps @ 230v 8A
Full Load Rpm 1765 RPM
Full Load Torque 8.8 lbs.-ft.
Grease Type Mobil Polyrex EM
Hp 3 hp
Insulation Class Class F
Locked Rotor Amps @ 230v 64A
Locked Rotor Amps @ 460v 32A
Locked Rotor Time (hot) 12 sec.
Locked Rotor Torque 2.7
Max. Ambient Temp. 40°C
Max. Elevation 3300 ft.
Moment Of Inertia 0.348 lbs.-sq. ft.
Mounting Type C Face With Feet
Nema Code Letter K
Nema Design B
No Load Current @ 460v 2A
Number Of Starts/hr 12
Ode Bearing 6306 2RS
Phase 3
Pole 4
Power Factor 100% 81%
Rotation Bidirectional
Rpm 1800 RPM
Service Factor 1.15
Slip 1.94%
Sound Pressure Level 64 dBA
Temp. Rise (c) 80°C
Terminal Box Location F1
Voltage 230/460V
