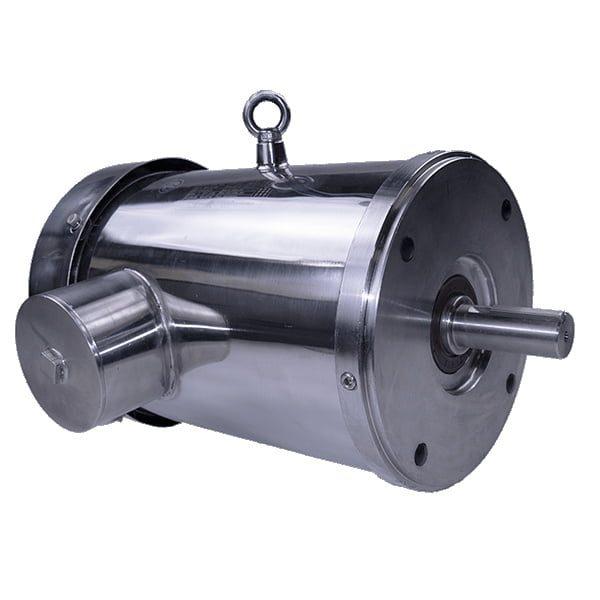

WORLDWIDE ELECTRIC SSPE3-12-213TCRD Motor, 3 HP, 1200 RPM, 208-230/460V, 213TC Frame, C-Face Round Body, Stainless Steel

Item: CJ8RMU
Model: SSPE3-12-213TCRD
In Stock
£2990.27/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Product Datasheet worldwide-electric-lam1-5-12-182t.pdf
Breakdown Torque (bdt) 280%
Connection Diagram 9 Lead 2Y/Y
De Bearing 6308 2RS
Degree Of Protection IP69K
Duty Cycle S1
Efficiency 100% 89.5%
Efficiency 75% 87%
Efficiency At 50% 86%
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
F1/f2 Suitable Unsuitable
Frame Size 213TC
Full Load Amps @ 208v 10A
Full Load Amps @ 230v 9.2A
Full Load Amps @ 460v 4.6A
Full Load Rpm 1175 RPM
Full Load Torque 13.2 lbs.-ft.
Grease Type Mobil Polyrex EM
Hp 3 hp
Insulation Class Class F
Locked Rotor Amps @ 230v 64A
Locked Rotor Amps @ 460v 32A
Locked Rotor Time (hot) 12 sec.
Locked Rotor Torque 2.5
Max. Ambient Temp. 40°C
Max. Elevation 3300 ft.
Moment Of Inertia 1.055 lbs.-sq. ft.
Nema Code Letter K
Nema Design B
No Load Current @ 230v 6A
No Load Current @ 460v 3A
Number Of Starts/hr 12
Ode Bearing 6208 2RS
Phase 3
Pole 6
Power Factor 100% 74%
Rotation Bidirectional
Rpm 1200 RPM
Service Factor 1.15
Slip 2.08%
Sound Pressure Level 61 dBA
Temp. Rise (c) 80°C
Terminal Box Location F1
Voltage 230/460V
