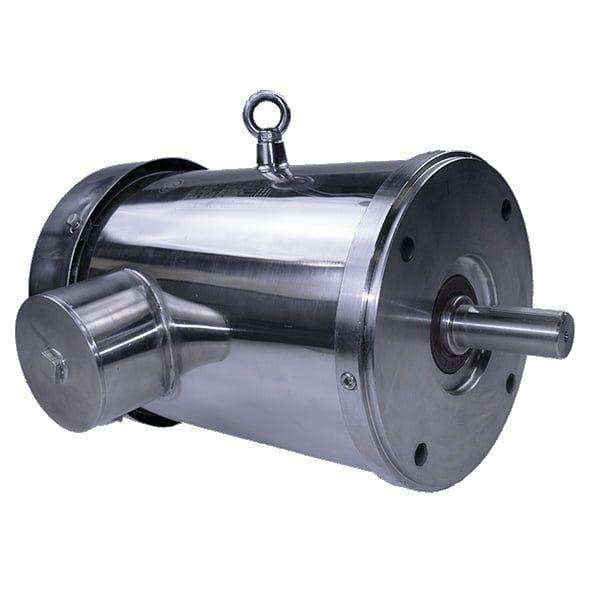

WORLDWIDE ELECTRIC SSPE13-36-56CRD Motor, 0.33 HP, 3600 RPM, 208-230/460V, 56C Frame, C-Face Round Body, Stainless Steel
Item: CJ8RLV
Model: SSPE13-36-56CRD
In Stock
£661.87/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Breakdown Torque (bdt) | 300% |
|---|---|
| Connection Diagram | 9 Lead 2Y/Y |
| Degree Of Protection | IP69K |
| Duty Cycle | S1 |
| Efficiency 100% | 74% |
| Efficiency 75% | 64% |
| Efficiency At 50% | 59% |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| F1/f2 Suitable | Unsuitable |
| Frame Size | 56C |
| Full Load Amps @ 208v | 1.2A |
| Full Load Amps @ 230v | 1.1A |
| Full Load Amps @ 460v | 0.55A |
| Full Load Rpm | 3500 RPM |
| Full Load Torque | 0.5 lbs.-ft. |
| Grease Type | Mobil Polyrex EM |
| Hp | 33/100 hp |
| Insulation Class | Class F |
| Locked Rotor Amps @ 230v | 16A |
| Locked Rotor Amps @ 460v | 8A |
| Locked Rotor Time (hot) | 12 sec. |
| Locked Rotor Torque | 2.85 |
|---|---|
| Max. Ambient Temp. | 40°C |
| Max. Elevation | 3300 ft. |
| Moment Of Inertia | 0.027 lbs.-sq. ft. |
| Nema Code Letter | R |
| Nema Design | B |
| No Load Current @ 230v | 0.74A |
| No Load Current @ 460v | 0.37A |
| Number Of Starts/hr | 12 |
| Phase | 3 |
| Pole | 2 |
| Power Factor 100% | 85% |
| Rotation | Bidirectional |
| Rpm | 3600 RPM |
| Service Factor | 1.15 |
| Slip | 2.78% |
| Sound Pressure Level | 75 dBA |
| Temp. Rise (c) | 80°C |
| Terminal Box Location | F1 |
| Voltage | 230/460V |
Product Details
