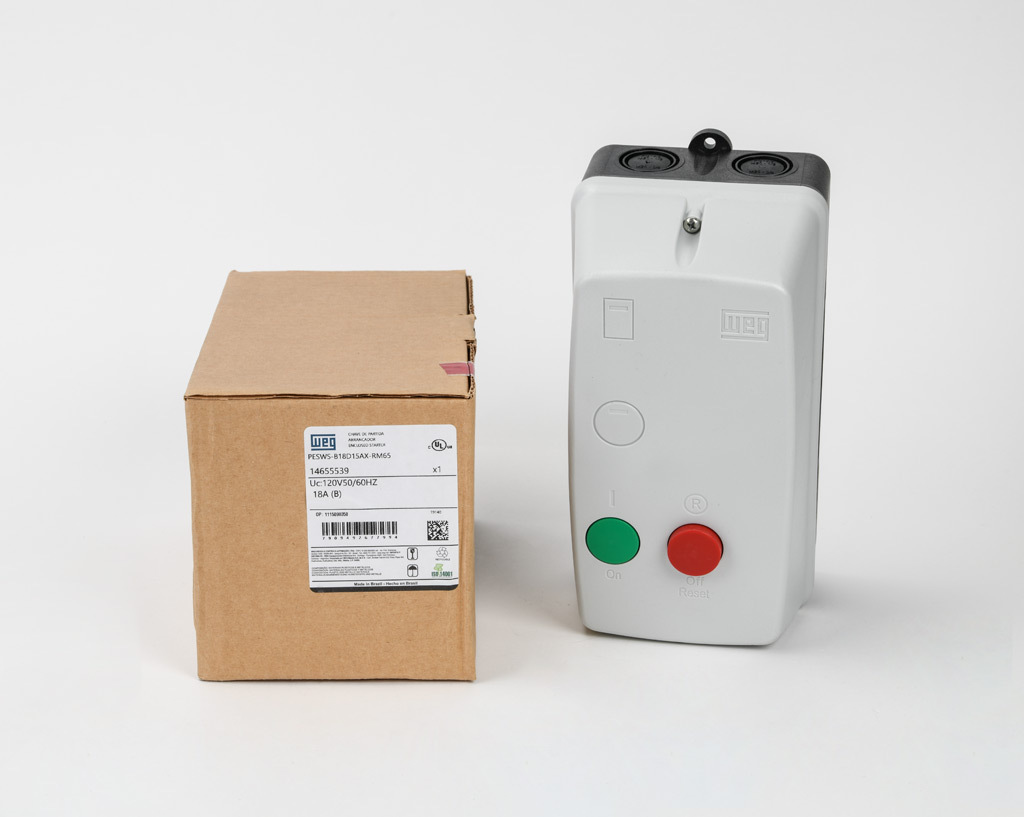

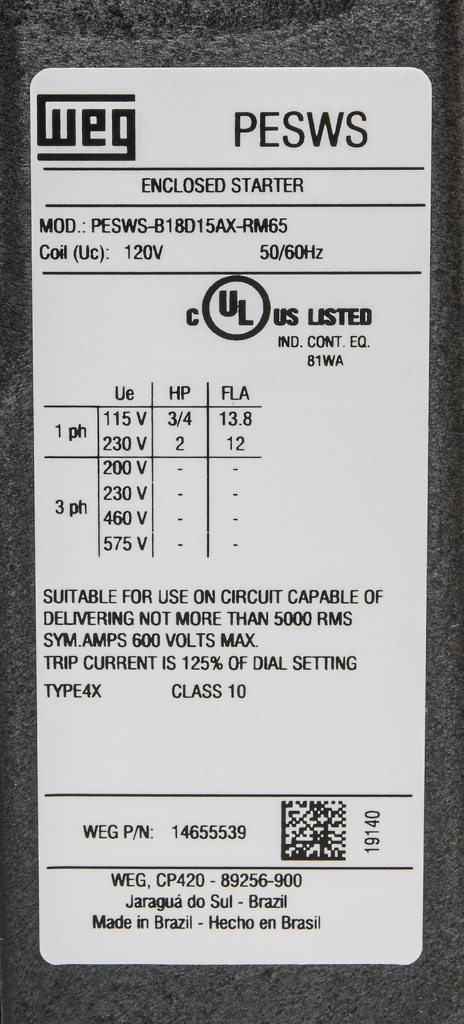

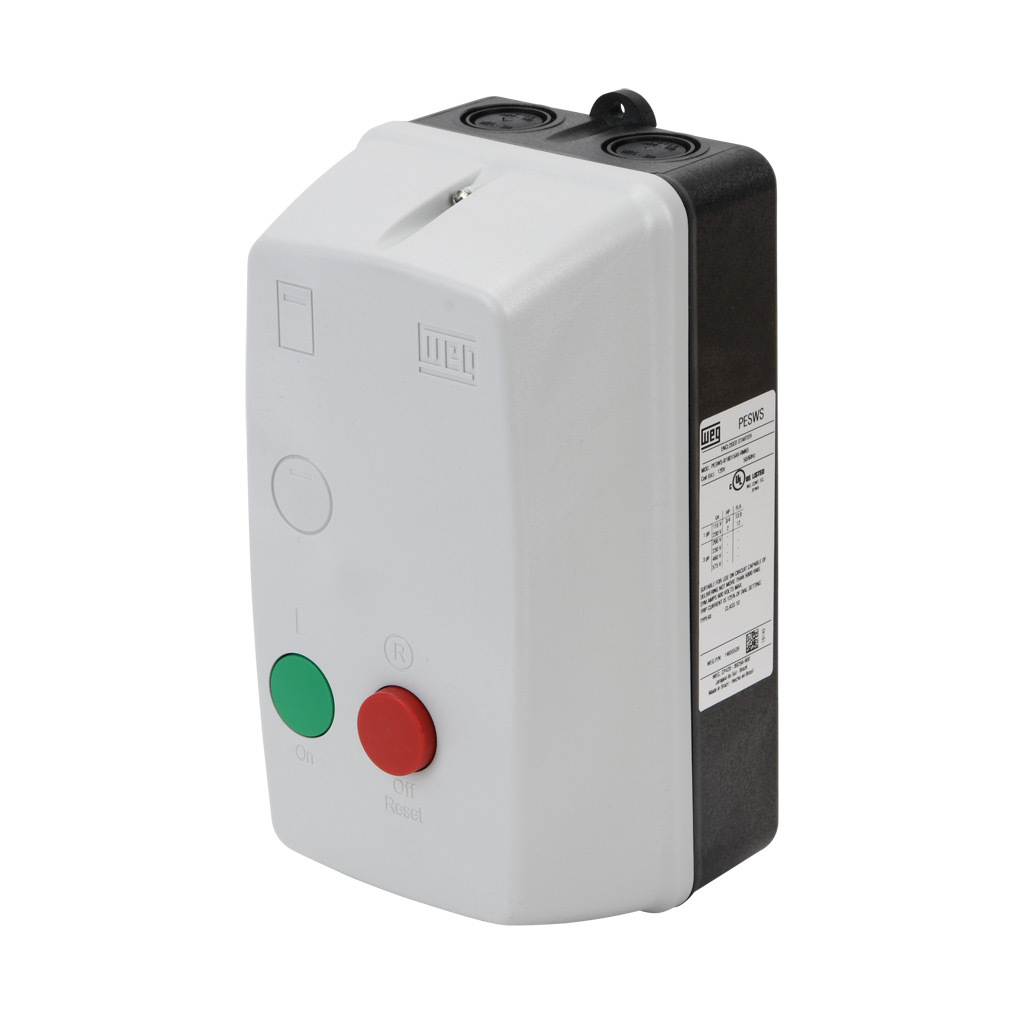

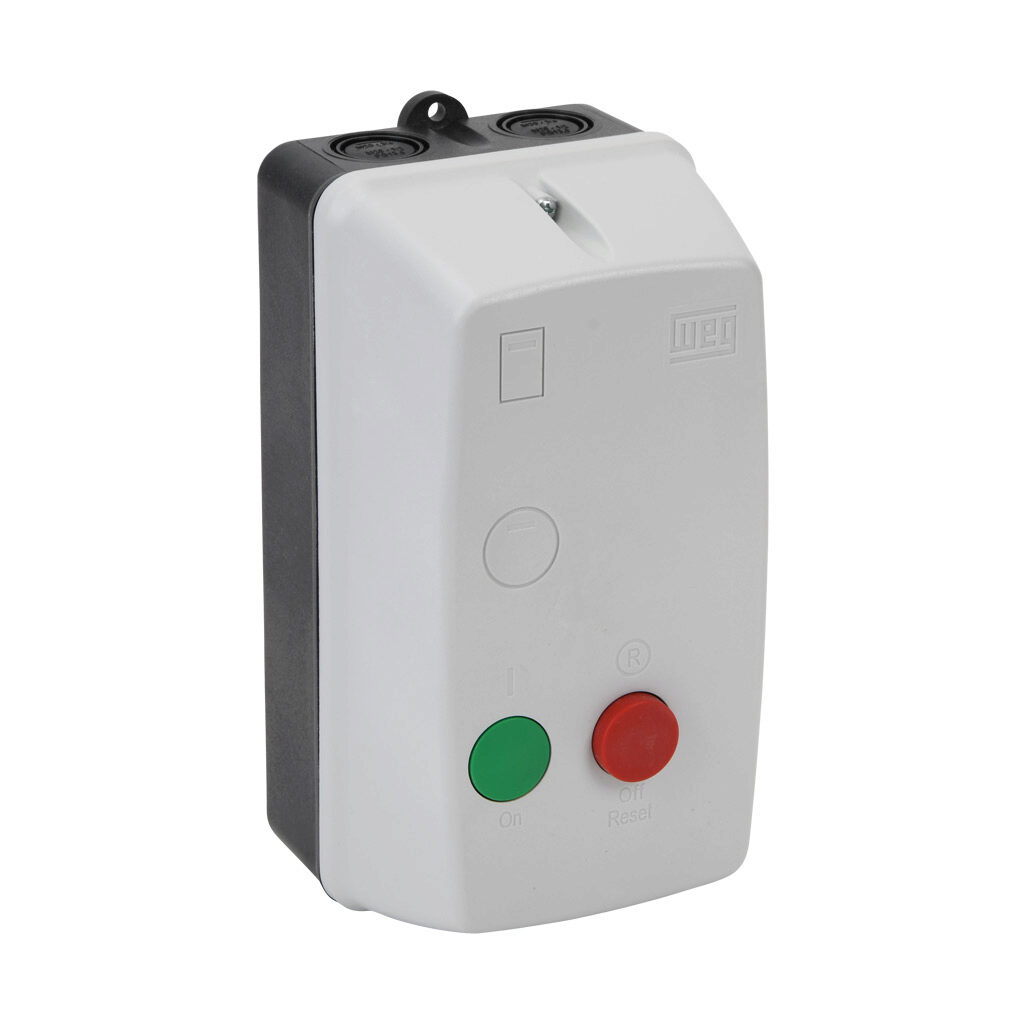

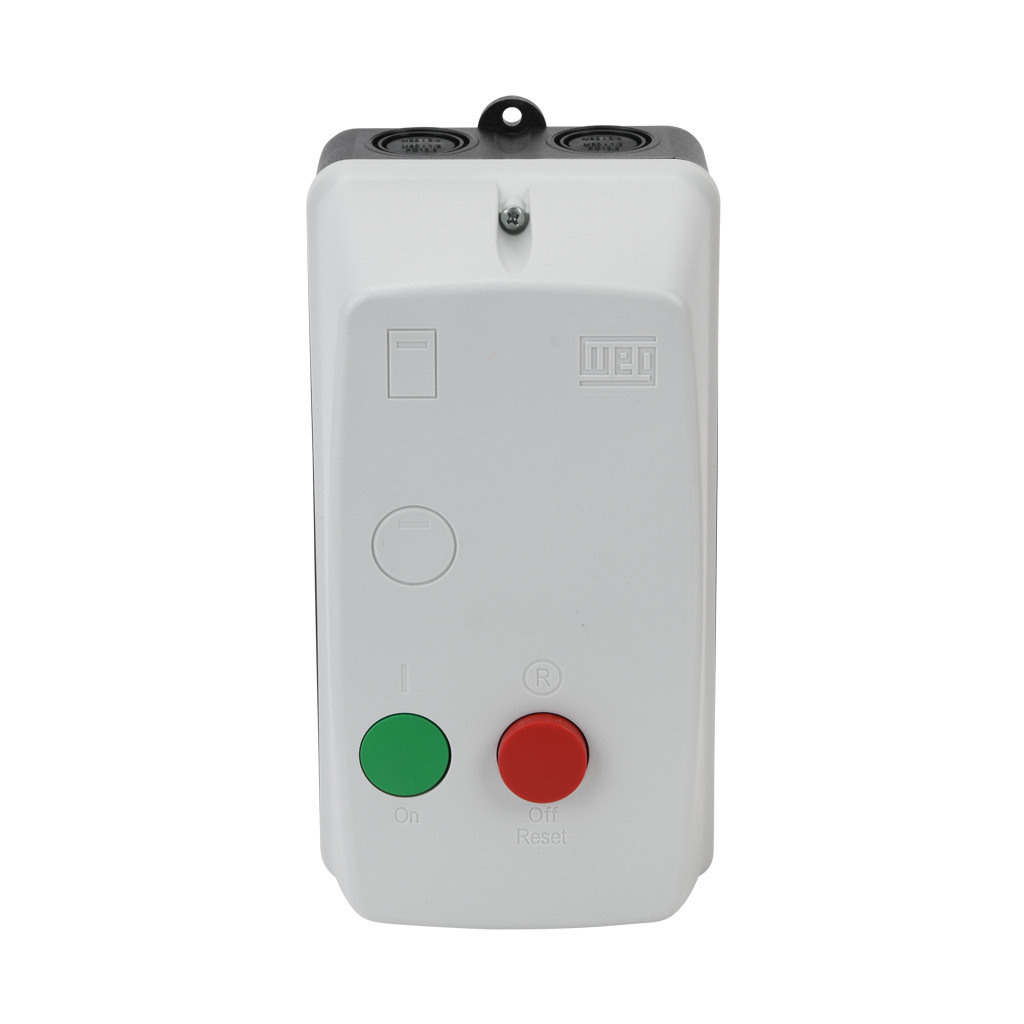

WEG PESWS-B18D15AX-RM65 14655539 Enclosed Starter, 1 Phase, 18A Rated, 10-15 A Range, On/Off Control, Plastic Crate, 120V50/60HZ
Item: BF6PGG
Model: PESWS-B18D15AX-RM65
25 In Stock
Ships within 2 days via
£179.39/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Assembly Method | Plastic Crate |
|---|---|
| Assembly Method (start Key) | Plastic Crate |
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Connection Type | Screw Terminal |
| Control Voltage | 120V |
| Enclosure Type | NEMA 4/4X , NEMA 4X |
| Frequency | 60/50 Hz |
| Full Load Amperage Range | 10-15.A |
| Horsepower Rating | 2 hp |
| Hp | 3/4 hp, 2 hp |
| Includes | Start, Stop And Reset Pushbuttons |
| Mounting | Wall |
| Number Of Poles | 2 |
| Overload Relay | 10-15A |
| Overload Type | Bi-Metallic |
| Phase | 1 |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Rated Current | 18A |
|---|---|
| Rated Operational Voltage | 600V |
| Sccr Rating | 5 kA |
| Series | PESWS Series |
| Start Type | Direct Single Phase |
| Starter Type | Non Combination |
| Trip Class | Class 10 |
| Voltage Rating | 600V AC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Control Devices | A On Off Button |
| Degree Of Protection | NEMA 4X |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| no. of phases | 1 |
| over load | 10-15A |
| rated amps (ac-3) | 18A (CWB18) |
| Reference | PESWS |
| Starters Complements | Does Not Contain |
Product Details
Shipping Information
| Height | 21.9 |
|---|---|
| Length | 11.26 |
| Width | 11.4 |
| Country Of Origin | BR |
|---|---|
| Weight | 0.999000 |
