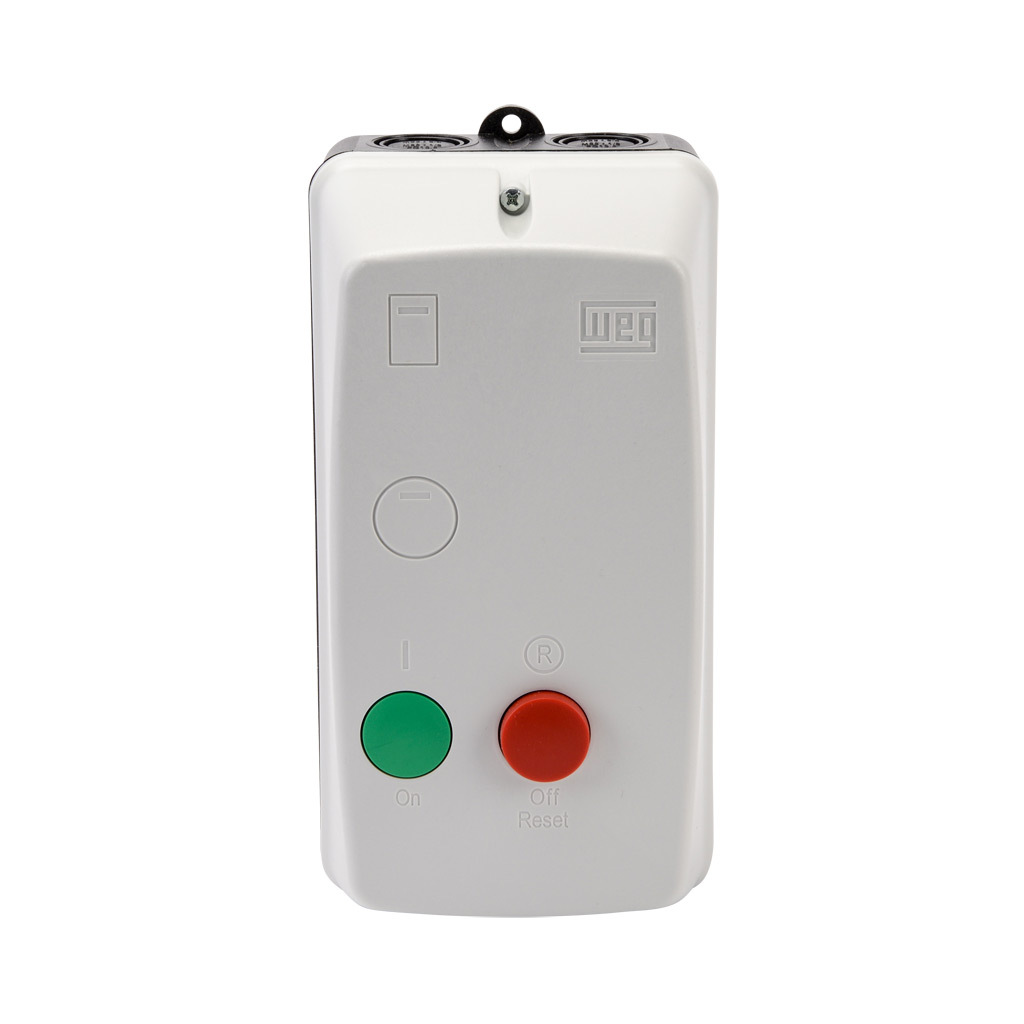

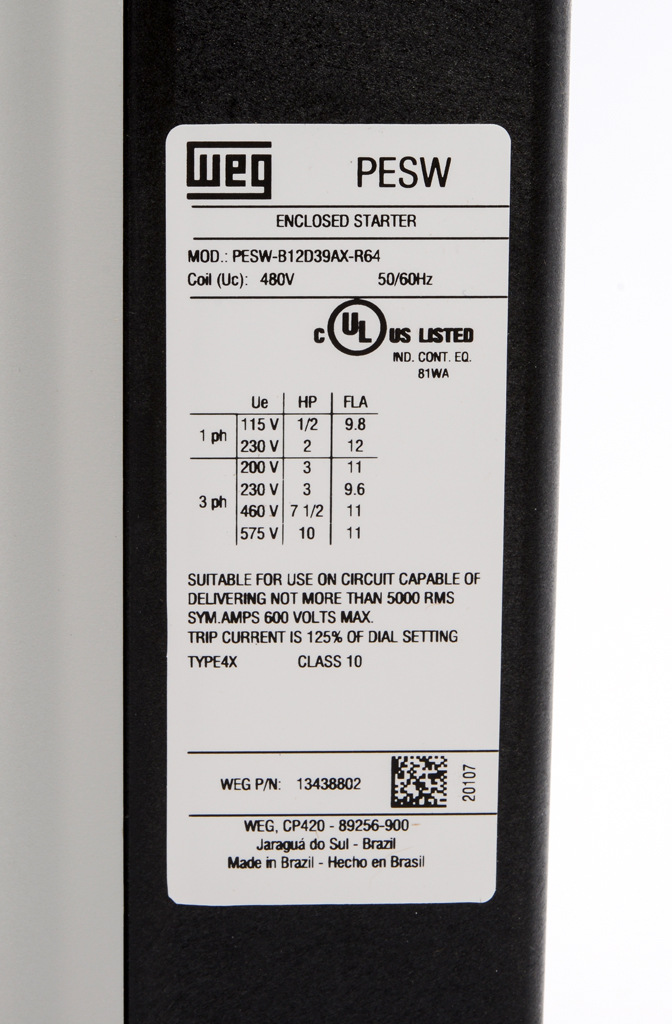

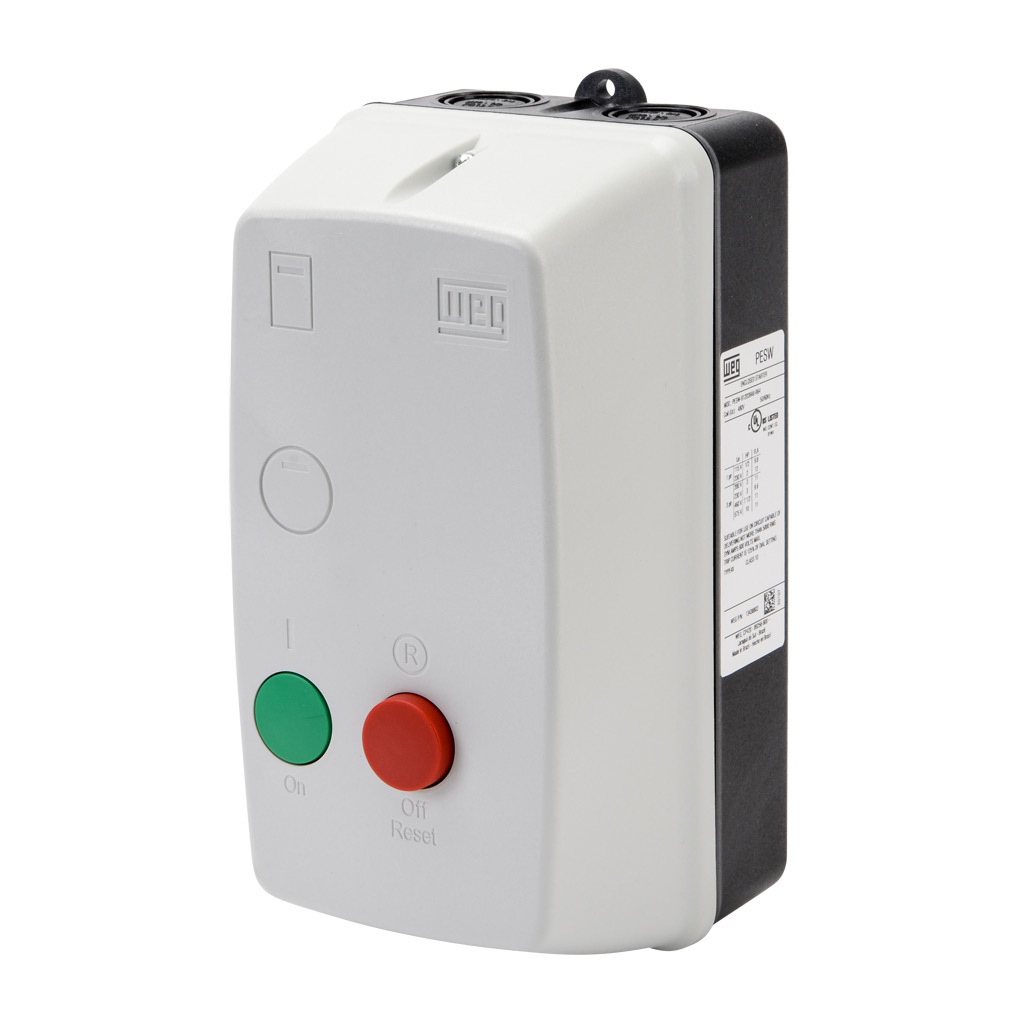

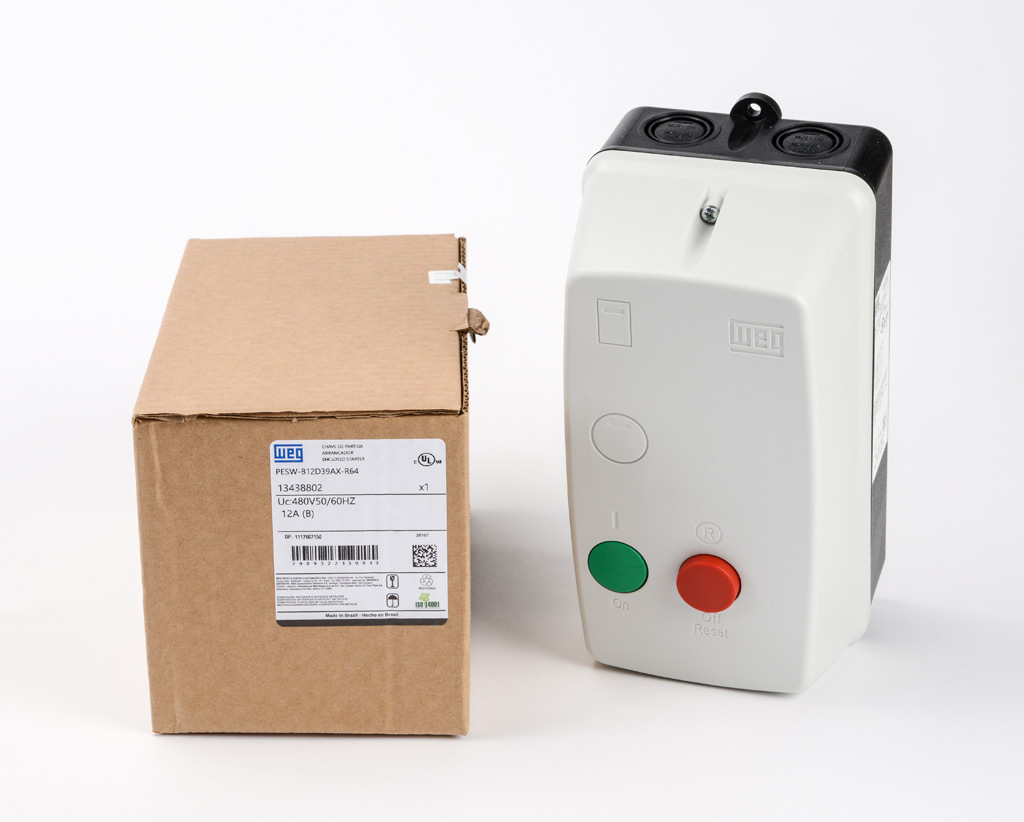

WEG PESW-B12D39AX-R64 13438802 Enclosed Starter, 3 Phase, 12A Rated, 8-12.5 A Range, On/Off Control, Plastic Crate, 480V50/60HZ
Item: BD2TZX
Model: PESW-B12D39AX-R64
In Stock
Get it by Wednesday, Apr 15
3/3/7.5/10 hp
£290.18/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 12A |
|---|---|
| Assembly Method | Plastic Crate |
| Assembly Method (start Key) | Plastic Crate |
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 480V AC |
| Connection Type | Screw Terminal |
| Control Voltage | 480V |
| Enclosure Type | NEMA 4/4X , NEMA 4X |
| Frequency | 60/50 Hz |
| Full Load Amperage Range | 8-12.5A |
| Hp | 3 hp, 7 1/2 hp, 10 hp |
| Hp Rating | 7 1/2 hp |
| Includes | Start, Stop and Reset Pushbuttons |
| Mounting | Wall |
| Number Of Poles | 3 |
| Overload Relay | 8-12.5A |
| Overload Type | Bi-Metallic |
| Phase | 3 |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Rated Current | 12A |
|---|---|
| Rated Operational Voltage | 600V |
| Sccr Rating | 5 kA |
| Series | PESW Series |
| Start Type | Direct Three Phase |
| Starter Type | Non Combination |
| Trip Class | Class 10 |
| Voltage | 200/230/460/575V AC |
| Voltage Rating | 600V AC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Control Devices | A On Off Button |
| Degree Of Protection | NEMA 4X |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| no. of phases | 3 |
| over load | 8-12.5A |
| rated amps (ac-3) | 12A (CWB12) |
| Reference | PESW |
| Starters Complements | Does Not Contain |
Product Details
Magnetic Motor Starter
Shipping Information
| height | 15.24 |
|---|---|
| length | 29.46 |
| width | 16.51 |
| country of origin | BR |
|---|---|
| weight | 1.026000 |
