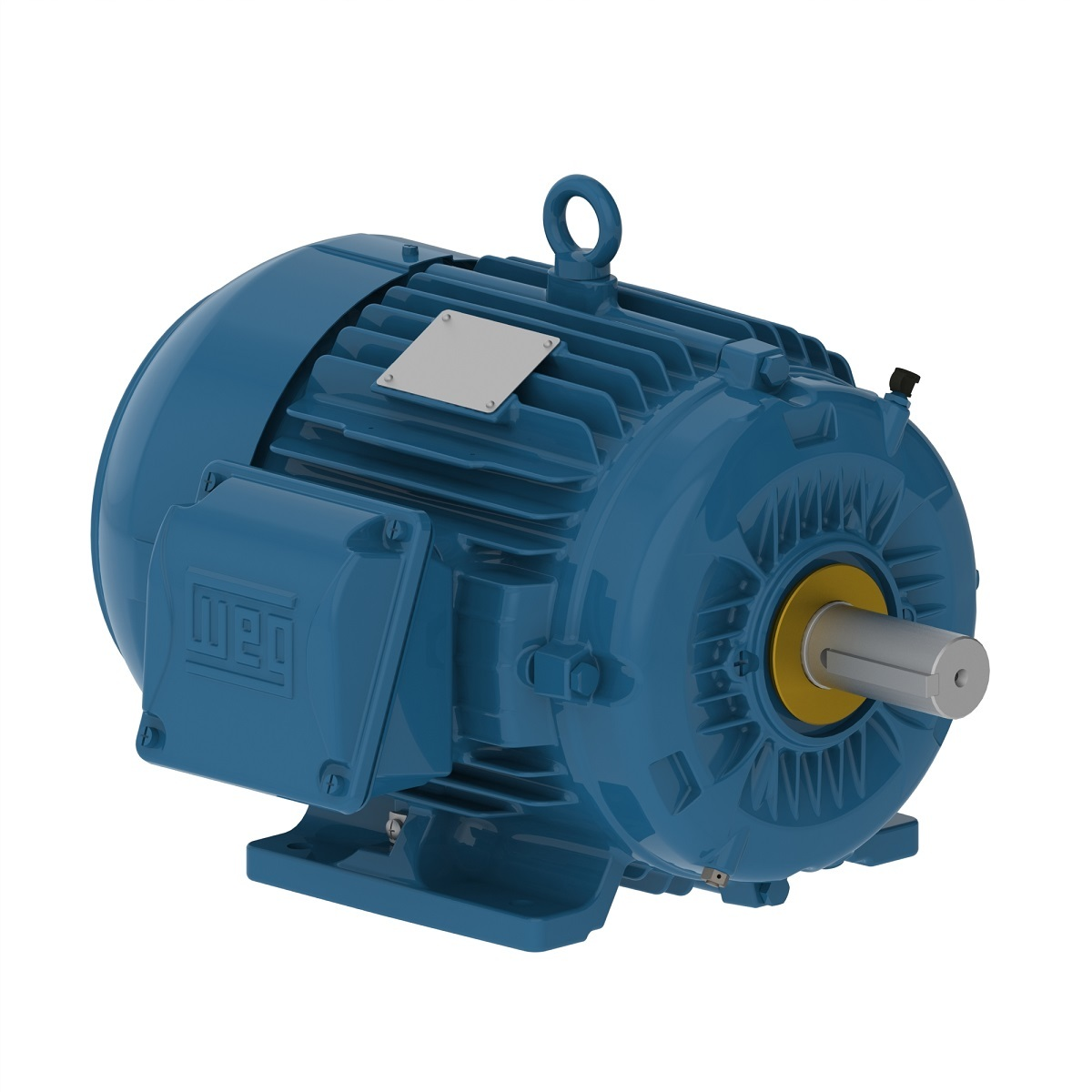

WEG 00736ST3HIE213T-W22 12603171 Severe Duty Motor, 7.5 HP, 2 Poles, 213/5T Frame, 3 Phase, 575 V, 60 Hz, IC411-TEFC, Foot Mounted

Item: BB4ZHT
Model: 00736ST3HIE213T-W22
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£2057.43/unit (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Breakdown Torque 290%
Cold Locked Rotor Time 39 sec.
Connection Cables Quantity 3
Design B
Drain Type T, Threaded
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency @ 100% 89.5%
Efficiency @ 50% 87.5%
Efficiency @ 75% 89.5%
Efficiency At 1 % 87%
Efficiency At 50 % 75%
Efficiency At 75 % 83%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Conductive Plastic , Plastic
Flange Without
Flange Type Without
Foot Flatness (0.005 Pol) 0.127 mm , 0.127 mm
Frame 213/5T
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 7.01A
Grounding Lugs Double
Hot Locked Rotor Time 22 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Joints Seal Molykote
L. R. Amps 51.1A
L.r. Amperes 51.7A
Locked Rotor Time (cold) 39 sec.
Locked Rotor Time (hot) 22 sec.
Locked Rotor Torque 210%
Lrc 7.2X(Code H)
Main Terminal Box Hole 1"
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 0.4665 lbs.-sq. ft.
Moment Of Inertia (j) 0.4665 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3525 RPM
Mounting F-1 , Foot Mounted
No Load Amps 2.56A
No. Of Poles 2
Noise 72 dBA
Noise Level 68 dBA
Output 7 1/2 hp
Output Hp 7 1/2 hp
Output Rating 7 1/2 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 202E (ISO 12944-C4)
Phase 3
Power Factor 75%
Power Factor 50% 0.74
Power Factor 75% 0.83
Power Factor At 1 % 89.5
Power Factor At 50 % 87.5
Power Factor At 75 % 89.5
Power Factor_100% 0.86
Rated Current 7.18A , 7.1A
Rated Speed 3525 RPM
Rated Torque 11.2 lbs.-ft.
Rated Voltage 575V , 575V AC
Regreasing System Stainless Steel, At Drive End And Non Drive End , Stainless Steel, At Drive End And Non-Drive End
Rotation CW/CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.08%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 11 lbs.-ft.
Tropicalized Painting According To Ieee-841 (96H)
Voltage 575V AC
Cold Locked Rotor Time 39s
De Bearing Seal Inpro/Seal
Degree Of Protection IP56
Enclosure Rating IC411
Grade Grade 1010/20
Grounding Lugs Type Double
l. r. amps 51.7A
locked rotor time (hot) 22s
Material Carbon Steel
Nde Bearing Seal Inpro/Seal
Output Rating 5.5 kW
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Standard Logo sae.png
Voltage 575V

Product Details

General Purpose Motor

Shipping Information

height 77.98
length 115.06
width 85.09
country of origin US
weight 77.850000
